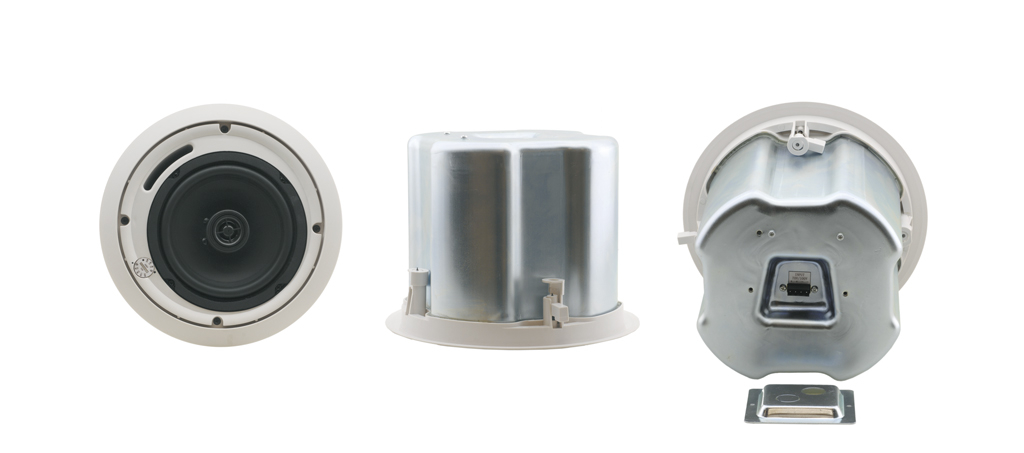

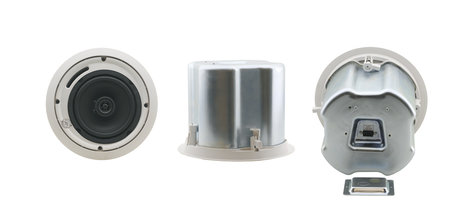

Kramer GALIL-6-C(PAIR) 6.5" Closed-Back 2-Way Ceiling Speakers

The Kramer Galil 6-C (formerly SPK-C612) Closed-back Ceiling Speaker features a multi-tap power transformer for selecting 8Ohms (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

Applications

• Conference rooms
• Boardrooms
• Classrooms
• Hotels
• Restaurants

Includes

• Installation bracket
• safety cord attached to grill
• ceiling mounting kit
• cutout template

Features

• Type: 2-way coaxial speaker
• Woofer: 6.5” polypropylene cone
• Tweeter: 0.5” Mylar dome
• Impedance: 8Ohms
• Power Handling: 30W RMS, 80W continuous program
• Transformer Taps: 70V: 30W/15W/7.5W/3.7W/Off (Lo-Z);100V: 30W/15W/7.5W/Off (Lo-Z)
• UL 1480 & 2043 Approved

Specifications

• Frequency Response: 80Hz to 20kHz @ -10dB, 95Hzto 20kHz @ ±3dB
• Woofer: 6.5” (165mm) polypropylene with rubber surround
• Tweeter: 0.5” (13mm) Mylar dome
• Impedance: 8Ohms (transformer tap in off position)
• Transformer Taps: 70V – 3.7W/7.5W/15W/30W/Off(Lo-Z), 100V – 7.5W/15W/30W/Off (Lo-Z)
• Sensitivity: 87dB SPL, 1W @1m
• Max SPL: Continuous: 100.7dB, peak: 103.7dB
• Power Handling: 30W RMS, 80W continuous program
• Crossover Frequency: 9.2kHz
• Coverage Angle: 101°
• Directivity Factor (Q): 7.5 averaged 1kHz to10kHz
• Directivity Index (DI): 8.6dB averaged 1kHz to10kHz
• Input Connector: Terminal block
• Materials: ABS bezel, aluminum grill, metal backcan
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: -40° to +70°C (-40° to158°F)
• Humidity: 10% to 90%, RHL non-condensing
• Weight Per Single Speaker: 2.85kg (6.28lbs) approx.
• Shipping Weight (for pair): 8kg (17.64lbs) approx.
• Dimensions:
  • External diameter: 25.1cm (9.88")
  • Cutout diameter: 22.4cm (8.82")
• Installation Clearance: Mounting depth: 19.6cm (7.72")
