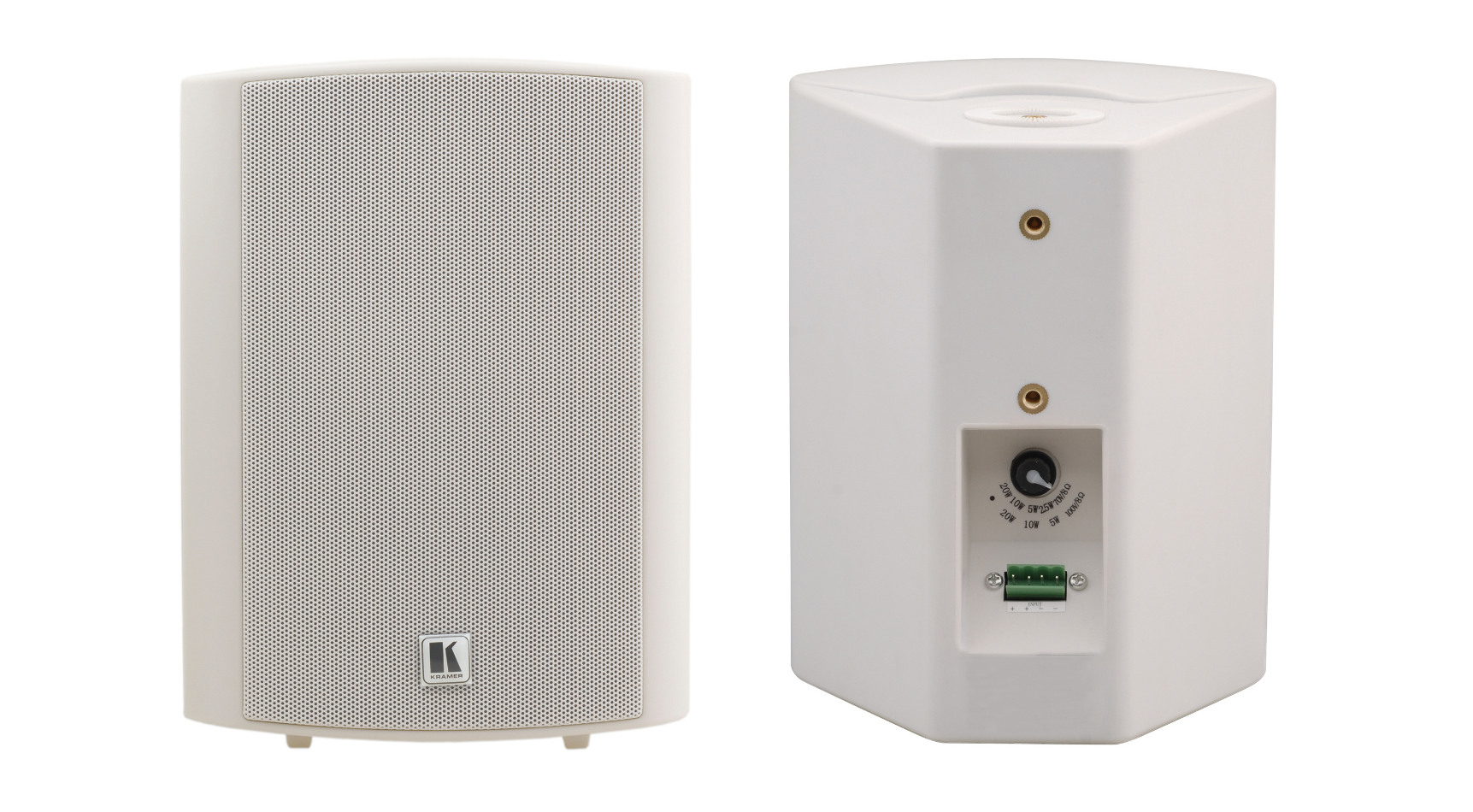

Kramer Galil 5-O 5.25" On-Wall 2-Way Speakers

The Kramer Galil 5-O On-Wall Speaker features a multi-tap power transformer for selecting 8Ohms (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

Applications

• Conference rooms
• Boardrooms
• Classrooms
• Hotels
• Restaurants

Includes

• 2 mounting brackets (including 4 knobs and 4 mounting screws)

Features

• Woofer: 5.25” polypropylene cone
• Tweeter: 0.5” Mylar dome
• Impedance : 8Ohms
• Power Handling - 30W RMS, 80W continuous program
• Transformer Taps - 70V – 20W/10W/5W/2.5W/Off (Lo-Z), 100V – 20W/10W/5W/Off(Lo-Z)

Specifications

• Frequency Response: 80Hz to 20kHz @-10dB, 100Hzto 20kHz @±3dB
• Woofer: 5.25” (133mm) polypropylene cone
• Tweeter: 0.5” (13mm) Mylar
• Impedance: 8Ohms (transformer tap in off position)
• Transformer Taps: 70V – 20W/10W/5W/2.5W/Off(Lo-Z), 100V – 20W/10W/5W/Off (Lo-Z)
• Sensitivity: 89dB 1W @1m
• Max SPL: Continuous: 103dB, peak: 106dB
• Power Handling: 30W RMS, 80W continuous program
• Crossover Frequency: 7.2kHz
• Directivity Factor (Q): 4.0, averaged 1kHz to10kHz
• Directivity Index (DI): 6.0 dB averaged 1kHz to10kHz
• Input Connectors: Terminal blocks
• Materials: Frame, grill and brackets steel;cabinet ABS
• Operating Temperature: 0° to +40°C (32° to104°F)
• Storage Temperature: -40° to +70°C (-40° to158°F)
• Humidity: 10% to 90%, RHL non-condensing
• Weight Per Single Speaker: 2kg (4.4lbs) approx.
• Weight with Mounting Kit: 2.4kg (5.3lbs) approx.
• Shipping Weight (For Pair): 4.8kg (10.6lbs)approx.
• Dimensions
  • 18.5cm x 16.5cm x 24.9cm (7.28” x 6.5” x 9.8”), W, D, H
• Dimensions with mounting brackets:
  • 18.5cm x 16.7cm x 27cm (7.28” x 6.6” x 10.6”), W, D, H
• Installation Clearance:
  • Front panel to wall (with mounting bracket): 21cm (8.2”)
  • Back panel to wall (with mounting bracket): 4.5cm (1.8”)
• Options: BCP-2S speaker cable
