Kramer GALIL-4-C(PAIR) 4" Closed-Back 2-Way Ceiling Speakers

OUR PART #: GALIL-4-C-W MFR #: 82-000055

Copied to clipboard

The Kramer Galil 4-C Closed-back Compact Ceiling Speaker features a multi-tap power transformer for selecting 8? (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. The Kramer Galil 4-CO open-back version is also available. ... ...Read more

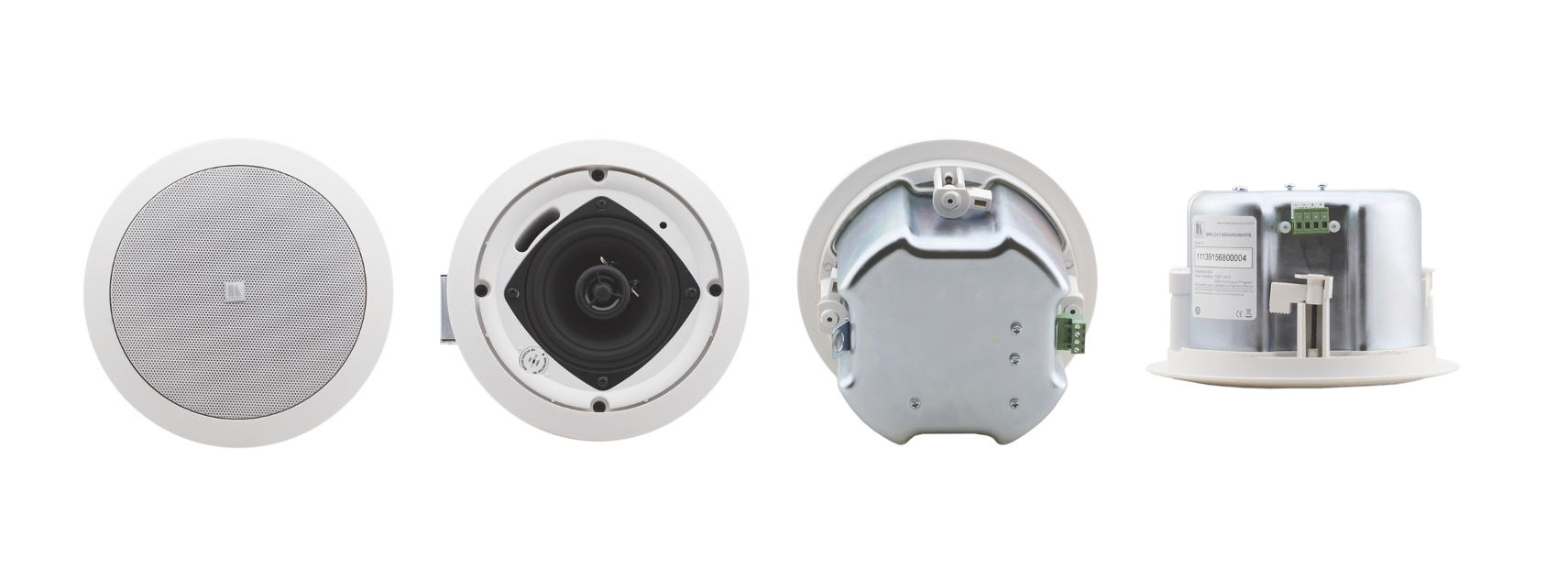

Kramer GALIL-4-C(PAIR) 4" Closed-Back 2-Way Ceiling Speakers Image 1
Kramer GALIL-4-C(PAIR) 4" Closed-Back 2-Way Ceiling Speakers Image 2
Kramer GALIL-4-C(PAIR) 4" Closed-Back 2-Way Ceiling Speakers
Our Price: $260.00
List Price: $325.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Kramer Galil 4-C Closed-back Compact Ceiling Speaker features a multi-tap power transformer for selecting 8? (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. The Kramer Galil 4-CO open-back version is also available.

Applications

  • Conference rooms
  • Boardrooms
  • Classrooms
  • Hotels
  • Restaurants

Includes

  • Speakers (1 pair)
  • Installation bracket
  • Ceiling mounting kit
  • Cutout template
  • Safety cord attached to grill
  • User manual

Features

  • Type: 2-way coaxial speaker
  • Woofer: 4” polypropylene cone
  • Tweeter: 0.5” Mylar dome
  • Impedance: 8O
  • Power Handling: 30W RMS, 80W continuous program
  • Transformer Taps: 70V: 30W/15W/7.5W/3.7W/Off (Lo-Z); 100V: 30W/15W/7.5W/Off (Lo-Z)
  • UL 1480 & 2043 Approved

Specifications

  • Frequency Response: 85Hz to 20kHz @-10dB, 100Hzto 20kHz @±3dB
  • Woofer: 4” (103mm) polypropylene with rubber surround
  • Tweeter: 0.5” (13mm) Mylar
  • Impedance: 8? (transformer tap in off position)
  • Transformer Taps: 70V – 30W/15W/7.5W/3.7W/Off(Lo-Z), 100V – 30W/15W/7.5W/Off (Lo-Z)
  • Sensitivity: 85dB SPL, 1W@1m
  • Max SPL: Continuous: 95dB, peak: 97dB
  • Power Handlnig: 30W RMS, 80W continuous program
  • Crossover Frequency: 6kHz
  • Coverage Angle: 90°
  • Directivity Factor (Q): 4.2 averaged 1kHz to10kHz
  • Directivity Index (DI): 6.2dB averaged 1kHz to10kHz
  • Input Connector: Terminal block
  • Materials: ABS bezel, aluminum grill, metal back
  • Operating Temperature: 0° to +40°C (32° to104°F)
  • Storage Temperature: -40° to +70°C (-40° to158°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • Weight Per Single Speaker: 1.75kg (3.9lbs) approx.
  • Shipping Weight (For Pair)
    • 6.1kg (13.5lbs) approx.
  • Dimensions:
    • External diameter: 19.5cm (7.68")
    • Cutout diameter: 16.7cm (6.57")
  • Installation Clearance: Mounting depth: 10.7cm (4.2”)
  • Color: White
