DigiTech Obscura
Altered Delay Effects PEdal

OUR PART #  OBSCURA

Our Price: $149.95
List Price: $229.95
You save 35%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

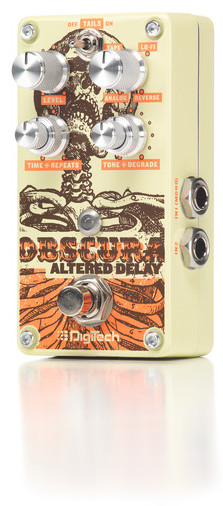

The DigiTech Obscura Altered Delay effects pedal features four delay types that can be darkened, degraded, and distorted on the fly with the stacked Tone and Degrade controls. Combine these controls with the Obscura's Repeat/Hold feature and lose yourself in long, trippy repeats or backwards-manipulated sonic mayhem.

In addition to its Tone and Degrade controls, the Obscura features independent Level, Delay Mode and stacked Time and Repeats controls. Complimenting those versatile controls, the Obscura offers four excellent-sounding Analog, Tape, Lo-Fi, and Reverse types, Tap Tempo mode with Beat Divisions, Stereo Inputs/Outputs, a Delay Tails On/Off Switch and True Bypass circuitry.

The DigiTech Obscura is compact in size, features a vacuum-style footswitch, and uses a 9V DC power supply, allowing you to easily integrate it into your existing pedalboard.

DigiTech Obscura Includes:

  • Obscura Altered Delay Pedal
  • StompLock™ - Fits over the Obscura's control knobs to protect your finely-tuned settings from drops, bumps and kicks.
  • Die cut Hook-and-loop Pedalboard Pad - A high-density mounting pad for stick-and-stay, semi-permanent mounting of the Obscura on pedalboards. It is also easily unmounted for pedalboard reconfiguration.
  • Online Warranty Registration Information Card

DigiTech Obscura Features:

  • Four Unique Delay Types:
    • Analog
    • Tape
    • Lo-Fi
    • Reverse
  • Tap Tempo with Beat Divisions
  • Repeat/Hold
  • Easy Access Delay Tails On/Off Switch - Enables buffered bypass which allows Delay signal to continue being heard after the effect is bypassed
  • True Stereo I/O
  • True Bypass circuitry preserves your tone in bypass
  • High-Voltage operation for uncompromised signal quality

DigiTech Obscura Specifications:

  • Input: Separate Left and Right 1/4" Unbalanced(Tip-Sleeve)
  • Input Impedance: Effect on: >1 MOhm (stereo), >500 kOhm (mono); Effect off: True hardwire bypass
  • Output: Separate Left and Right 1/4" Unbalanced(Tip-Sleeve)
  • Output Impedance: Effect on: 1 kOhm; Effect off: True hardwire bypass
  • Controls: Level, Delay Type, Time, Repeats, Tone, Degrade, Delay Tails On/Off, Effect On/Off
  • Switches: Soft Click, Vacuum Style Footswitch; Reverb Tails On/Off Toggle Switch
  • Power Requirements: 9 VDC external power supply (required)
  • Power Consumption: 675 mW (< 75 mA @ 9 VDC)
  • Current Draw: 75 mA (typical at 9 VDC)
  • DigiTech Power Supply Model: PS0913DC-01 (see "Accessories" tab for recommended/available universal 9V DC power supply)
  • Power Supply Output: 9 VDC 1.3 A
  • Dimensions (LxWxH): 4.40" x 2.65" x 2" (11.18 x 6.73 x 5.08 cm)
  • Weight: 1 lb (0.453 kg)
