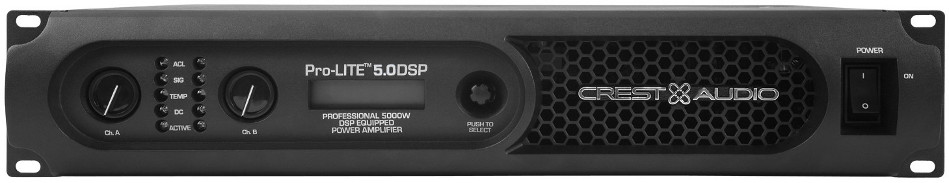

Crest Pro-LITE 5.0 DSP
825W/Ch @ 8 ohms Power Amplifier with DSP

OUR PART #:  PRO-LITE-5.0-DSP

The Crest Pro-LITE™ 5.0 DSP power amplifier features a lightweight, efficient design with high power and stable performance - plus built-in DSP.
Learn More
Our Price: $964.60
List Price: $1,378.00
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Crest Pro-LITE 5.0 DSP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Crest Pro-LITE™ 5.0 DSP power amplifier features a lightweight, efficient design with high power and stable performance - plus built-in DSP. It is designed with an advanced high-speed class D design with a switch-mode power supply that reduces weight while increasing reliability, thermal efficiency and output power in parallel, stereo and bridged modes.

The Crest Audio Pro-LITE 5.0 DSP features an onboard digital signal processor that hosts a suite of delays (0-120ms per channel), adjustable crossovers, adjustable limiters, parametric EQ, HF driver EQ, four user preset storage locations, and stereo/mono operation with lockable security settings. The front-panel LCD screen allows users to quickly identify and assign presets, while the USB port allows users to load presets and enables external setup and adjustment.

The Pro-LITE DSP section also integrates Waves® MaxxBass® Bass Extension technology, which uses psycho-acoustics to create precise harmonics that give the perceived effect of boosting low frequencies in the mix. The level of MaxxBass effect can be adjusted from 0% to 100%.

Pro-LITE Series power amps are built with heavy-duty circuit boards and added emphasis on important components like extra-large capacitors and inductors that optimize 2-ohm operation. The onboard protection suite includes Crest Audio's proprietary ACL™ Automatic Clip Limiting circuitry, which prevents the amplifier from sending potentially damaging clipped signals to the loudspeakers, as well as DC, Temp, Signal and Active safeguards, all referenced on the front panel with LED indicators. The Pro-LITE Series is backed by a free five-year extended warranty.

Crest Pro-LITE 5.0 DSP Specifications:

  • Rated Watts:
    • 2 channels x 2 ohms: 3300 watts 20ms repetitive burst / 2600 watts 1% THD both channels driven @ 1kHz.
    • 2 channels x 4 ohms: 2025 watts 20ms repetitive burst / 1725 watts 1% THD / 1500 watts 0.15% THD, both channels driven @ 1kHz.
    • 2 channels x 8 ohms  1175 watts 20ms repetitive burst / 1000 watts 1% THD / 1200 watts 0.15% THD, both channels driven @ 1kHz.
  • Minimum Load Impedance: 2 ohms
  • Maximum RMS Voltage Swing: 105 volts
  • Frequency Response: 20Hz - 25kHz; +/-0.5 dB at 1W
    • 20Hz - 20kHz 2ch x 2 ohms: <0.5% @ 2250 watts 20Hz to 4kHz, decreasing to 1650 watts @ 20kHz, both channels driven.
    • 20Hz - 20kHz 2ch x 4 ohms: <0.15% @ 1400 watts 20Hz to 20kHz, both channels driven.
    • 20Hz - 20kHz 2ch x 8 ohms: <0.15% @ 860 watts 20Hz to 20kHz, both channels driven.
  • Input CMRR: > - 75dB @ 1 kHz
  • Voltage Gain: x 40 (+32dB)
  • Crossover: 100Hz switchable 2nd order high pass and 3rd low pass per channel.
  • Crosstalk: > -60dB @ 1kHz @ 700 watts power @ 8 ohms.
  • Hum and Noise: > -105dB, "A" weighted referenced to rated power @4 ohms.
  • Slew Rate: > 12V/µs
  • Damping Factor (8 ohms): > 210:1 @ 20Hz -1kHz @ 8 ohms
  • Phase Response: +5 to -91 degrees from 20Hz to 20kHz
  • Input Sensitivity: 1.95 volts +/- 3% for 1kHz 4ohm rated power, 1.83 volts +/- 3% for 1kHz 2 ohm rated power
  • Input Impedance: 20 kilohms, balanced and 10 kilohms unbalanced.
  • Current Draw:
    • @ 1/8 in VA (watts): 1435 (890) @ 2 ohms, 920 (525) @ 4 ohms, 625 (335) @ 8 ohms
    • @ 1/3 in VA (watts): 3050 (2155) @ 2 ohm, 1880 (1200) @ 4 ohms, 1200 (715) @ 8 ohms
  • Idle Consumption: 195VA, 90 watts.
  • Cooling: 3 temperature dependent variable speed fans.
  • Controls: 2 front panel attenuators, crossover select switch for HPF, Normal and LPF
  • Indicator LEDs: Five LED indicators per channel: Active, Signal, DDT, Temperature and DC
  • Protection: Thermal, DC, subsonic, incorrect loads, under and overvoltage
  • Connectors:
    • Inputs: Dual combination 1/4" XLR
    • Outputs: Dual 1/4" thru, one 2-pin & one 4 pin twist-lock connector
  • Construction: 0.062" thick aluminum
  • Dimensions: 3.5" x 19" x 17" behind front panel + 0.6" for handle
  • Weight:
    • Net*: 13.6 lbs (6.2 kg)
      *Measurement does NOT take power cord into account.
    • Gross: 17.4 lbs (7.9 kg)
  • NOTES:
    • Rated power readings made with BW: 20 Hz to 22 kHz. All power measurements made @ 120 VAC or 240VAC.
    • 2 ohm steady state sine wave power is time limited by circuit breaker.
    • Bridge operation is NOT possible.
