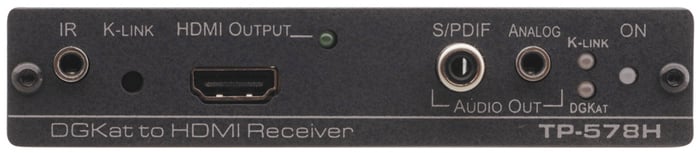

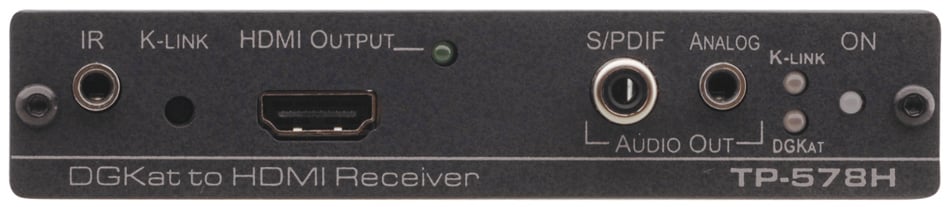

Kramer TP-578H
HDMI, Audio, Data Over DGKat Twisted Pair Receiver with Power Supply

OUR PART #:  TP-578H

The Kramer TP-578H DGKat twisted pair receiver for HDMI...
Learn More
Our Price: $396.00
List Price: $495.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-578H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer TP-578H DGKat twisted pair receiver for HDMI, IR and control signals receives a DGKat twisted pair signal from a compatible Kramer DGKat transmitter (such as a TP-577VH) and decodes it into HDMI, balanced and unbalanced stereo, S/PDIF digital audio, IR and RS-232 signals.

Kramer TP-578H Features:

  • Includes Power Supply
  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
  • HDTV Compatible
  • HDCP Compliant
  • HDMI Support - x.v. Color™, 3D and 7.1 multi-channel audio
  • DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances
  • K-Link™ - Kramer's technology for controlling the device from a remote controller and passing data to external devices
  • PowerConnectPlus - A single connection to the transmitter or the receiver powers both units. The higher voltage PowerConnectPlus also powers regular PowerConnect devices via auto-negotiation
  • Configurable External Control
  • Analog and Digital Audio De-Embedding
  • Indicators - LEDs for mirroring
  • System Range:
    • Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable
    • Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable
    • Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable
  • Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC-DGKat623 or BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends ofthe shield are soldered to ground
  • Controls - IR data transceiver
  • Size - Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1RU rack space with the optional RK-3T rack adapter

Kramer TP-578H Specifications:

  • Inputs: DGKat twisted pair on an RJ-45 connector.
  • Output: HDMI, unbalanced stereo audio on a 3.5mm mini jack, balanced stereo audio on a terminal block, S/PDIF on an RCA connector.
  • Power Consumption: 12V DC, 200mA.
  • Dimensions (WxDxH): 4.7" x 2.76" x 0.94" (12 x 7 x 2.4 cm)
  • Weight: Approx. 0.66 lb (0.3 kg)
19" 1RU Rack Adapter for 3 TOOLSâ¢
Kramer RK-3T 19" 1RU Rack Adapter for 3 TOOLS™
Rack adapter for mounting 3 Kramer TOOLS™ (extruded or regular) into a 19" 1RU rack space.
