Christie Digital Brio Team+
Wireless Access Point-to-Point Collaboration Solution

OUR PART #:  148-003104-01

For high-security environments where access to a local area network is restricted...
Learn More
Our Price: $3,350.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

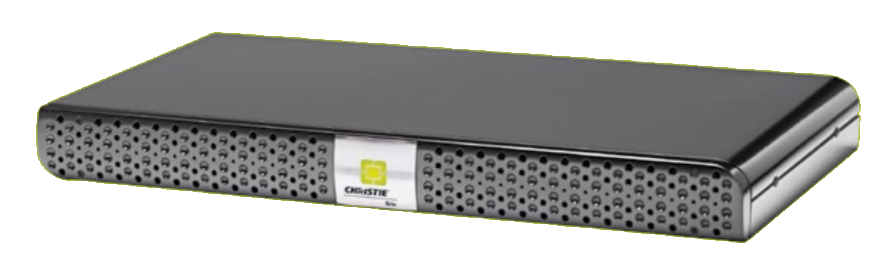

Christie Digital Brio Team+
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

For high-security environments where access to a local area network is restricted, Christie® Brio Team+ is a licensed option that offers the advantage of displaying original video content at native resolutions through DVI-D wired video inputs. The Team+ unit has an integrated wireless access point (WAP), supporting output sources of up to 2560 x 1600 at 30 Hz or 1920 x 1080 at 60 Hz with HDCP.

Christie® Brio is a network-enabled collaboration and presentation solution that allows multiple users to quickly share, edit and annotate multimedia content from their personal computing devices on meeting room displays. Content can also be shared between meeting rooms for multisite collaboration.

Christie Digital Brio Team+ Specifications:

  • Outputs:
    • Dual DisplayPort: Up to 2560 x 1600 pixels per output
  • Inputs:
    • Dual DVI-D: Support for up to 2560 x 1600 pixels per input (wired connection)
    • Up to 5 video from 640 x 480 to 1920 x 1080 encoded to H.264
    • 2 analog 3.5mm stereo audio
    • Up to 5 audio encoded to H.264
    • Support for HDCP (High-bandwidth Digital Content Protection)
    • 4 USB ports
  • Network:
    • Internal 2.4GHz wireless access point
    • IEEE 802.11 a/b/g/n standard
    • 2Tx / 2Rx MIMO
    • Up to 300 Mbps data rate
    • 64/128/152 bit WEP, WPA, WPA2, 802.1x, AES & TKIP
  • Protocols supported:
    • Airplay
    • MS network projector
    • Brio screen projector (for use with Android devices)
  • Encoding:
    • 2 high definition DVI-D inputs to L5 H.264 video streams @ 30 FPS
    • Up to 5 high definition L5 H.264 video streams @ 30 FPS
    • 2 stereo audio streams
    • Support for variable bitrate
  • Decoding:
    • Up to 5 high definition network video streams @ 30Hz
  • Power:
    • Voltage range: 100-240VAC (auto-ranging power supply)
    • Current: 2-4A (max)
    • Power consumption: 220W (max)
  • Dimensions: 17.4" W x 1.74" H x 9.5" D (442 x 44 x 241 mm)
  • Weight: 6.5 lbs (2.95 kg)
  • Chassis: 1RU form factor
  • Reliability:
    • MTBF: >50,000 hours of major modules
  • Regulatory:
    • CAN/CSA C22.2 No. 60950-1
    • UL 60950-1
    • IEC 60950-1 emissions
    • FCC CFR47, Part 15, Subpart B, Class A –unintentional radiators
    • EN55103-1 Class A audio, video, audio-visual equipment emission; EN55103-2 audio video, audio-visual equipment immunity; EN61000-3-2, EN61000-3-3
    • Directives: (EC) 2011/65/EU (RoHS); 2012/19/EU (WEEE); Regulation (EC) No. 1907/2006 (REACH)
    • Certification marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), Saudi Arabia, South Africa, Ukraine, Mexico, GoST-R (Russia) and/or Customs Union which includes Belarus, Kazakhstan, Russia, KC (Korea), S-Mark (Japan), C-Tick (Australia & New Zealand), Taiwan
  • Warranty:
    • Limited two years parts and labor
  • Manufacturing location:
    • Designed, manufactured and tested by Christie Digital Systems Inc. at their facility in Phoenix, Arizona, USA
  • Christie Part #: 148-003104-01
