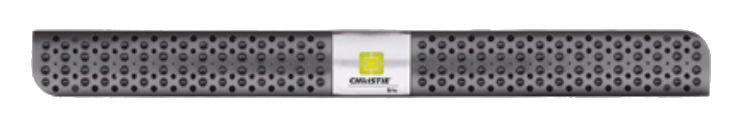

Christie Digital Brio Enterprise
Multiple Location Collaboration Solution

OUR PART #:  148-004105-01

When you need to collaborate securely and share high-quality content between multiple locations...
Learn More
Our Price: $3,995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Christie Digital Brio Enterprise
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

When you need to collaborate securely and share high-quality content between multiple locations, Christie® Brio Enterprise integrates smoothly into the local area network for access to Internet and network services. Any content from devices connected to Brio Enterprise units can be shared across all the displays in the same collaborative session regardless of geographical locations.

Brio Enterprise processes high-quality video with sources playing at full 1080p with HDCP support. Any content on a source device may be shown on-screen in a meeting. Specific configurations depend on the Christie Brio model and your own personal device. There is a content sharing solution for each device platform and operating system to support live content editing and to provide a full, live desktop capture.

Even in our digital age, information sharing beyond a single room has typically involved only a single source at a time, eliminating one of the key benefits of business and academic teamwork: being able to synthesize multiple sources of data into a single solution. When you need to collaborate securely and share high-quality content between multiple locations, Christie Brio integrates smoothly into a local area network for access to Internet and network services. Any content from devices connected to Christie Brio units can be shared across all the displays in the same meeting, classroom or lab. Regardless of geographic locations, everyone sees the same information at the same time. Christie Brio processes high-quality video with sources playing at full 1080p with HDCP support. It can also support future wireless transmission protocols by connecting a receiver to a wired input.

Christie Digital Brio Enterprise Specifications:

  • Outputs:
    • Dual DisplayPorts: Up to 2560 x 1600 pixels per output
  • Inputs:
    • Dual DVI-D: Support for up to 2560 x 1600 pixels per input (wired connection)
    • Up to 5 video from 640 x 480 to 1920 x 1080 encoded to H.264
    • 2 analog 3.5mm stereo audio
    • Up to 5 audio encoded to H.264
    • Support for HDCP (High-bandwidth Digital Content Protection)
    • 4 USB ports
  • Network:
    • Gigabit Ethernet: 1000 Mbps Ethernet, RJ-45 connector
    • Support for IGMPv2, IPv4, RTSP, SRTP, HTTP, TCP/IP
  • Protocols supported:
    • Airplay
    • MS network projector
    • Brio screen projector (for use with Android devices)
  • Encoding:
    • 2 high-definition DVI-D inputs to L5 H.264 video streams @ 30 FPS
    • Up to 5 high-definition L5 H.264 video streams @ 30Hz FPS
    • 2 stereo audio streams
    • Support for variable bitrate
  • Decoding:
    • Up to 5 high-definition network video streams @ 30Hz
  • Power:
    • Voltage range: 100-240VAC (auto-ranging power supply)
    • Current: 2-4A (max)
    • Power consumption: 220W (max)
  • Dimensions: 17.4" W x 1.74" H x 9.5" D (442 x 44 x 241 mm)
  • Weight: 6.5 lbs (2.96 kg)
  • Chassis: 1RU form factor
  • Reliability:
    • MTBF: >50,000 hours of major modules
  • Regulatory:
    • CAN/CSA C22.2 No. 60950-1
    • UL 60950-1
    • IEC 60950-1 emissions
    • FCC CFR47, Part 15, Subpart B, Class A –unintentional radiators
    • EN55103-1 Class A audio, video, audio-visual equipment emission; EN55103-2 audio video, audio-visual equipment immunity; EN61000-3-2, EN61000-3-3
    • Directives: (EC) 2011/65/EU (RoHS); 2012/19/EU (WEEE); Regulation (EC) No. 1907/2006 (REACH)
    • Certification marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), Saudi Arabia, South Africa, Ukraine, Mexico, GoST-R (Russia) and/or Customs Union which includes Belarus, Kazakhstan, Russia, KC (Korea), S-Mark (Japan), C-Tick (Australia & New Zealand), Taiwan
  • Manufacturing location: Designed, manufactured and tested by Christie Digital Systems Inc. at their facility in Phoenix, Arizona, USA
  • Warranty: Limited two years parts and labor
  • Christie Part #: 148-004105-01
