Canon RC-V100
Remote Controller for EOS C-Series Digital Cinema Cameras

OUR PART #:  9660B001

Our Price: $1,867.96
List Price: $1,999.00
You save 7%!
Write the first review.
Canon RC-V100
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

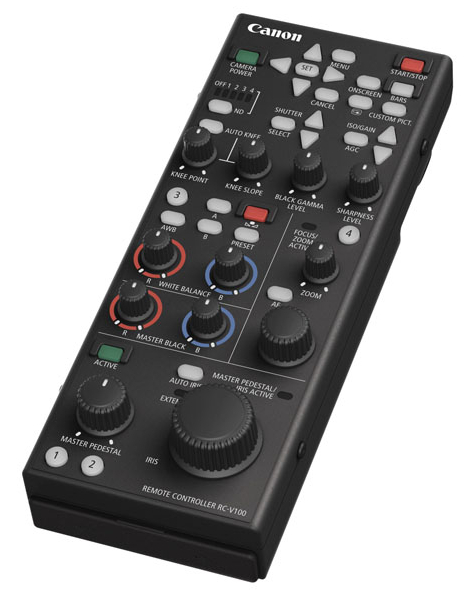

The versatile RC-V100 (also knowns as 9660B001) from Canon is their Remote Controller for EOS C-Series Digital Cinema cameras and the XF305/300/205/200 series of professional camcorders. This model provides full access to all important user functions - in addition to basic controls - start/stop, shutter/gain adjustments, zoom/focus/iris parameters, custom picture values, white balance, black gamma and more. This unit can also be used to adjust various menu settings.

It also features illuminated pushbuttons with audible feedback to confirm each setting change. A SETUP mode lets you customize a number of key rotary controls, as well as user procedures and operating modes. The RC-V100 is powered from the connected camcorder via a 15-foot (five-meter) cable. A USB port enables the unit's firmware to be updated to support future remote-control functions.

Canon RC-V100 Features:

  • Powerful remote control
  • Clear and simple operation
  • Extensive control
  • Intuitive layout for greater control
  • Firmware updates via USB connection

NOTE: Lens control not possible with PL-mount Cinema EOS cameras or manual lenses.

Canon RC-V100 Specifications:

Design Specification:

  • Model: Wired Remote Controller
  • Supply Voltage: DC 5.0V - 6.0V
  • Power Source: Via camera
  • Power Consumption: 0.25W (Max)
  • Connections available: REMOTE A Connector (stereo mini jack 3.5mm). USB connector (mini-B for service and update)
  • Cable Length: 5 M / 15 ft.
  • Maximum Dimensions (Wx H x D): 89 x 224 x 65mm (3.5 x 8.8 x 2.6 inch)
  • Weight  Approx.: 630g (1.4lb)
  • Operating Temperature Range: 0°C to +40°C (32°F to 104°F)

Control Options*:

  • Camera Power: On/Off
  • Recording Function: Start/Stop
  • REC Review: When Camera is in MEDIA mode
  • Colour Bars: On/Off when BARS selected
  • On Screen: Select
  • Cancel: Select
  • Menu: Access Camera Menu
  • Up/down/left and right SET buttons: Menu Control
  • ACTIVE button: Prevents accidental operation, depending on mode
  • Assign Button (1 - 4): Set/Select custom functions from camera
  • ND Filter Selection/Operation: C300/C300PL/C500/C500PL
  • KNEE: Auto Knee/Knee Point/Knee slope
  • Black Gamma Level: Set
  • White Balance (WB): AUTO/WB A, WB B/WB Set/WB Preset
  • Master Black: Set
  • Sharpness Level: Set
  • Focus: AF Select/Manual Focus adjust
  • Zoom: Zoom Operation
  • Iris: Auto Iris/Manual Iris adjust
  • Master Pedastal: Set
  • Shutter: Shutter Select/Shutter Speed adjust
  • ISO/Gain: Auto Gain select/Manual Gain/ISO select
  • Custom Picture Settings: Select
  • Supported Cameras: See individual Camera specification¹


  • Supported Cameras: ¹ Camera firmware update may be required
  • *Available Functions vary according to camera model and settings
