Radio Design Labs D-RC4RU
4-Channel Remote Control


Our Price: $100.70
List Price: $134.70
You save 25%! (Low Price Guarantee)
In Stock

The Radio Design Labs D-RC4RU is a wall-box mounted remote module designed to directly control an RDL RU-SX4A Audio Switcher Module. The RU-SX4A provides solid state switching of one of four balanced/unbalanced audio inputs to a single balanced/unbalanced audio output. The D-RC4RU connects directly to the power and SLAVE terminals of the RU-SX4A using a 3-pair cable (or a 6-conductor cable). The D-RC4RU may be used to directly control the RDL RU-VSX4 Video Switcher.

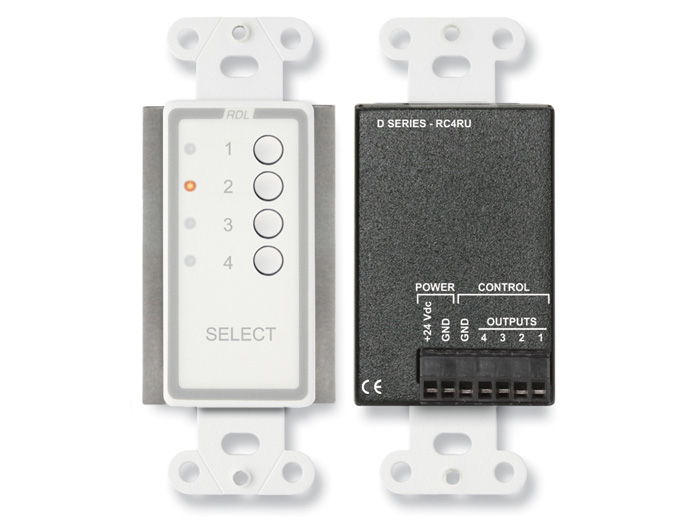

The front panel of the D-RC4RU features four push buttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other 3 buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED adjacent to each button shows which source is selected. There are 4 output terminals on the D-RC4RU. Each of these is an open-collector output, which is pulled to ground when the output is selected. For stereo installations, the D-RC4RU is capable of driving two RU-SX4As simultaneously.

In installations where ULTRASTYLE wall controls are preferred, use the RUC-4 Universal Remote Control.

Radio Design Labs D-RC4RU Features:

  • Remote Selection of 4 Audio Sources
  • Single-Button Selection for Each Source
  • Remote Selection of Balanced Audio Sources
  • 3-pair (or 6 conductor) Remote Wiring
  • Professional Aesthetic Appearance
  • Companion to other RDL Remote Controls
  • LED Indication

Radio Design Labs D-RC4RU Specifications:

  • Selectors (4): Momentary pushbuttons (1 for eachchannel)
  • Indicators (4): Red LEDs, (indicates channelselected)
  • Connections: Detachable terminal block; Interfacesdirectly with RDL RU-SX4A
  • Ambient Operating Environment: 0┬░ C to 55┬░ C
  • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
  • Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes
    • Cover plate available separately
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625 x 4.625 x 2.125 in.
  • Shipping Weight: 0.38 lbs.
  • WEEE weight: 0.23 lbs.
  • Tariff code: 8517.62.0050
