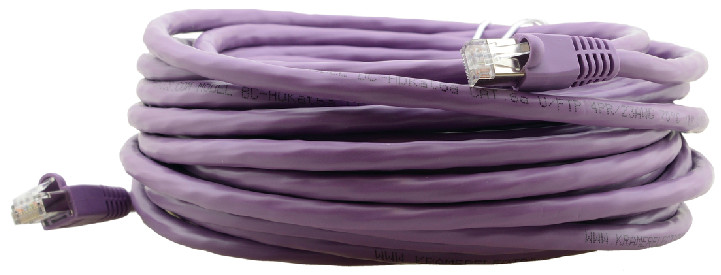

Kramer C-HDK6/HDK6-125
125 ft 4-Pair U/FTP 23AWG RJ-45 Cable for HDBaseT

OUR PART #:  C-HDK6/HDK6-125

Our Price: $52.00
List Price: $65.00
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer C-HDK6/HDK6-125
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Kramer's C-HDK6/HDK6-125 is an HDBaseT certified 4-pair U/FTP (unshielded around foiled twisted pair) cable designed as the ideal companion to Kramer's HDBaseT transmitter-receiver sets to provide optimum range and performance.

Kramer C-HDK6/HDK6 Features:

  • 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket
  • HDBaseT Tested & Certified
  • Optimized for HDBaseT Installations - Use with wide range of HDBaseT twisted pair digital transmitter-receiver sets

Kramer C-HDK6/HDK6 Specifications:

  • Construction:
    • Conductor Size: 23AWG bare solid copper
    • Outer Jacket Color: Purple (RAL-4001)
    • Total Wires: 8
    • Drain Wire: Solid 23AWG tinned copper
    • Overall Shield Material: Polyester aluminum tape
    • Conductor Color Code: White/blue, white/orange, white/green, white/brown
    • Min. Bend Radius: 35mm
  • Outside Diameter: 7.6mm nominal
  • Electrical:
    • Propagation Delay Skew: 45ns/100m max.
    • Impedance: 100 Ohms
    • DC Resistance: 73 Ohms/km (21Ohms/1000 ft) nominal
    • Max. Unbalanced Resistance: 2%
    • Capacitance: 1.2pF/m max
    • Temperature: -20° C to +70° C (-4° F to 158° F)
