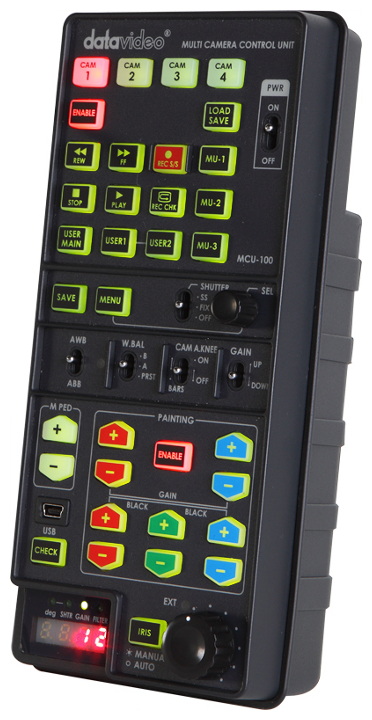

Datavideo Corporation MCU-100P
Hand-Held Multi Camera Control Unit for Panasonic Cameras

OUR PART #:  MCU-100P

Control up to 4 Panasonic video cameras remotely using the MCU-100P (Hand-Held) Multi-Camera Controller from Datavideo.
Learn More
Our Price: $2,000.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation MCU-100P
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Control up to 4 Panasonic video cameras remotely using the MCU-100P (Hand-Held) Multi-Camera Controller from Datavideo. The controller allows a distance of up to 1000 meters between the cameras and the MCU-100/200 using the included AD-1 Adapters. The interface between the controller & AD-1 is a RS-422 differential line. You can also use CAT-5e/6 cable up to 3280.84 feet (1000 meters).

Save tons of time adjusting cameras with the MCU-100/200 Camera Controller. Imagine this — You’re almost ready to shoot. It’s time to make sure each camera is configured properly. But wait, how will you check the cameras’ outputs on the multi-view and adjust them at the same time? If you’re by yourself, you can look at your multi-view monitor, then walk to the camera, make an adjustment, and walk back to the multi-view. You COULD do this many times until all the cameras match each other perfectly on the screen. After the fifth trip to your sixth camera, you’re finally done, but you’ve already spent at least an hour doing adjustments. But what if you have a crew? You could have one of your staff members walk to each camera while you stay at the multi-view, giving him or her directions by intercom. That would be a bit faster. BUT wouldn’t it be GREAT if you could do all the camera adjustments yourself without having to leave your multi-view monitor? Now you can, with the MCU-100/200 Camera Controller.

MCU-100P is compatible with the following video cameras:

  • Panasonic AG-HPX255
  • Panasonic AG-HPX370
  • Panasonic AG-HPX500
  • Panasonic AG-HPX600

Datavideo MCU-100P Includes:

  • 1x MCU-100/200 Controller
  • 4x AD-1 Adapters
  • 1x Power Adapter (DC 12V 0.3A)
  • 1x Quick Start Guide

Datavideo MCU-100P Features:

  • Remote Control of 4 Cameras up to 1000 meters away using ethernet cable.
  • Save/Recall Memory (up to 3 setup configurations.)
  • Iris Control Knob: Allows independent iris control between cameras.
  • Four RJ-45 connections allow remote setup of up to four Panasonic.
  • RJ-45 cabling allows unit to be placed up to 1000m (Panasonic) away from the cameras.
  • Control of Record and Playback functions
  • Control of Camera User Memory functions
  • Control of OSD Menu Navigation
  • Control of Shutter speed and degree functions
  • Control of Iris adjustment
  • Control of AWB and ABB functions
  • Control of White Balance A, B, and Preset functions
  • Control of Camera Knee and Bar functions
  • Control of Camera Gain adjustment
  • RGB / R & B gain and Master Pedestal Controls

Datavideo MCU-100P Specifications:

  • Power Consumption: DC 12V / 0.5A (6W)
  • Weight: 350 g / 0.6 lbs.
  • Dimensions: 95mm (W) x 208mm (H) x 54mm (D) / 3.75 in. x 8.19 in. x 2.13 in.
  • Connection Distance: Up to 300m (CAT-5 or CAT-6)
  • Connections:
  • CAM/BS (From Panasonic Camera to AD-1 Adapter)
  • RJ45 (From AD-1 Adapter to MCU-100/200)*
  • CVBS (From AD-1 Adapter to Preview Screen)

NOTE: *Although the MCU-100 uses an RJ45 connector, it uses the RS-422 protocol to control the camera. Therefore, wired or wireless Ethernet cannot be used on the MCU-100.
