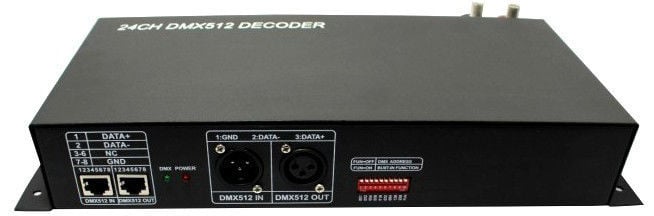

Blizzard Lighting Komply DMX-24
24-Channel DMX Decoding Controller/Driver with 8x RGB Outs

OUR PART #:  KOMPLY-DMX-24

Our Price: $299.99
List Price: $399.99
You save 25%!
Write the first review.
Blizzard Lighting Komply DMX-24
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Blizzard Lighting Komply™ DMX-24 is a DMX Decoding Driver/common controller device that uses an advanced micro control unit to receive standard DMX-512 digital control signals and transform them into PWM Mosfet driven signals for driving constant voltage LED(s). It features 24-channels—8x RGB—plus a 256-grayscale level for each channel. It's great for controlling up to 8 Komply RGB LED ribbons, where dimming functionality is required. Each unit can be daisy chained to other DMX controllers via the onboard DMX port, from the master DMX Digital console. It also features RJ45 In/Out, DMX In/Out, and is addressable via dipswitch.

Blizzard Lighting Komply™ DMX-24 Partial Specifications:

  • Operating temperature: -20° to 50°C Indoor (dry location)
  • Output: 24 channels (RGB x 8)
  • Grayscale: 256/channel
  • Output current: each channel 3 Amps (max)
  • Certifications: CE, Rohs

NOTE: Information subject to change without notice. Contact your Sales Professional for the latest on this and other products.
