Litepanels Hilio T12 High Output Tungsten LED Panel Fixture

OUR PART #: 907-2003

Copied to clipboard

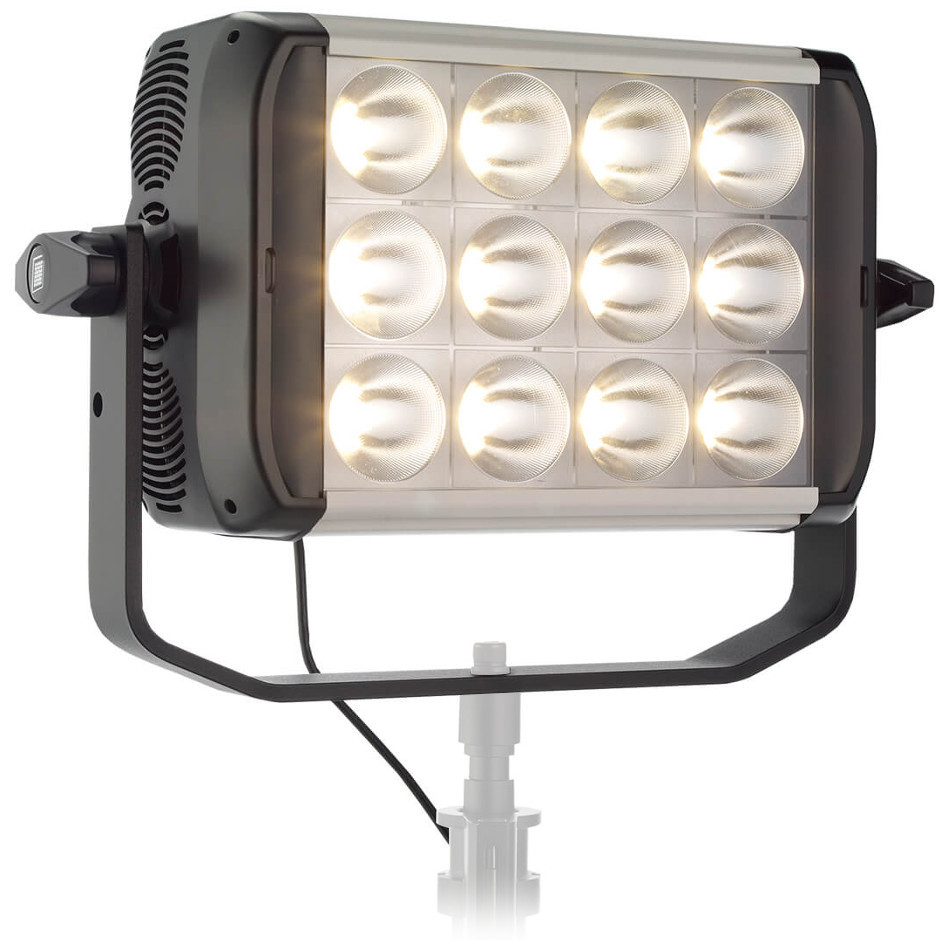

Litepanels Hilio T12 High Output Tungsten LED Panel Fixture Image 1
Litepanels Hilio T12 High Output Tungsten LED Panel Fixture Image 2
Litepanels Hilio T12 High Output Tungsten LED Panel Fixture Image 3
Litepanels Hilio T12 High Output Tungsten LED Panel Fixture
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Litepanels' Hilio T12 [Tungsten Balanced - model 907-2003] panel offers the flexibility of an open source fixture with all the benefits of Litepanels' proprietary LED fixture designs. These innovative panels emit a raw, narrow beam that provides the high intensity you need for long throws. With an array of optional accessories, this intensity can be harnessed and shaped to light an exterior, wash a set with soft light, or illuminate a cyc wall or green screen. The Hilio T12 is four times brighter than the previous version of Hilio. There’s no need for a heavy ballast or cabling, as the environmentally friendly and energy efficient Hilio T12 fixture draws only 350 watts of electricity, but delivers the output of a 2K Tungsten Par or open face fixture.

Litepanels Hilio T12 Includes:

  • Hilio T12 LED Tungsten Balanced Fixture
  • Manual Yoke
  • Power Supply
  • Power Cord

Litepanels Hilio T12 Features/Advantages:

  • Integrated DMX module, with RJ45 Ethernet connections for remote dimming control with any standard DMX512 protocol device.
  • Integrated slots hold color and diffusion gel filters and Nanoptic lenses.
  • Standard Yoke with Junior Pin to enable easy mounting and positioning.
  • User-friendly LCD display and a multi-functional control with menu-based button interface.
  • Removable, external power supply with convenient mounting bracket and other options.
  • Built-in SD card slot to easily facilitate future software upgrades.
  • High intensity, a narrow beam, and a wide range of accessories make these versatile fixtures essential in Broadcast Studios or on Feature/Episodic/Commercial location shoots.
  • Low power consumption, reduced HVAC requirements, and no associated bulb replacement costs contribute to a return on your investment (ROI) in less than three years for typical studio applications.
  • Incredibly energy efficient, these panels draw only 350W but are comparable to the output of a 2K Tungsten Par or open face fixture.
  • No UV or infrared wavelengths are emitted by any of Litepanels' fixtures.
  • Panels have a microprocessor operated, active cooling system that automatically adjusts to the ambient temperature.
  • Flicker-free at any frame rate or shutter angle.
  • Ultra-smooth dimming from 100% to 0, with no noticeable color shift throughout the entire range.
  • Unique Nanoptic lenses convert the powerful open source into a soft light or broad directional fill, delivering flexibility for almost any application.

Litepanels Hilio T12 Specifications:

  • Manufacturer part number: 907-2003
  • Dimensions: 14" x 20.5" x 8.75" (35.6cm x 52cm x 22.2cm)
  • Weight: 20.3 lbs. (PSU 8.9 lbs.)
  • Power requirements: 48V DC/100-240VAC
  • Maximum power draw: 350W
  • Power Supply: 48V DC via AC Adapter
  • Comparative output: 2kW Tungsten Par
  • Beam angle: 15°
  • Optics: Custom Reflector
  • Power supply: AC/DC 120-240VAC
  • Fixture type: Panel Fixture
  • Color temperature: Tungsten

NOTE:

Light stand sold separately.Contact your Sales Professional for more information.
