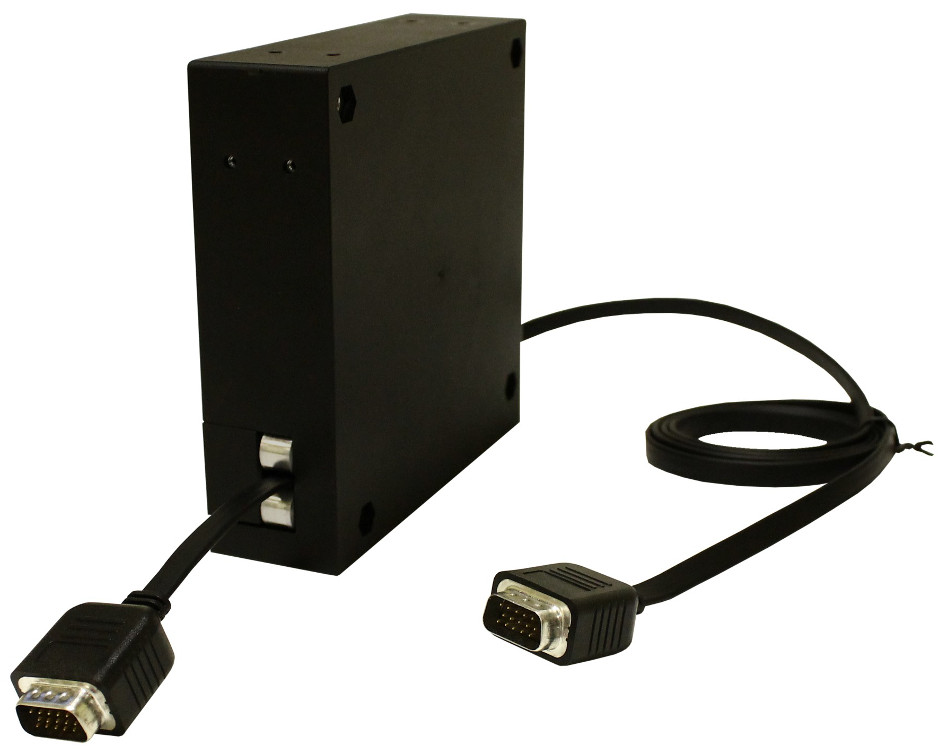

Altinex MINI-ME RT300-121
VGA Male-to-Male Retractable Cable

OUR PART #:  RT300-121

The Altinex MINI-ME™ RT300-121 VGA Retractable Cable offers an easy to use, VGA cable management solution for under-table installations.
Learn More
Our Price: $162.44
List Price: $188.00
You save 14%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Altinex MINI-ME RT300-121
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Altinex MINI-ME™ RT300-121 VGA Retractable Cable offers an easy to use, VGA cable management solution for under-table installations. The VGA cable assembly delivers the high definition video signal using a self-contained retractable assembly. The RT300-121 offers 4 feet of retractable cable and 4 feet fixed cable.

Summary
The RT300-121 offers a solution for managing VGA cables. The cable assembly was designed to deliver high definition video and audio to a switcher or a display. The RT300-121 has 4.0 ft of retractable cable and 4 ft of fixed length cable. The cable and the retractor have been tested to over 10,000 extensions/retractions. The AC200-125 and AC221-125 mounting hardware (sold separately) securely mounts the cable retractors to CNK200 and CNK221 table top units (sold separately).

Altinex MINI-ME RT300-121 Features:

  • Convenient, easy to install cable retraction system for CNK200, CNK221 interconnect box and stand alone*
  • Simple operation for AV connectivity
  • VGA compliant coaxial cable
  • CNK200 supports four MINI-ME RT300-121 units*
  • CNK221 supports two MINI-ME RT300-121 units*
  • Tested to 10,000 retracts
  • Mounting kits sold separately

*CNK200, CNK221 and additional RT300-121 units sold separately-contact your Sales Professional for more information on these and other products.


Altinex MINI-ME RT300-121 Specifications:

General

  • Inputs:
    • Video/Audio: VGA format
  • Outputs:
    • Video/Audio: VGA format:
  • Compatibility:
    • Tabletop enclosures: CNK200 & CNK221 (sold separately)
    • Stand-alone mounting: Mounting holes with 4x40 threads are provided
  • Additional Accessories (sold separately):
    • Mounting Hardware:
      • AC200-125 for CNK200
      • AC221-125 for CNK221

Mechanical

  • Dimensions (HxDxW): 4.8" x 4.8" x 1.4" (122mm x 122mm x 37mm)
  • Weight: 0.78 lbs. (0.353 kg)
  • Normal Pull force: 0.3 lbs. (+/- 0.1)
  • End of the cable pull force: Max 10 lbs. (+2 lbs.) (Damage may occur if customer forces retract past the end of cable)
  • Color: Black
  • Material: Plastic
  • Operating Temperature: 10°C - 35°C
  • Maximum Temperature: 50°C
  • Humidity: 90% non-condensing
  • MTBF (tested): 10,000 retractions

Electrical

  • Cable Gauge: 36AWG wires, 32AWG coaxes
  • Voltage Rating for Cable: 30V
  • Power: none
  • Amplifier: none
