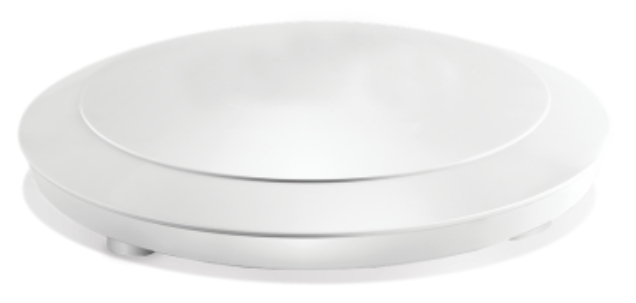

Intelix NWA100
900M Dual-Band High Power Fat Wireless Access Point

OUR PART #:  NWA100

The Niveo Professional NWA100 Wireless Access Point from Intelix is specifically designed to operate in set-ups for both Residential and Commercial applications.
Learn More
Our Price: $500.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Intelix NWA100
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Niveo Professional NWA100 Wireless Access Point from Intelix is specifically designed to operate in set-ups for both Residential and Commercial applications. The optimal signal of the 2 separate wireless radio modules assure full coverage, whether in old buildings or modern structures. Working on 2.4GHz (450M) and 5GHz(450M) simultaneously, wireless speed up to 900 Mbps, enabling users to enjoy high speed surfing, but also allows for very stable connectivity of control systems and the possibility of bridging and providing wireless access simultaneously.

The very stable operating devices minimize the occurrence of auto resets and prevent faulty start-ups after resetting. The flexible and simple web interface facilitates a fast, time saving configuration process for the installer.

Applications:

  • Network Wireless Access Point for SOHO
  • Network Wireless Access Point expansion

Intelix NWA100 Includes:

  • 1 NWA100
  • 1 Power Adapter
  • 1 Ethernet cable
  • 1 PoE Injector
  • 1 Bracket
  • 5 Screws
  • 1 Quick Install Guide
  • 1 CD (User Manual and Quick Installation Guide)

Intelix NWA100 Features:

  • Dual-Band High Power Fat Access Point
  • 2.4 & 5 GHz simultaneously
  • Inconspicuous design for residential/commercial installs
  • Expanded wireless coverage up to 900Mbps
  • Dual Power, DC or PoE power

Intelix NWA100 Specifications:

Wireless:

  • Standard: IEEE 802.11a/b/g/n
  • Speed:
    • 900 Mbps Compatible with A/B/G/N
    • IEEE 802.3u/af/at
  • Modulation:
    • 802.11a: QAM/BPSK / QPSK
    • 802.11b: DSSS / BPSK / QPSK / CCK
    • 802.11g: OFDM / DSSS / BPSK / QPSK / CCK
    • 802.11n: OFDM / DSSS / BPSK / QPSK/CCK
  • Channel:
    • 13: (Ch.1-13) for 2.4G
    • 149~165 for 5G
  • Frequency band:
    • 2.412GHz-2.472GHz for 2.4G
    • 5.725GHz-5.825GHz for 5G
  • Transmission Power:
    • 11a:
      • 1Mbps - 54Mbps / 21~22 dBm
    • 11b:
      • 1Mbps - 11Mbps / 26.5~27.5 dBm
    • 11g:
      • 6Mbps - 9Mbps / 26 dBm
      • 12Mbps - 18Mbps / 25 dBm
      • 24Mbps - 36Mbps / 24.5 dBm
      • 48Mbps - 54Mbps / 23.5 dBm
    • 11n:
      • MCS 0-7 / 23 dBm
      • MCS 8-15 / 23 dBm
      • MCS 16-23 / 23 dBm
  • Sensitivity:
    • 802.11A: -75 dBm
    • 802.11B: -95 dBm
    • 802.11G: -78 dBm
    • 802.11N(HT40): -70 dBm
    • 802.11N(HT20): -74 dBm
  • Encryption: WEP, WPA-PSK, WPA2-PSK, mix WPA/WPA2-PSK,AP isolation, Hidden SSID

Hardware:

  • Ports: 2 X 10/100/1000-BaseTX port
  • Button: 1 X Reset
  • LED: 1 x Power, 2X Wireless (2.4G+5G)
  • Chipset: BCM4706
  • Flash: 8MB
  • SDRAM: 128MB
  • Antenna: 6*4.5dbi internal antenna
  • Power Consumption: 25W (full load)

Software:

  • Standard Version:
    • Bandwidth: 20MHz, 20/40MHz
    • Wireless Mode: 11a/n mixed, 11 b/g/n mixed, 11 b/g mixed, 11g only, 11b only
  • Mode: AP Mode, WDS Mode, P2P, P2MP bridgemode
  • Wireless Safely: WEP, WPA-PSK, WPA2-PSK, mix WPA/WPA2-PSK
  • SSID No: 8(2.4G)
  • Factory Default Settings: Yes
  • Centralized management by software: Yes
  • Function:
    • WDS (Bridge/Repeater)
    • MAC Filter
    • Ping/Trace router
    • Web network management
    • System log view
    • LED Control

Environment:

  • Operating Temperature: -10ºC~45ºC
  • Storage Temperature: -30~70ºC
  • Relative Humidity (Operational):10%~90%, noncondensing
  • Relative Humidity (Storage): 10%~90%, noncondensing

Certification Compliant:

  • 3C,CE,FCC Class B

Dimensions:

  • Unit Dimensions: 7.87" x 1.42" (diameter height) (200 x 36mm)
  • Gift Box: 11.81" x 9.45" x 2.95" (300 x 240 x 75mm)
