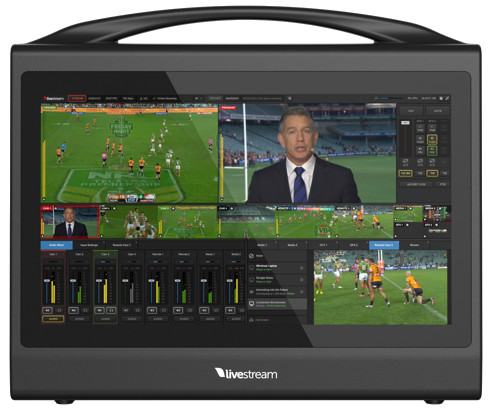

Livestream Studio HD550
All-In-One Live HD Production Switcher with 5 SDI/HDMI Inputs

OUR PART #:  LS-HD550

The Livestream Studio HD550, a portable, compact all-in-one production switcher...
Learn More

Call for price! Not available online.
List Price: $7,999.00

Similar Products

The Livestream Studio HD550, a portable, compact all-in-one production switcher, makes it easy to set up wherever your event is happening, and arrive prepared for a full multi-camera production operation. The HD550 offers 20 hours of broadcast quality ISO recording and features built-in bonded transmission, live streaming, and chroma key. It offers 5 SDI/HDMI inputs, an analog audio in, 1 SDI/HDMI output, and 1 HDMI extended screen output. Additional features include an integrated carry handle for easy transportation and 3 graphics tacks. Runs on Windows 7, comes with a custom carry-on bag with accessory pockets, Livestream Studio™ Keyboard and mouse, 1 year warranty, 1 year of phone support, and free software upgrades.

Livestream Studio HD550 Includes:

  • Studio HD550 unit
  • Livestream Studio Keyboard & Mouse
  • Carry Bag
  • Rubber Feet Blackmagic Design cards documentation and driver CD

Livestream Studio HD550 Features:

  • Connect any type of wired camera
  • Choose from a range of wireless cameras
  • Frame-accurate HD live switching with up to 4 multi-vew displays
  • Stream live to multiple platforms
  • Broadcast-quality video output
  • Stream live to any device via Livestream Platform (requires subscrtion, sold separately. Contact your Sales Pro for more information)
  • Frame-accurate media playback:
    • Import any popular media format, loop clips, make playlists, add recordings as clips in the list and export clips as .mp4 files for easy sharing.
    • Scrub your video to find the ideal moment, trim your clip with in/out points, and set clips to autoplay with your transitions.
  • Multiple simultaneous IS recordings:
    • Record your program in Broadcast-quality with (or without) overlays.
    • Edit clips and air highlighted replays to your viewers without stopping the recording
    • Record up to four simultaneous videos in broadcast quality MJPEG to an AVI file. Use an external USB3 hard drive for even greater storage.
  • Powerful, layered Broadcast Graphics/Titling:
    • Add layers of text, images and video
    • Move, distort, crop, and edit layers
    • Adjust color, add borders and shadow
    • Load JPG or PNG files (full transparency support with PNG files)
    • Add text (set position/font/size/color) over any loaded image file within the GFX1, GFX2 or GFX3
  • Format Converter: Built-in Broadcast-quality format converter for every input with automatic format detection. Allows use of any camera and video source without matching video formats
  • Remote Camera: 10 x Remote camera module for ingesting video/audio over local WiFi or Ethernet network, downlinking streams, and Interviews via WebRTC
  • Add live picture-in-picture or media sources
  • Apply in the mix or as a downstream overlay
  • Connect multiple local or external data sources
  • An assortment of creative transitions
  • Audio mixer with track grouping
  • Manualy triggered mid-roll advertisements (Requires a Livestream Platform Enterprise plan and a Google DFP account - acquired and/or sold separately)
  • Tally light integration
  • Convert different sources to match your project format in real time

Livestream Studio HD550 Specifications:

  • Format Converter: Built-in Broadcast-quality format converter for every input with automatic format detection. Allows use of any camera and video source without matching video formats
  • Remote Camera: 10 x Remote camera module for ingesting video/audio over local WiFi® or Ethernet network, downlinking streams, and Interviews via WebRTC
  • Media Sources:
    • 7 integrated digital media sources for video & graphics playback
    • 2 DDRs (video clip playback with built-in transcoder), 3 GFX (graphics), 2 Color Bars / Background Color
      External Multiscreen: 1x Extended Screen output using HDMI
    • 2 Media Players - Eject/Load clip. Play Pause/stop. Audio/Video Scrubber. Timecode indicator. Seek to timecode. Mark In/Mark Out. Loop. Auto-play on transition
  • Recording Capacity: ~20 hours at 1080i (Using 1 TB built in Hard Drive with recorder set to record at 100Mbps MJPEG AVI)
  • Supported Formats:
    • HD: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94, and 1080i60
    • SD: 625/25 PAL, 525/29.97 NTSC
  • Playback Media Formats:
    • GFX: JPEG or PNG image files with transparency support
    • DDR: AVI MJPEG with uncompressed audio, DV Video, WMV (7/8/9), H.264 (.mov & .avi), MPEG4 Part 2 (.mov & .avi), MPEG4 V1/V2 (.mov & .avi), AAC, MP3
  • Record Media Formats: AVI MJPEG with uncompressed audio
  • Operating System: Windows 7 Professional (64 bit) or better
  • Built-in Display: Integrated 17" (1920x1200) HD LED LCD
  • CPU: Intel Core i7-5820K Processor (15M Cache, up to 3.60 GHz)
  • Graphics Card: NVIDIA GeForce GT 610
  • Storage: 1 TB/ Western Digital Red 7200 RPM/ SATA 2.5" Internal Hard Drive
  • RAM: 16GB 4 total DDR3 1600 MHz RAM (non-ECC) (4GB x 4 DIMM triple-channel configuration)
  • Processing: Video: 4:2:2, 10-bit Color (REC 601, REC 709) Audio: 48 kHz, 24-bit EF IN/Genlock (Requires genlocking the two (2) Blackmagic Design cards via two (2) separate connectors)
  • Built-in Video Input/Output Cards:
    • (5) Blackmagic Design DeckLink Mini Recorder (PCI)
    • (1) Blackmagic Design DeckLink Mini Monitor (PCI)
  • I/O:
    • (5) HD-SDI Inputs
    • Embedded Audio Input: 5 Stereo or 40 Mono HD-SDI embedded audio inputs
    • Audio Monitoring (1/8")
    • (5) HDMI Inputs
    • HDMI Output
    • Standard/High Definition SDI Output
    • Analog Audio (1/8") Input
    • Analog Audio (1/8") Output
  • Physical Characteristics illustration:

DIMENSION & WEIGHT
