Audient ID14
High Performance USB Audio Interface

OUR PART #:  ID14

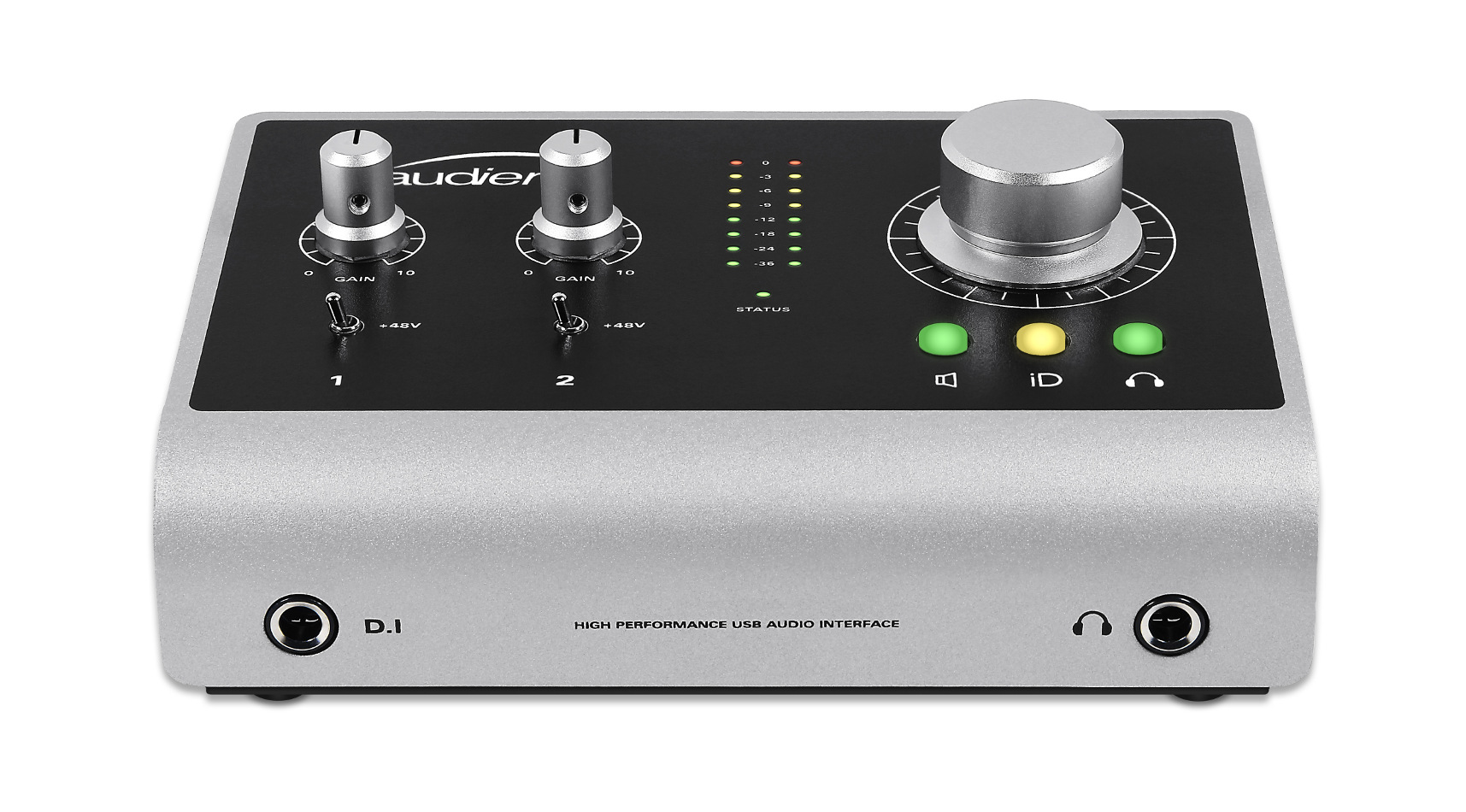

The Audient iD14 delivers the audio performance of a large format console in a compact desktop package.
Learn More
Our Price: $299.00
List Price: $399.00
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audient ID14
Qty:
In Stock

Similar Products

The Audient iD14 delivers the audio performance of a large format console in a compact desktop package. iD14 provides a pair of world-class Audient console mic pres, class-leading Burr Brown converter technology, console style monitor control, JFET D.I and the revolutionary ScrollControl. Audient is the only company that uses the same Class-A mic pre design throughout their entire product range. Developed by design legend David Dearden and optimized over 18 years of refinement, Audient's mic pre is used by thousands of professional studios around the world. With its versatile nature and smooth tone, the Audient iD14 will quickly become your go-to mic pre.

The Audient iD14 provides you with high performance AD-DA converters from Burr Brown, the leaders in converter technology. The quality of these comes from years of experience as analog console designers, and when coupled with outstanding converter technology it enables you to hear audio as it’s supposed to sound. The importance of converters should never be underestimated.

As well as offering you 2 channels of mic pre, Audient's iD14 has a harmonically rich JFET D.I input. Designed to replicate the input stage of a classic valve amplifier, you can plug your guitar, bass, keyboard or drum machine in and start recording instantly.

We understand the need to keep things simple and the Audient iD14’s mixer app was designed with that in mind. Whether you’re creating low latency cue mixes or utilizing the flexible monitor control, the iD14 tightly integrates the hardware and software. This makes the recording process easy, and enables you to concentrate on the music.

Get hands-on control of your software with the Audient iD14’s ScrollControl. With a touch of a button iD14’s volume encoder becomes a virtual scroll wheel that allows you to adjust DAW hosts, plug-in parameters, iD14’s mixer app and even scroll through your iTunes library - just like you’re adjusting a piece of hardware. Wherever your mouse pointer hovers, the iD knob can scroll to control.

When not using the virtual scroll wheel, the iD button can be assigned to control Audient's iD14 monitoring features. Following in the footsteps of it's big brother iD22, Audient has included DIM, CUT, Polarity Reverse, Mono Sum, Talkback and Cue Mix monitoring, all of which can be assigned to the iD button.

As your system grows, the Audient iD14 can be expanded via the optical input connector, supporting both ADAT or S/PDIF. This enables you to expand up to ten inputs via an eight-channel mic pre, such as the ASP880.

From its all-metal construction, hand finished aluminium knobs and high grade component selection, Audient's iD14 will stand up to countless nights in the studio and days on the road.

Audient iD14 Features:

  • 2 x Class-A Audient Console Mic Preamplifiers
  • High Performance Burr Brown AD/DA Converters
  • 1 x Discrete JFET Instrument Input
  • Main Speaker Output
  • Independent Class-AB Headphone Output
  • Full Monitor Control Functionality (software controlled)
  • ADAT Input for Expandability
  • Low Latency DSP Mixer
  • iD ScrollControl Mode
  • All-Metal Enclosure
  • USB2.0 Bus Powered

Audient iD14 Specifications:

  • D.I / Instrument Input (Channel 1)
    • D.I Gain: 0 to 66dB (incl. +10dB software boost
    • Maximum Input Level: +9 dBu (0.6% THD typical
    • Input Impedance: >500kOhm unbalanced
    • Frequency Response: +/_ 0.1dB 20Hz to 22kH
    • THD+N @ 0dBu (1kHz): <0.04% all musical 2nd and 3rd harmonic
    • SNR: 95 dB un-weighted, 98 dB A-weighted
    • 1/4" TS Jack: Tip (Hot) & Sleeve (Shield)
  • Analogue to Digital Converter (DAC 1 & 2)
    (Measured sans microphone prempalifier under AES-17)
    • Maximum Input Level: +12 dBu (0 dBFS digital maximum)
    • Digital Reference Level: +12 dBu = 0 dBFS
    • Frequency Response: +/- 0.1 dBu 10Hz to Fs/2 (flat to nyquist)
    • Crosstalk: -100 dBu @ 1kHz & 10kHz
    • THD+N @ -1dBFS (1kHz): <0.002% (-94 dB)
    • THD+N @ -6dBFS (1kHz): <0.0015% (-96.5 dB)
    • Dynamic Range: 113 dB un-weighted, 116 dB A-weighted
  • Digital to Analogue Converter (DAC 1 & 2)
    (Measured under AES-17 at line outputs 1 &2)
    • Maximum Input Level: +12 dBu (0 dBFS digital maximum)
    • Digital Reference Level: +12 dBu = 0 dBFS
    • Output Impedance: <100 Ohm
    • Frequency Response: +/- 0.1dB 10Hz to Fs/2 (flat to nyquist)
    • Crosstalk: <105 dBu @ 1kHz & 10kHz
    • THD+N @ -1dBFS (1 kHz): <0.003% (-90.5 dB)
    • Dynamic Range: 114 dB un-weighted 117 dB A-weighted
    • 1/4" TRS Jack: Tip (Hot), Ring (Cold) & Sleeve (Shield)
  • Power Supply:
    • 12VDC Centre Positive - 1.25A (required for full 48V Phantom Power)
      • External supply is required for 48V phantom power
  • Microphone Preamp (measurement includes ADC signal path)
    • Mic Gain: 0 to 66dB (incl. +10 dB software boost)
    • Line Gain: -10 to 56 dB (-10dB hardwired line pad)
    • Phantom Power: 48V ±4V @ 10mA channel (12VDC only)
    • Mic EIN: <-127.0 dBu
    • CMRR: >80 dB @ 1kHz
    • Maximum Input Level: +12 dBu (0 dBFS digital maximum)
    • Input Impedance (Mic): 2.8k O balanced
    • Input Impedance (Line): >8k O balanced
    • Frequency Response: ±0.1 dB 20Hz to 22kHz @ min. gain
                                        ±1.0 dB 20Hz to 22kHz @ max. gain
    • Crosstalk: <-90 dBu
    • THD+N @ 0dBu (1kHz): <0.0025% (-92 dBu)
    • SNR: 96 dB un-weighted, 99 dB A-weighted
    • XLR Combi Female: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
    • 1/4” TRS Jack: Tip (Hot), Ring (Cold) & Sleeve (Shield)
  • Headphone Output/DAC 3 & 4:
    (measured under AES-17 at phones output)
    • Maximum Output Level: +12 dBu (0 dBFS digital maximum)
    • Digital Reference Level: +12 dBu = 0 dBFS
    • Output Impedance: <30 O unbalanced
    • Voltage Gain: +6 dB (optimized for loudness)
    • Frequency Response: ±1.0dB 10Hz to Fs/2 (load dependent)
    • Crosstalk: <-100 dBu @ 1kHz & 10kHz
    • THD+N @ -1dBFS (1kHz): <0.002% (-94 dB)
    • Dynamic Range: 108 dB un-weighted, 111 dB A-weighted
    • Maximum Level into 30 Ohm: +4 dBu 0.005% THD+N Power: 101mW
    • Maximum Level into 60 Ohm +5 dBu 0.004% THD+N Power: 64mW
    • Maximum Level into 600 Ohm: +13 dBu 0.0025% THD+N Power: 39mW
    • 1/4” TRS Jack: Tip (Left), Ring (Right) & Sleeve (Shield)
  • Digital Input:
    • 8-Channel ADAT: 44.1kHz to 48.0kHz
    • 4-Channel ADAT: 88.2kHz to 96.0kHz SMUX
    • Stereo S/PDIF/Toslink: 44.1kHz to 96.0kHz (Stereo)
  • USB2.0 High Speed:
    • Bus Power: 500mA @ 5V System Limit
                        425mA @ 5V Maximum (No 48V)
      • Phantom power only available on 12VDC)
    • No. of Input Channels: 10 (2 Analogue, 8 Digital)
    • No. of Output Channels: 4 (4 Analogue)
    • DSP Mixer Latency: Round Trip (in-to-out)
                                      44.1kHz
                                      1.660ms
                                      48.0kHz
                                      1.531ms
                                      88.2kHz
                                      0.844ms
                                      96.0kHz
                                      0.771ms
