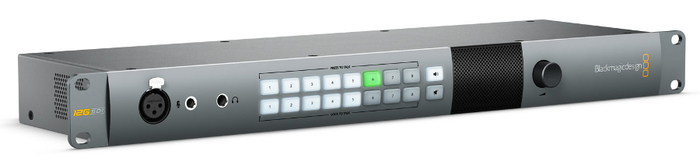

Blackmagic Design ATEM Talkback Converter 4K
1RU ATEM Switcher with 12G-SDI and Talkback

OUR PART #:  SWRCONVRCKT4K8

Our Price: $2,370.25
List Price: $2,495.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design ATEM Talkback Converter 4K
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ATEM Talkback Converter 4K from Blackmagic Design handles up to 8 cameras for SDI talkback using embedded audio channels 15 and 16 as used on the Blackmagic Studio Cameras and ATEM Camera Converter.

With 4K cameras that include 12G-SDI and the new ATEM switcher with 12G-SDI, you need a new talkback product to manage talkback with cameras. However unlike Blackmagic Design's ATEM Studio Converter, they wanted to change up the design. The new ATEM Talkback Converter now has BNC 12G-SDI connections so you can run simple BNC SDI cables to the cameras, and this means don’t have to run optical fiber if you don’t need it. Optical fiber in this product is optional and the SMPTE SFP modules are not installed, that means you can install them if you need them, and you don’t have to pay for optical fiber interfaces you don't need.

Offers push to talk buttons, support for tough and common aviation headsets, loop though for more than 8 camera support, built in speaker, front panel mic input and much more.

Blackmagic Design ATEM Talkback Converter 4K Includes:

  • ATEM Talkback Converter 4K
  • Software SD Card

Blackmagic Design ATEM Talkback Converter 4K Features:

  • Professional talkback for up to 8 cameras for true two-way communication with camera operators during live production.
  • Auto switch between any SD, HD and Ultra HD videostandard up to 2160p60.
  • Works with standard general aviation headsets that are better quality, more reliable and robust.
  • Includes broadcast quality connections with 12G-SDI.
  • Includes 3-pin female XLR connector for talkback mic.
  • Add optional optical fibre modules for longer camera distances, up to 28 miles away!
  • Compatible with Blackmagic Studio Camera and ATEM switchers to provide the complete solution.
  • Built in control panel with LED buttons, speaker and mic input.
  • Compact 1 rack unit size, robust and lightweight for use in trucks and flyaway kits.
  • Includes 110-240V AC power input with redundant 12-30V DC input.

Blackmagic Design ATEM Talkback Converter 4K Specifications:

  • Connections:
    • SDI Program Input: 1 x 10-bit SD/HD/Ultra HD 4K auto switching program input from switcher, including tally information with 16 channel embedded audio.
    • SDI Program Output: 1 x 10-bit SD/HD/Ultra HD 4K auto switching program loop thru output connects to another ATEM Talkback Converter 4K.
    • Talkback Audio: Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.
    • Analog Audio: 1 x stereo RCA monitoring output.
    • SDI Camera Input: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.
    • SDI Camera Output: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.
    • SDI Output: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.
    • Optical Fiber Video Input (Optional): 8 x single mode SD/HD/Ultra HD 4K auto switching camera inputs with LC connector.
    • Optical Fiber Video Output (Optional): 8 x single mode SD/HD/Ultra HD 4K auto switching camera outputs with LC connector.
    • Optical Fiber Audio Input: 8 x single mode camera audio inputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.
    • Optical Fiber Audio Output: 8 x single mode camera audio outputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.
    • Computer Interface: 1 x mini-B type USB connector for firmware updates.
  • Standards:
    • SD Format Support: 525/29.97 NTSC, 625/25 PAL
    • HD Format Support: 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
    • 2K Format Support: 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.
    • 4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p60.
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M.
    • Audio Sampling: Television standard sample rate of 48Khz, 24-bit A/D conversion.
    • Video Sampling: 4:2:2, 4:4:4
    • Color Precision: 10-bit
    • Color Space: REC 601, REC 709.
    • Multiple Rate Support: SDI switches between SD, HD and Ultra HD 4K.
  • Software:
    • Internal Software Upgrade: Via included updater application.
    • Operating Systems:
      • Mac: Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
      • Windows: Windows 7 or Windows 8.
  • Power Requirements:
    • Power Usage: 60 Watts
    • Power Supply: 110 - 240V AC input with redundant 12-31V DC input.
  • Physical:
    • Dimensions (H x W x D): 1.75" x 19" x 6.30"
    • Weight: 5.07 lbs
    • Installation: 1 rack unit size. Less than 6" deep.
  • Environmental:
    • Operating temperature: 32° to 104° F (0° to 40° C)
    • Storage temperature: -4° to 113° F (-20° to 45° C)
    • Relative Humidity: 0% to 90% non-condensing
