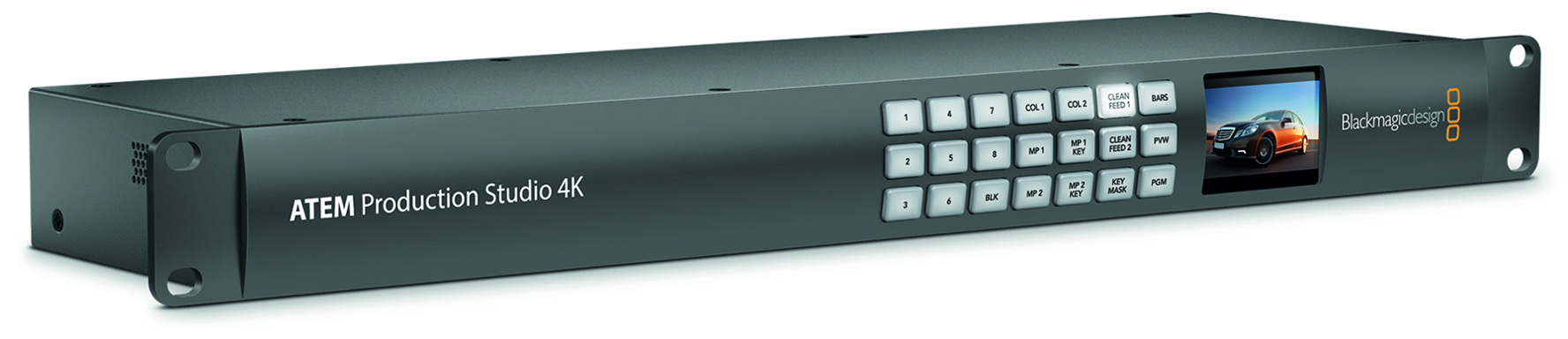

Blackmagic Design ATEM Production Studio 4K
6G-SDI Production Switcher

OUR PART #:  SWATEMPSW04K

Blackmagic Design's ATEM Production Studio 4K is one of the first Ultra HD 4K live production switchers that also features 6G-SDI in SD, HD all in one package.
Learn More
Our Price: $1,610.25
List Price: $1,695.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design ATEM Production Studio 4K
Qty:
In Stock

Similar Products

Blackmagic Design's ATEM Production Studio 4K is one of the first Ultra HD 4K live production switchers that also features 6G-SDI in SD, HD all in one package.

The ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world's first 6G-SDI and HDMI 4K video connections.

Blackmagic Design ATEM Production Studio 4K Includes:

  • ATEM Production Studio 4K
  • Software CD

Blackmagic Design ATEM Production Studio 4K Specifications:

  • Connections:
    • Total Video Input: 8
    • Total Video Output: 6
    • SDI Video Input: 4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
    • HDMI Video Input: 4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
    • Analog Audio Output: 2 x XLR.
    • SDI Audio Output: 2 channel embedded into SDI output.
    • Audio Input: 2 x XLR. 2 x RCA.
    • Sync Input: Tri-Sync or Black burst.
    • Internal Frame Synchronizers: 8. All inputs.
    • SDI Program Output: 1 x 10-bit SD/HD/Ultra HD 4K switchable.
    • HDMI Program Output: 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.
    • Down Converted SDI Program Output: 1 x 10-bit HD (Ultra HD 4K to HD).
    • SDI Aux. Output: 1
    • Quantity of Multi Views: 1
    • Outputs per Multi View: 1 x HD-SDI and 1 x HDMI.
    • Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
  • Video Standards:
    • SD Format Support: 625/25 PAL 4:3 and 16:9, 525/29.97 NTSC 4:3 and 16:9
    • HD Format Support: 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080i50, 1080p50, 1080i59.94, 1080p59.94.
    • Ultra HD 4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97.
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 424M.
    • Video Sampling: 4:2:2
    • Color Precision: 10-bit
    • Color Space: REC 601, REC 709
    • HDMI Input Resolutions for Computers: 720 x 480i 59.97Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz and 1920 x 1080 59.94Hz, 1920 x 1080 50Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz.
    • Colorspace Conversion: Hardware based real time.
    • Processing Delay: 1 Line.
    • Audio Mixer: 10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring.
    • 4K to HD Down Conversion: Yes, program x 1.
  • Software:
    • Control Panel Included: ATEM Software Control Panel included free.
    • Tally Output: Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
    • Software Updates: Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
    • Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
  • Operating Systems:
    • Mac: Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
    • Windows: Windows 7 64-bit or Windows 8 64-bit.
  • Product Specifics:
    • Total Number of Layers: 4
    • Upstream Keyers: 1
    • Downstream Keyers: 2
    • Linear/Luma Keyers: 3
    • Chroma Keyers: 1
    • Pattern Generators: 2
    • Color Generators: 2
    • Display interface: Minimum monitor resolution of 1366 x 768.
    • Media Players: 2
    • Channels: Fill and key for each Media Player.
    • Media Pool Still Image Capacity: 20 with fill and key.
    • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
    • Number of Windows: 1 x 10
    • Routable Windows: 8
    • Tally: Red for program and green for preview indication.
    • Windows Source Labels: Yes
    • Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.
  • Power Requirements:
    • Input Voltage: 110-240 V AC
    • Power Usage: 60W
  • Dimensions (HxWxD): 1.73" x 19" x 5.79"
  • Weight: 3.75 lbs
  • Environmental:
    • Operating Temperature: 0° to 40° C (32° to 104° F)
    • Storage Temperature: -20° to 60° C (-4° to 140° F)
    • Relative Humidity: 0% to 95% non-condensing
