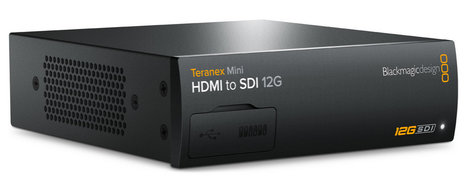

Blackmagic Design Teranex Mini - HDMI to SDI 12G
HDMI to 12G-SDI Mini Converter

OUR PART #:  CONVNTRM/AB/HSDI

The Teranex Mini - HDMI to SDI 12G from Blackmagic Design is one of their next generation mini converters featuring 12G optical fiber and 12G-SDI, which supports all SD...
Learn More
Our Price: $470.25
List Price: $495.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design Teranex Mini - HDMI to SDI 12G
Qty:
In Stock

Similar Products

The Teranex Mini - HDMI to SDI 12G from Blackmagic Design is one of their next generation mini converters featuring 12G optical fiber and 12G-SDI, which supports all SD, HD and Ultra HD formats up to 2160p60. This model converts from HDMI to 12G-SDI. This unit works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. This model also handles embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.

All Teranex Minis include an internal AC power supply, professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power. The Teranex Mini lineup is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what’s being converted on the screen. They can even be remote managed over ethernet. Their compact size makes them great for portable racks at live events or in broadcast trucks, plus they have professional XLR audio connections for connecting to mixers and other audio gear. You can even use them in editing and color grading suites to drive big screen displays and projectors.

Teranex Minis are so small that you can use them like regular mini converters such as hiding them in cable ducts, behind equipment and attached to televisions for monitoring. Teranex Mini’s new flexible design lets you use them on the desktop where you can see them, or rack mount them in larger broadcast systems.

The family of Teranex Mini converters include cutting edge, multi rate 12G-SDI technology that’s 8 times faster than regular HD-SDI. 12G-SDI is multi rate so it will automatically detect and change between all SD, HD and Ultra HD video formats instantly, so you can connect Teranex Mini to all of your existing SD and HD equipment. 12G-SDI supports high frame rate Ultra HD up to 2160p60 on a single BNC cable so you can work in Ultra HD and keep your high frame rate production workflow for fast moving sports and action programming.

Another innovative feature to consider is the optional Teranex Mini - Smart Panel that includes a spin knob, color LCD and multiple buttons. This means the user can simply remove the basic front panel from a Teranex Mini and replace it with a Teranex Mini Smart Panel to allow full setup and control from the front panel.

Includes:

  • Teranex Mini - HDMI to SDI 12G
  • Software SD Card

Blackmagic Design Teranex Mini - HDMI to SDI 12G Features:

  • Advanced 12G-SDI connections for working with SD, HDand Ultra HD up to 2160p60.
  • Professional XLR audio connections with low noisefloor when used in analog mode.
  • Broadcast quality analog connections.
  • Built in power 90V - 240V international power supplyfor use anywhere in the world.
  • Ethernet for remote management and back up power overethernet (POE).
  • DIP switches and connection diagram for easy setupwhen Smart Panel is not used.
  • Optional front panel with LCD screen and push buttoncontrols.
  • Elegant, compact, durable design that can be used inracks, on desktops or mounted anywhere.
  • Unique crossflow cooling with variable speed fans forquiet, reliable operation.
  • Optional rack mount shelf for mounting 3 Teranex Minis side by side in1RU.

Blackmagic Design Teranex Mini - HDMI to SDI 12G Specifications:

  • Connections:
    • SDI Video Output: Automatically matches the SD, HD and 12G-SDI HDMI video input.
    • XLR Audio Input: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
    • AES/EBU Audio Output: 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
    • HDMI 2.0: 1 x HDMI type A connector with support for 2160p60.
    • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
    • Updates and Configuration: USB or Ethernet.
    • Re-Clocking: Yes
  • Standards:
    • SD Format Support: 525/29.97 NTSC, 625/25 PAL
    • HD Format Support: 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
    • 4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
    • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
    • SDI Video Rates: SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI.
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
    • SDI Color Precision: 4:2:2 and 4:4:4
    • SDI Color Space: YUV
    • SDI Auto Switching: Automatically detects SD, HD or 12G-SDI.
    • HDMI Format Support: 525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
    • HDMI Color Space: REC 601, REC 709
    • HDMI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
    • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
  • Format Conversion:
    • HD down conversion
  • Software:
    • Software Control: Mac OS X™ and Windows™ software upgrade via USB and Ethernet
    • Internal Software Upgrade: Via included updater application.
  • Settings Control:
    • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons
  • Power Requirements:
    • Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
    • Power Over Ethernet: Can be powered via 48V DC using PoE (power over ethernet).
    • Power Consumption: 15 Watts
    • Operational Voltage Range: 90 - 240V AC
  • Physical:
    • Dimensions (H x W x D): 1.75 x 5.51 x 6.69 in.
    • Weight: 1.28 lbs.
  • Environmental:
    • Operating Temperature: 0°to 40°C (32° to 104°F)
    • Storage Temperature: -20°to 60°C (-4° to 140°F)
    • Relative Humidity: 0% to 90% non-condensing
