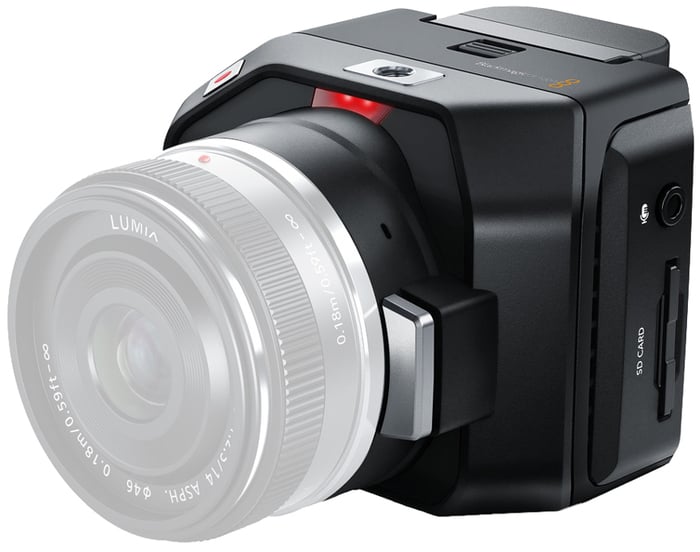

Blackmagic Design Micro Cinema Camera
Miniaturized Digital Film Camera - Body Only

OUR PART #:  CINECAMMICHDMFT

The Blackmagic Design Micro Cinema Camera [model BMD-CINECAMMICHDMFT] is a miniaturized Super 16mm, professional digital film camera that is designed to be operated remotely...
Learn More
Blackmagic Design Micro Cinema Camera Right Side
Blackmagic Design Micro Cinema Camera Left Side
Blackmagic Design Micro Cinema Camera Back View

Click a thumbnail to see more images. (5 total)

Our Price: $995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design Micro Cinema Camera
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Blackmagic Design Micro Cinema Camera [model BMD-CINECAMMICHDMFT] is a miniaturized Super 16mm, professional digital film camera that is designed to be operated remotely, and capture action anywhere. A revolutionary built-in expansion port has PWM and S.Bus inputs so you can use a model airplane remote control to operate the camera wirelessly. Imagine adjusting focus, iris, and zoom-wirelessly. The Micro Cinema Camera is a true digital film camera that features built-in RAW and ProRes recording, 13 stops of dynamic range, a global shutter, and an MFT lens mount. You get a true digital film camera that can go where no other digital film camera can.

NOTE: Lens(es) sold separately. Contact your Full Compass Sales Professional for more information.

Blackmagic Design Micro Cinema Camera Includes:

  • Blackmagic Micro Cinema Camera
  • Expansion cable
  • LP-E6 battery
  • Turret dust cap
  • 12V AC Adapter

Blackmagic Design Micro Cinema Camera Features:

  • Get Incredible Action Shots - The Digital Film Camera for Action Camera Shots
    The Blackmagic Micro Cinema Camera is an impossibly small true, professional quality digital film camera that's perfect for use on quadcopters, as a crash cam, or even hidden on set for reality TV. You can mount it anywhere such as on a skate board or hang glider for spectacular extreme sports shots, to a drone to record panoramic fly overs, or even wear it on a helmet for the most amazing point of view shots. The Blackmagic MicroCinema Camera will make your audience say “Wow! How did they get that shot?”
  • Remote Camera Management - Wireless Control of Your Camera from a Safe Distance
    When you’re mounting the camera on quadcopters, using it as a crash cam or placing it in dangerous locations, you can operate the camera remotely, view a live feed and monitor status, all from a safe distance. The expansion port can be connected to radio control airplane receivers and various camera functions can be mapped to radio channels so you can remotely start and stop recording, adjust focus, change the iris, and more. The expansion port also has a composite video output that can be connected to low cost wireless video transmitters for remote monitoring of the camera’s recording status, battery life, and audio levels.
  • Extremely Customizable Design - The World’s Smallest Completely Open and Customizable Camera
    The design of the Blackmagic Micro Cinema Camera combines advanced miniaturization and a unique expansion port in a digital film camera that lets you create personalized rigs for remote operation and monitoring. The camera body is not much larger than the Micro Four Thirds (MFT) lens mount, making it as small as a camera with a professional lens can be. Its core is made of a strong, lightweight magnesium alloy that makes it durable enough to shoot anywhere, from the ocean floor to the stratosphere or beyond! You can control the Micro Cinema Camera directly from the front buttons when it's mounted, or remotely when it’s out of reach.
  • Revolutionary Expansion Port - Now You Can Create Your Own Custom Camera Remote Control
    The revolutionary expansion port lets you create custom remote control, external power, and monitoring solutions. The included breakout cable gives you access to many of the camera's unique functions, but you can also create your own custom cables that open the camera up to do even more. In addition to things like LANC, power, video out, and genlock, you also get 4 analog PWM radio remote control inputs so you can map camera functions to the dials, knobs, buttons and joysticks on model airplane remotes. For even more control with greater precision, you can use the 18-channel S.Bus control input with Futaba radio control equipment or custom embedded controllers.
  • Remote Monitoring - Transmit and Monitor Video Wirelessly
    The expansion port includes NTSC and PAL composite video output that can be connected to low cost wireless video transmitters for remote monitoring. That means you can see exactly what the camera is recording whether the camera is in the air or hidden on set. For higher quality monitoring, the Micro Cinema Camera also has an HDMI output for wireless HD video transmitters. Both the composite and HDMI outputs can display overlays for camera status, lens settings, file formats, histogram, audio meters, battery life, and more.
  • Super 16mm Sensor - Wide Dynamic Range and Global Shutter
    The Super 16 sensor is full 1080 HD resolution and has an incredible 13 stops of dynamic range and global shutter up to 30 frames per second. Most DSLR and action cameras use a rolling shutter that exposes different parts of the image in fractions of a second, causing video to appear skewed or wobbly when the camera moves or vibrates. The Blackmagic Micro Cinema Camera’s global shutter acts more like a still camera, exposing the entire image at the same time so you get distortion and ripple free video. With an ISO up to 1600, the Blackmagic Micro Cinema Camera also gives you great quality, even in locations with low lighting.
  • Built-in RAW and ProRes Recorder - Record Using Professional Formats without Ugly Compression Artifacts
    The built in recorder captures true 12-bit log digital film quality images without the artifacts you get on heavily compressed 8-bit H.264 files used on small consumer action and DSLR cameras. Files can be saved in either Cinema DNG RAW or ProRes. CinemaDNG RAW files are 12-bit log and give you all of the data from the camera’s sensor, so you have the latitude to change things like white balance and exposure long after the camera stops rolling. If you need smaller file sizes and longer recording times, you can use ProRes to get broadcast quality images. Both formats can be easily edited and color corrected with the included DaVinci Resolve Lite for Mac and Windows.
  • Interchangeable Lenses - Use a Wide-Range of Lightweight Professional Photo Lenses
    The Blackmagic Micro Cinema Camera features an active Micro Four Thirds lens mount so you can use high performance photographic lenses including wide angle, primes, standard zooms, telephotos and more. That means you're not stuck with a built-in lens and can choose the best lens for the job. The focus, iris, and zoom on active MFT lenses can be controlled remotely from the camera’s expansion port. Many MFT lenses also have built-in optical image stabilization, making them perfect for use in places where there might be a lot of movement, shocks, or vibration.
  • Easy Camera Settings - Front-Panel Buttons to Quickly Change Settings
    You can quickly adjust camera settings using the row of buttons located on the front of the camera. Because they're on the front, the buttons are always accessible, whether the camera is strapped to your body or mounted in tight locations. Camera settings are displayed on screen using the HDMI or composite video output. You also get power, record, stop, fast forward, and rewind buttons, along with an LED light on top that shows recording status and has memory card and low battery warning indicators.
  • Professional Sound - High-Quality Audio Recording with Built-In or External Microphones
    Engineered for high quality audio recording, the built in high quality stereo microphone is omni-directional and features a mechanical design to help reduce unwanted wind noise so you get a clear recording. There's also a built-in 3.5mm input connector so you can plug in directional or wireless clip on microphones. The 3.5mm input jack supports both mic or line level devices and automatically disables the internal mic when an external one is connected. The Blackmagic Micro Cinema Camera gives you the flexibility to choose the right microphone or audio source for your production.
  • Battery or External Power - Use Removable Batteries or DC Power Sources
    For remote recording, you can attach any readily available LP-E6 battery to the back of the camera and place it in all sorts of locations. The battery level is shown in an overlay when the camera is connected to an HDMI display or on the PAL/NTSC video output so you can monitor battery levels even when the camera is operated remotely. There is also an LED on the camera to indicate low battery condition as well as record status. The included breakout cable has a 12V DC input jack so you can use external power supplies or even rig up your own long lasting custom power sources.
  • Add Popular Accessories - Rig It, Mount It, and Control It Anywhere
    The Blackmagic Micro Cinema Camera is compatible with a virtually unlimited number of accessories ranging from interchangeable MFT lenses and lens mount adapters, to quadcopters, battery chargers, and more. Two ¼” mounting points on the top and bottom of the camera let you securely rig the camera anywhere and then use wireless HDMI or composite video transmitters for remote monitoring. You can even control the camera using wired LANC accessories or go completely wireless with PWM or S.Bus radio remote control transmitters and receivers or roll your own custom control solution using embedded computers such as Raspberry Pi or BASIC Stamp.

NOTE: Lens(es) sold separately. Contact your Full Compass Sales Professional for more information.

Blackmagic Design Micro Cinema Camera Specifications:

General

  • Manufacturer product ID: BMD-CINECAMMICHDMFT

Camera Features

  • Sensor Size
    12.48mm x 7.02mm (Super 16)
  • Shooting Resolutions
    1920 x 1080
  • Frame Rates - Global Shutter
    1080p23.98, 24, 25, 29.97, 30
  • Frame Rates - Rolling Shutter
    1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • Dynamic Range
    13 stops
  • Focus
    Remote focus control via expansion connector when using compatible lenses.
  • Iris Control
    Iris control via Rewind and Forward buttons, plus remote control via expansion connector when using compatible lenses.
  • Lens Mount
    Active MFT mount
  • Controls
    6 control buttons including Record, Play, Rewind, Forward, Menu, and Power. 4 channel PWM plus 1 x S.Bus remote via expansion connector
  • Microphone
    Integrated stereo microphone, active when camera is recording.
  • Mounting Options
    1 x 1/4" (top), 3 x 1/4" (bottom)

Storage Features

  • Storage Type
    Removable SDXC and SDHC cards.
  • Storage Format
    Mac OS Extended or exFAT format. SD cards can be formatted in camera, or on any Mac or Windows computer. Formatting in camera recommended.
  • Storage Rates
    • 1920 x 1080
    • CinemaDNG RAW - 65 MB/s
    • Apple ProRes 422 HQ - 27.5 MB/s
    • Apple ProRes 422 - 18.4 MB/s
    • Apple ProRes 422 LT - 12.75 MB/s
    • Apple ProRes Proxy - 5.6 MB/s
      Rates based on 30 frames per second.
  • Compressed Recording Formats
    Lossless CinemaDNG RAW at 1920 x 1080 with film dynamic range. Apple ProRes 422 HQ, 422, 422 LT, and 422 Proxy at 1920 x 1080 with either film or video dynamic range.

Connections

  • HDMI Video Output
    1 x HDMI Type A output
  • Expansion Port
    DB-HD15 serial connector provides support for:
    • Power input
    • LANC input
    • 1 x S.Bus channel input
    • 4 x PWM channel input
    • Genlock input
    • Composite video output
  • Analog Audio Input
    1 x 3.5mm stereo audio at line or mic level. Can also be used for timecode input.
  • HDMI Audio Output
    2 channels 48 kHz and 24-bit.
  • Remote Control
    Lens control, recording parameters and record trigger start/stop trigger via LANC and PWM or S.Bus remote channels
  • Computer Interface
    USB 2.0 Mini-B port for software updates.

Software

  • Software Included
    • DaVinci Resolve Lite grading software.
    • SD card for Mac OS X and Windows.

Operating Systems

  • Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
  • Windows 7 or Windows 8.

Power Requirements

  • Battery Type
    Canon LP-E6
  • Battery Life
    Approximately 1 hour 30 minutes
  • Power
    12V-20V

Environmental Specifications

  • Operating temperature
    0° to 40° C (32° to 104° F)
  • Storage Temperature
    Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity
    Relative Humidity: 0% to 90% non-condensing

Warranty

  • 12 Month Limited Manufacturer's Warranty
