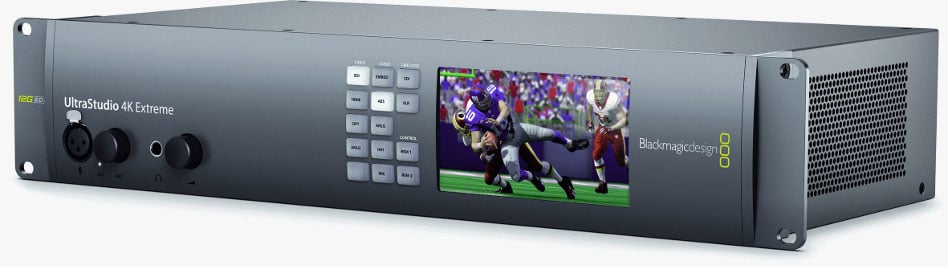

Blackmagic Design UltraStudio 4k Extreme
12G Thunderbolt and PCIe Capture and Playback Solution

OUR PART #:  BDLKULSR4KEXTR

Our Price: $2,845.25
List Price: $2,995.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design UltraStudio 4k Extreme
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

When you need the ultimate capture and playback solution then Blackmagic Design's UltraStudio 4K Extreme [model# BDLKULSR4KEXTR] is a terrific choice as its most powerful video capture and playback product available. It features the latest, most advanced 12G-SDI and HDMI 2.0 connections for working with high frame rate 60 frame per second, deep 12-bit color images at massive 4K resolutions, even in stereoscopic. It also includes a wider range of analog and digital connections than any other UltraStudio model so it can be used with virtually any camera, deck, router or display. For even higher performance, you can connect UltraStudio 4K Extreme to your computer using the PCIe connection so you can work with super high resolution, deep 12-bit RGB and 4K stereoscopic 3D files. Or use the built in ProRes hardware encoder when running on Mac OS X to reduce data rates so you can edit large 4K files even on laptops.

Blackmagic Design UltraStudio 4k Extreme Includes:

  • UltraStudio 4K Extreme
  • Software SD card
  • Resolve Lite SD card

Blackmagic Design UltraStudio 4k Extreme Features:

  • Built In Hardware Video Encoding
    The UltraStudio 4KExtreme model features a built in multi format hardware encoder that lets youcapture to H.265 and ProRes files. H.265 is quickly becoming the compressionstandard for distributing Ultra HD content online, and ProRes is the world’smost popular post production format. When selected for ProRes on Mac OS X, thebuilt in hardware encoder encodes the video in real time allowing you to gobeyond the speed of Thunderbolt because high resolution and high frame ratevideo can be compressed internally and then only the lower data rate ProResdata is transferred over the Thunderbolt connection. Realtime ProRes encodingalso means you can capture higher resolution formats on slower computers, likelaptops, that normally wouldn’t be able to handle them, dramatically loweringthe cost and speed requirements of your workstations.
  • Highest Quality Connections
    UltraStudio 4K Extremefeatures Quad Link 12G-SDI working with 2160p60 over a single cable, or evenDual Link or Quad Link SDI. Also includes HDMI 2.0, analog component, 4channel XLR analog and 2 channels AES/EBU digital audio, timecode, referenceand serial deck control. Connects via Thunderbolt or with an optional PCIeadapter for higher frame rates and 4K RGB workflows.
  • The Power of Thunderbolt™
    Built on revolutionaryThunderbolt™ technology, UltraStudio uses a blazingly fast single cableconnection to your computer that has the bandwidth to handle the highestresolution video formats easily! Thunderbolt ensures low latency and highlyaccurate time synchronization for the highest quality capture and playback.UltraStudio Express and UltraStudio Mini models are powered via theThunderbolt connection so they are extremely portable. The high performanceUltraStudio 4K and UltraStudio 4K Extreme models feature double speedThunderbolt 2 with loop thru and 6G-SDI or 12G-SDI, making them ideal fordemanding 3D stereoscopic workflows, Ultra HD and DCI 4K.
  • Unmatched Quality - Amazing 4K resolutions in compressed oruncompressed
    UltraStudio 4K supports popular compressed videoformats such as ProRes and DNxHD as well as 10-bit uncompressed video, soyou’re not locked into a single file format. When working with uncompressedvideo all captured images are a perfect pixel-for-pixel clone of the sourcewithout any quality loss, so you have the confidence you’re working at theabsolute highest quality possible. Get the sharpest keying with green screens,cleanest compositions, superior color correction and more! Ultra HD 4K has 4times the resolution of 1080HD for amazing looking images!
  • 12G SDI - Incredible speed for high frame rate UltraHD
    UltraStudio 4K Extreme features the latest 12G-SDI technology,making it the world’s most powerful video capture and playback solution! Theincredible speed of 12G-SDI means UltraStudio 4K Extreme can support bothcapture and playback of Ultra HD and 4K 60p over a single BNC cable! Becausethe 12G-SDI connections are multi rate, you can still connect to all yourexisting equipment. Only 12G-SDI gives you the compatibility to connect to allyour existing SD and HD equipment but also supports the future with all UltraHD formats up to 2160p60. UltraStudio 4K Extreme even supports dual link12G-SDI so you can do stereoscopic and simultaneous fill and key all in realtime!
  • Use Your Favorite Software - UltraStudio 4k Extreme works with thesoftware you love to use!
    • Mac OS X
      No other capture and playback cards are supported by more software applications for Mac OS X. Get drivers that work with fantastic editing software such as Avid Media Composer, Final Cut Pro X, Premiere ProCC, Symphony, and News Cutter. For visual effects get full compatibility with Fusion, After Effects CC and Photoshop CC. For audio get compatibility with ProTools, Nuendo, and Cubase. For streaming use Flash Media Encoder, Wirecast, Livestream Procaster.
    • Windows
      For Windows you get access to a massive range of software because DeckLink supports WDM, DirectShow, and QuickTime! For editing, you can use Avid Media Composer, Avid News Cutter, Premiere Pro, Sony Vegas Pro, Corel VideoStudio, CyberLink Power Director, and MAGIX Video Pro. For visual effects use Fusion, After Effects CC, and Photoshop CC. Audio software supported includes Steinberg Nuendo and Cubase. When streaming, youget compatibility with Flash Media Encoder, Xsplit Broadcaster, Wirecast, and Livestream Procaster.

Blackmagic Design UltraStudio 4k Extreme Specifications:

General

  • Manufacturer Part #: BDLKULSR4KEXTR

Connections

  • SDI Video Input: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K.Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
  • SDI Video Loop: 4 x reclocked SD/HD/2K/4K linked to corresponding inputs.
  • SDI Video Output: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K.Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
  • SDI Video Repeated Output: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3Dswitchable.
  • Optical Fiber Input/Output: 2 x 12Gb/s Optical Fiber (Optional-sold separately).
  • HDMI Video Input: HDMI 2.0 type A connector with support for 2160p60
  • HDMI Video Output: HDMI 2.0 type A connector with support for 2160p60
  • Analog Video Input: 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC
  • Analog Video Output: 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC
  • SDI Audio Input: 16 Channels embedded in SD/HD/2K/4K.
  • SDI Audio Output: 16 Channels embedded in SD/HD/2K/4K.
  • HDMI Audio Input: 8 Channels embedded in SD/HD/4K.
  • HDMI Audio Output: 8 Channels embedded in SD/HD/4K.
  • Analog Audio Input: 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
  • Analog Audio Output: 4 Channels of professional balanced analog audio via XLR connectors.
  • AES/EBU Audio Input: 2 Channels unbalanced with sample rate converter on BNC connector.
  • AES/EBU Audio Output: 2 Channels unbalanced on BNC connector.
  • Mic Input: 1 x 48V microphone input via XLR connector. Phantom Power switchable via software control.
  • Timecode Input: 1 x XLR Input.
  • Timecode Output: 1 x XLR Output.
  • Sync Input: 1 x Reference input. Blackburst in SD or Tri-Sync in HD.
  • Sync Output: 1 x Reference Loop Output. Blackburst in SD or Tri-Sync in HD.
  • Device Control: 2 x Sony™ compatible RS-422 deck control ports. Serial ports TxRx direction reversible under software control.
  • Computer Interface: Thunderbolt™ 2, PCI Express, USB.
  • Power: 2 x built-in international AC power supply with IEC C14 inlet. 120-240V, 50-60Hz.

UltraStudio 4K Extreme

Codecs

  • Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software

  • Software Included
    Resolve Lite, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS X. Resolve Lite, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Windows 7 and Windows 8. Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
  • Internal Software Upgrade
    Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
    requirements.

Software Applications

  • DaVinci Resolve
  • Fusion
  • Final Cut Pro X
  • Premiere Pro CC
  • Avid Media Composer
  • After Effects CC
  • Avid Pro Tools
  • Steinberg Cubase
  • Autodesk Smoke
  • Photoshop CC
  • Other supported applications include: Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

SDI Video Standards

  • SD Format Support
    525/29.97 NTSC, 625/25 PAL.
  • HD Format Support
    1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
  • 2K Format Support
    2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.
  • 4K Format Support
    3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25.
  • SDI Compliance
    SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M level A, SMPTE 425M level B, ITU-R BT.656 and ITU-R BT.601.
  • SDI Audio Sampling
    Television standard sample rate of 48 kHz and 24-bit.
  • SDI Video Sampling
    4:2:2, 4:4:4 and 4:4:4:4.
  • SDI Color Precision
    8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4.
  • SDI Color Space
    REC 601, REC 709.
  • SDI Configuration
    SDI output is configurable for Quad Link 3Gb/s via Blackmagic Desktop Video Utility. When using single link 12Gb/s on SDI A or dual link 6Gb/s on SDI A and B, SDI C and D will output downconverted HD.
  • SDI Metadata Support
    VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.

HDMI Video Standards

  • SD Format Support
    525/29.97 NTSC, 625/25 PAL.
  • HD Format Support
    1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
  • 4K Format Support
    3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24.
  • Audio Sampling
    Television standard sample rate of 48 kHz and 24-bit.
  • HDMI Video Sampling
    4:2:2 and 4:4:4.
  • HDMI Color Precision
    10-bit RGB in HD, 10-bit YUV in 4K.
  • HDMI Configuration
    HDMI 2.0 supports Deep Color and automatically configures to connected display.
  • Multiple Rate Support
    HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD.
  • Copy Protection
    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

  • Encoding
    Hardware based real time h.265 encoder.
  • Colorspace Conversion
    Hardware based real time.
  • 3D Processing
    Dual stream and frame packed capture & playback.
  • Ultra HD Down Conversion
    Built in, high quality hardware down converter outputs Ultra HD to HD or HD to SD downconverted signal on SDI B and SD on Component and NTSC/PAL. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3.
  • HD Up Conversion
    Built-in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
  • HD Cross Conversion
    Built in, high quality hardware cross-conversion from 720p to 1080i and 1080i to 720p on playback.
  • Real Time Effects
    DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
  • Physical Installation
    Requires computer with either a Thunderbolt port or available PCIe slot. PCIe cable and interface card available separately. Please check support pages to see the full system requirement.

Power Requirements

  • 2 x built-in international AC power supply with IEC C14 inlet. 120-240V, 50-60Hz.

Environmental Specifications

  • Operating Temperature: 5° to 40° C (41° to 104° F)
  • Storage Temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing

Warranty

  • 3 Year Limited Manufacturer's Warranty.
For UltraStudio 4K Extreme
Blackmagic Design PCIe Cable Kit For UltraStudio 4K Extreme
This PCIe cable kit from Blackmagic (part no. BDLKULSR4KEXTSPK) is intended for use with Blackmagic's UltraStudio 4K Extreme.
