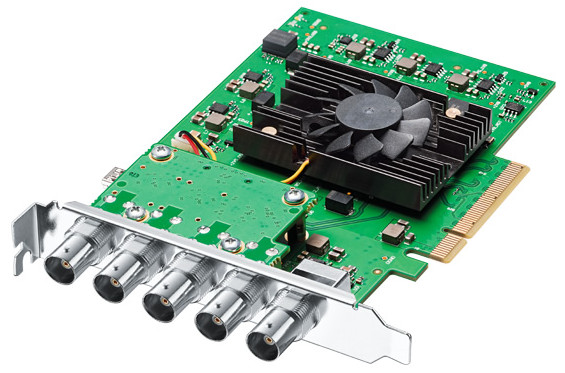

Blackmagic Design BDLKHCPRO4K12G
DeckLink 4k Pro

OUR PART #:  BDLKHCPRO4K12G

Our Price: $565.25
List Price: $595.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Blackmagic Design BDLKHCPRO4K12G
Qty:
In Stock

Similar Products

The Blackmagic Design BDLKHCPRO4K12G is the DeckLink 4K Pro which is a high performance PCIe capture and playback card with advanced 12G-SDI for working with the latest high frame rate Ultra HD and DCI 4K formats at up to 60 frames per second! Ideal for both traditional 2D and high end 3D stereoscopic workflows, you get support for full resolution, deep color YUV and 12-bit RGB 4:4:4 images. DeckLink 4K Pro features two multi rate 12G-SDI inputs and outputs with support for 16 channels of embedded audio, along with a connection for reference input. Because the connections are multi rate, it works with virtually every SD, HD, Ultra HD and 4K format. DeckLink 4K Pro is perfect for high end film, television, and commercial editing, visual effects, and color grading projects.

Highest Quality Connections
Every DeckLink card features the highest quality connections so you get pristine video and audio quality and can connect to the widest range of professional SDI equipment. DeckLink 4K Extreme 12G includes Dual Link 12G-SDI, HDMI 4K, analog video, as well as 2 channels of AES/EBU audio and 2 channels of balanced analog audio in and out. DeckLink Studio 4K includes 6G-SDI, HDMI 1.4b, analog component, S-Video, composite video, 2 channels of AES/EBU audio and 4 channels of balanced analog audio in and out. You also get a down converted SD output. DeckLink SDI 4K is perfect for high quality 10 bit SDI use only. All models include black burst/tri-sync reference and serial deck control. All DeckLink 4K models switch between SD and HD and Ultra HD, while the advanced DeckLink 4K Extreme 12G and DeckLink 4K Pro support DCI 4K and other high frame rate feature film formats.

Unrivaled Video Quality
DeckLink lets you work with compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed video. When working with uncompressed, all images are a mathematically perfect pixel-for-pixel clone of the source, without any generational loss, so you have the confidence you’re working at the absolute highest quality possible. Get sharper keying with green screens, cleaner compositions, superior color correction and more! Should you need to use compression, support for industry leading file formats ensures that you can maintain the highest quality throughout post production.

Advanced Technology
Get the latest 6G-SDI and 12G-SDI technology so you can capture and playback in full resolution Ultra HD video, while remaining fully compatible with all SD and HD-SDI equipment! That’s 4 times the resolution of regular 1080 HD video at a massive 3840 x 2160 image size! DeckLink SDI 4K and the DeckLink Studio 4K include 6G-SDI, while the advanced DeckLink 4K Pro and DeckLink 4K Extreme 12G include Dual Link 12G-SDI connections for higher color resolution, dual stream 3D stereoscopic support and frame rates up to Ultra HD 60p! The DeckLink 4K Pro and DeckLink 4K Extreme 12G are the perfect choice for DaVinci Resolve editing and color correction.

Use Your Favorite Software
DeckLink cards work with the software you love to use!

  • Mac OS X
    No other capture and playback cards are supported by moresoftware applications for Mac OS X. Get drivers that work with fantasticediting software such as Avid Media Composer, Final Cut Pro X, Premiere ProCC,Symphony and News Cutter. For visual effects get full compatibility withFusion, After Effects CC, and Photoshop CC. For audio get compatibility withProTools, Nuendo, and Cubase. For streaming use Flash Media Encoder, Wirecast,Livestream Procaster.
  • Windows
    For Windows you get access to a massive range of softwarebecause DeckLink supports WDM, DirectShow and QuickTime! For editing you canuse Avid Media Composer, Avid News Cutter, Premiere Pro, Sony Vegas Pro, CorelVideoStudio, CyberLink Power Director, and MAGIX Video Pro. For visual effectsuse Fusion, After Effects CC, and Photoshop CC. Audio software supportedincludes Steinberg Nuendo and Cubase. When streaming you get compatibilitywith Flash Media Encoder, Xsplit Broadcaster, Wirecast, and LivestreamProcaster.
  • Linux
    DeckLink cards are open standard capture cards and are perfectforthe development of Linux based video applications. The availability of a free,well documented SDK makes it easy for you to develop specific solutions tomeet your needs, or to work with solutions that have been developed by others.Blackmagic’s Design Media Express is also available for capture and playbackwhen using DeckLink with Linux operating systems.

Blackmagic Design DeckLink 4k Pro Specifications:

Connections

  • SDI Video Input:  x 12Gb/s SD/HD/2K/4K. Supports single link and dual link 4:2:2/4:4:4.
  • SDI Video Output: 2 x 12Gb/s SD/HD/2K/4K. Supports single link and dual link 4:2:2/4:4:4.
  • SDI Audio Input: 16 Channels embedded in SD/HD/2K/4K.
  • SDI Audio Output: 16 Channels embedded in SD/HD/2K/4K.
  • Sync Input: Black burst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format.
  • Computer Interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCIe Slots.

DeckLink 4K Pro

Codecs

  • Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software

  • Software Included
    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Desktop Video and Blackmagic driver on Linux.
  • Internal Software Upgrade
    Firmware built into software driver. Loaded at system start or via updater software.
  • Physical Installation
    PCI Express 8 lane generation 2, compatible with 8, 16 lane PCI Express slots on Mac OS X, Windows and Linux. Please check the Support pages to see the full system requirements.

Software Applications

  • DaVinci Resolve
  • Fusion
  • Final Cut Pro X
  • Premiere Pro CC
  • Avid Media Composer
  • After Effects CC
  • Avid Pro Tools
  • Steinberg Cubase
  • Autodesk Smoke
  • Photoshop CC
  • Other supported applications include: Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

Video Standards

  • SD Format Support
    525/29.97 NTSC, 62525 PAL.
  • HD Format Support
    1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
  • 2K Format Support
    2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.
  • 4K Format Support
    3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25.
  • SDI Compliance
    SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M Level A and Level B, ITU-R BT.656 and ITU-R BT.601.
  • SDI Metadata Support
    VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
  • Audio Sampling
    Television standard sample rate of 48 kHz at 24-bit.
  • SDI Video Sampling
    4:2:2, 4:4:4 and 4:4:4:4
  • SDI Color Precision
    8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4 in HD, 2K and 4K
  • Color Space
    REC 601, REC 709
  • Multiple Rate Support
    SDI video connections are switchable between SD/HD/2K and 4K.

Processing

  • Colorspace Conversion
    Hardware based real time on output.
  • 3D Processing
    Left eye/right eye dual stream capture & playback.
  • Ultra HD to HD Down Conversion
    Built in, high quality hardware down converter outputs Ultra HD to HD or HD to SD down converted signal on SDI B. Down converted SD selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
  • HD Up Conversion
    Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
  • HD Cross Conversion
    Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.
  • Real Time Effects
    Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve.

EMC Certifications

  • EMC, UL, FCC, CE, C-Tick and KCC.

Environmental Specifications

  • Operating Temperature: 5° to 40° C (41° to 104° F)
  • Storage Temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing

What's Included

  • DeckLink 4K Pro
  • Software SD Card

Warranty

  • 3 Year Limited Manufacturer's Warranty.
