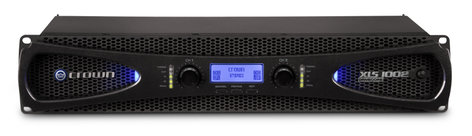

Crown XLS 1002
DriveCoreā„¢ 2 Series 2-Channel 350W (4 Ohms) Power Amplifier with Onboard DSP

OUR PART #:  XLS1002

The Crown XLS 1002 is a DriveCoreā„¢ 2 series 2-channel power amplifier that features 350 Watts of power at 4 Ohms.
Learn More
Our Price: $299.00
List Price: $499.00
You save 40%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Crown XLS 1002
Qty:
In Stock

Similar Products

The Crown XLS 1002 is a DriveCoreā„¢ 2 series 2-channel power amplifier that features 350 Watts of power at 4 Ohms. The XLS DriveCore 2 Series amplifiers feature a sleek look, an LCD display that is three times larger than its predecessors, and more DSP with higher capabilities. Like its predecessor, the XLS DriveCore 2 Series is ultra-efficient with Crown's patented DriveCore technology and can drive up to 2400 Watts at 4 Ohms bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

Crown XLS 1002 Features:

  • Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lbs (5 kg)
  • Higher DSP capabilities:  More control; has band pass filter per channel
  • Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
  • Selectable input sensitivity; 1.4 Vrms and 0.775 Vrms options so that amp can be driven at full power
  • Set sleep mode after specified time without having to press a button
  • Security setting disables menu buttons; menu locked/unlocked by entering combination
  • System reset allows factory settings to be restored
  • Remote power trigger
  • Peakxā„¢ Limiters provide maximum output while protecting your speakers
  • XLR, 1/4", RCA inputs provide flexibility
  • Integrated PureBandā„¢ Crossover System for better performance and control
  • Efficient forced-air fans prevent excessive thermal buildup

Crown XLS 1002 Specifications:

  • Power Output:
    • Channels:  2
      • 2 Ohms Dual:  550 Watts
      • 4 Ohms Dual:  350 Watts
      • 8 Ohms Dual:  215 Watts
      • 4 Ohms Bridged:  1100 Watts
      • 8 Ohms Bridge:  700 Watts
  • Performance:
    • Sensitivity:  0.775 Vrms or 1.4 Vrms
    • Frequency Response (at 1W, 20Hz-20kHz):  +0dB, -1dB
    • Signal-to-Noise Ratio (rated as dBr to full rated 8 Ohm power output; A-weighted):  >97dB
    • Total Harmonic Distortion (THD):  >0.5%
    • Intermodulation Distortion (60Hz and 7kHz at 4:1) from full rated output to -30dB:  <0.3%
    • Damping Factor (8 Ohms, 10Hz-400Hz):  >200
    • Crosstalk (below rated 8 Ohm power):
      • At 1 kHz:  >85dB
      • At 20 kHz:  >55dB
  • Dimensions: 19" W x 3.5" H x 7.7" D (48.3 x 8.9 x 19.6 cm)
  • Net Weight: 8.6 lbs (3.9 kg)
