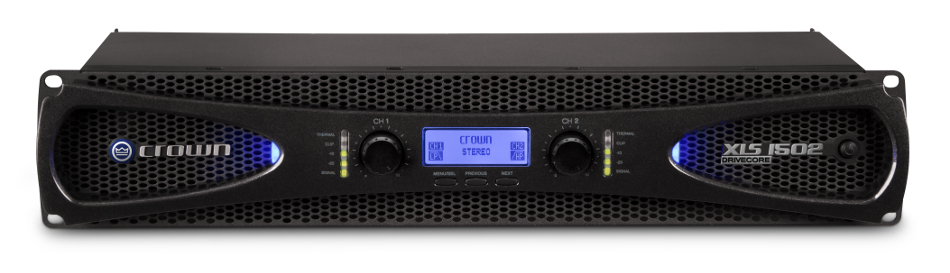

Crown XLS 1502
DriveCore™ 2 Series 2-Channel 525W (4 Ohms) Power Amplifier with Onboard DSP

OUR PART #:  XLS1502

The Crown XLS 1502 is a DriveCore™ 2 series 2-channel power amplifier that features 525 Watts of power at 4 Ohms.
Learn More
Our Price: $399.00

5.0 / 5

★★★★★ 1 Review. Write Yours
Crown XLS 1502
Qty:
In Stock

Related Products

The Crown XLS 1502 is a DriveCore™ 2 series 2-channel power amplifier that features 525 Watts of power at 4 Ohms. The XLS DriveCore 2 Series amplifiers feature a sleek look, an LCD display that is three times larger than its predecessors, and more DSP with higher capabilities. Like its predecessor, the XLS DriveCore 2 Series is ultra-efficient with Crown’s patented DriveCore technology and can drive up to 2400 Watts at 4 Ohms bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

Crown XLS 1502 Features:

  • Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lbs (5 kg)
  • Higher DSP capabilities: More control; has band pass filter per channel
  • Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
  • Selectable input sensitivity; 1.4 Vrms and 0.775 Vrms options so that amp can be driven at full power
  • Set sleep mode after specified time without having to press a button
  • Security setting disables menu buttons; menu locked/unlocked by entering combination
  • System reset allows factory settings to be restored
  • Remote power trigger
  • Peakx™ Limiters provide maximum output while protecting your speakers
  • XLR, 1/4", RCA inputs provide flexibility
  • Integrated PureBand™ Crossover System for better performance and control
  • Efficient forced-air fans prevent excessive thermal buildup

Crown XLS 1502 Specifications:

  • Power Output:
    • Channels: 2
      • 2 Ohms Dual: 775 Watts
      • 4 Ohms Dual: 525 Watts
      • 8 Ohms Dual: 300 Watts
      • 4 Ohms Bridged: 1550 Watts
      • 8 Ohms Bridge: 1050 Watts
  • Performance:
    • Sensitivity: 0.775 Vrms or 1.4 Vrms
    • Frequency Response (at 1W, 20Hz-20kHz): +0dB, -1dB
    • Signal-to-Noise Ratio (rated as dBr to full rated 8 Ohm power output; A-weighted): >103dB
    • Total Harmonic Distortion (THD): >0.5%
    • Intermodulation Distortion (60Hz and 7kHz at 4:1) from full rated output to -30dB: <0.3%
    • Damping Factor (8 Ohms, 10Hz-400Hz): >200
    • Crosstalk (below rated 8 Ohm power):
      • At 1 kHz: >85dB
      • At 20 kHz: >55dB
  • Dimensions (WxHxD): 19" x 3.5" x 7.7" (48.3 x 8.9 x 19.6 cm)
  • Net Weight: 8.6 lbs (3.9 kg)
