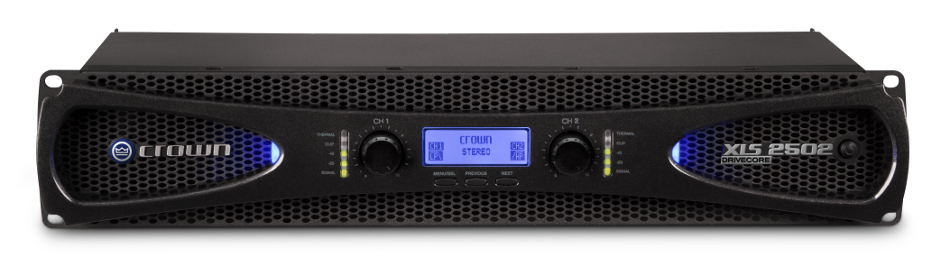

Crown XLS 2502
DriveCore™ 2 Series 2-Channel 775W (4 Ohms) Power Amplifier with Onboard DSP

OUR PART #:  XLS2502

The Crown XLS 2502 is a DriveCore™ 2 series 2-channel power amplifier that features 775 Watts of power at 4 Ohms.
Learn More
Our Price: $599.00
Write the first review.
Crown XLS 2502
In Stock
Related Products

The Crown XLS 2502 is a DriveCore™ 2 series 2-channel power amplifier that features 775 Watts of power at 4 Ohms. The XLS DriveCore 2 Series amplifiers feature a sleek look, an LCD display that is three times larger than its predecessors, and more DSP with higher capabilities. Like its predecessor, the XLS DriveCore 2 Series is ultra-efficient with Crown’s patented DriveCore technology and can drive up to 2400 Watts at 4 Ohms bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

Crown XLS 2502 Features:

  • Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lbs (5 kg)
  • Higher DSP capabilities:  More control; has band pass filter per channel
  • Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
  • Selectable input sensitivity; 1.4 Vrms and 0.775 Vrms options so that amp can be driven at full power
  • Set sleep mode after specified time without having to press a button
  • Security setting disables menu buttons; menu locked/unlocked by entering combination
  • System reset allows factory settings to be restored
  • Remote power trigger
  • Peakx™ Limiters provide maximum output while protecting your speakers
  • XLR, 1/4", RCA inputs provide flexibility
  • Integrated PureBand™ Crossover System for better performance and control
  • Efficient forced-air fans prevent excessive thermal buildup

Crown XLS 2502 Specifications:

  • Power Output:
    • Channels:  2
      • 2 Ohms Dual:  1200 Watts
      • 4 Ohms Dual:  775 Watts
      • 8 Ohms Dual:  440 Watts
      • 4 Ohms Bridged:  2400 Watts
      • 8 Ohms Bridge:  1550 Watts
  • Performance:
    • Sensitivity:  0.775 Vrms or 1.4 Vrms
    • Frequency Response (at 1W, 20Hz-20kHz):  +0dB, -1dB
    • Signal-to-Noise Ratio (rated as dBr to full rated 8 Ohm power output; A-weighted):  >103dB
    • Total Harmonic Distortion (THD):  >0.5%
    • Intermodulation Distortion (60Hz and 7kHz at 4:1) from full rated output to -30dB:  <0.3%
    • Damping Factor (8 Ohms, 10Hz-400Hz):  >200
    • Crosstalk (below rated 8 Ohm power):
      • At 1 kHz:  >85dB
      • At 20 kHz:  >55dB
  • Dimensions: 19" W x 3.5" H x 10.7" D (48.3 x 8.9 x 27.2 cm)
  • Net Weight: 10.8 lbs (4.9 kg)
