West Penn 281
500 ft of 7-Conductor 18AWGG Stranded Unshielded with PVC Jacket

OUR PART #  281-500

Our Price: $223.74
List Price: $376.10
You save 41%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

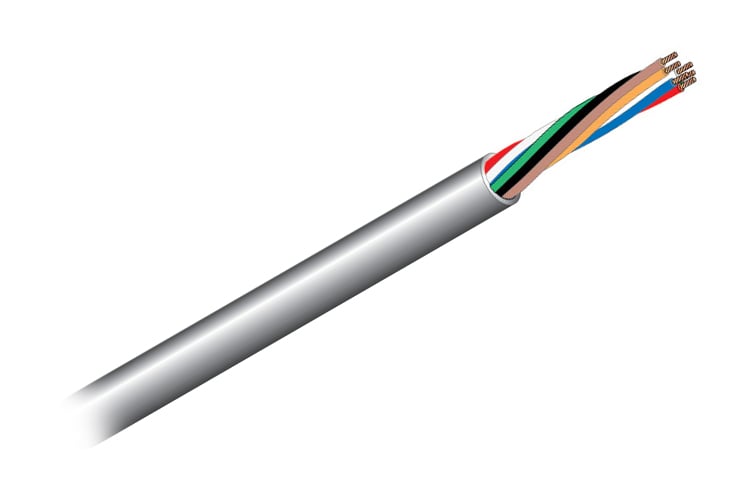

West Penn's 281 cable is a 7-conductor, 18AWG unshielded audio cable with stranded bare copper conductors and an overall jacket.

NEC Rating: CMR, NEC Article 800

Approvals: (UL) C(UL) Listed or c(ETL)us Listed

Applications: Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.

Construction Parameters:

  • Conductor: 18 AWG Bare Copper
  • Stranding: 7x26
  • Insulation Material: Polypropylene
  • Insulation Thickness: 0.008" Nom.
  • Number of Conductors: 7
  • Shield: None
  • Drain: None
  • Jacket Material: PVC
  • Jacket Thickness: 0.017" Nom.
  • Overall Cable Diameter: 0.225" Nom.
  • Approximate Cable Weight: 23.3 lbs/1000 ft. Nom.
  • Flame Rating: UL 1666 Riser Flame Test

Electrical & Environmental Properties:

  • Temperature Rating: -20°C To +60°C
  • Operating Voltage: 300 V RMS
  • Max. Capacitance Between Conductors @ 1 KHz: 21.5 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 6.2 Ohms/1M' Nom.
  • Insulation Colors: Black, Red, White, Green, Brown, Blue, Orange
  • Jacket Color: Gray
  • RoHS Compliant: Yes

Mechanical Properties:

  • Max. Recommended Pull Tension: 67.2 lbs.
  • Min. Bend Radius (Install): 1.7"
