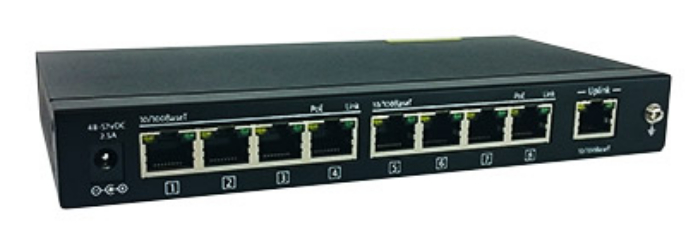

Intelix INT-IPSW1108
8 Port Network Switch with Uplink Port

OUR PART #:  INT-IPSW1108

The Intelix INT-IPSW1108 is an eight port 10/100BaseT Ethernet switch with PoE+ (up to 15w per downlink port). The switch features two operation modes: Default and Isolate.
Learn More
Our Price: $179.96
List Price: $199.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Intelix INT-IPSW1108
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Intelix INT-IPSW1108 is an eight port 10/100BaseT Ethernet switch with PoE+ (up to 15w per downlink port). The switch features two operation modes: Default and Isolate. In Default mode, the switch will pass data between all downlink and uplink ports, similar to a standard Ethernet switch. In Isolate mode, downlink ports will only communicate with the uplink port. The INT-IPSW1108 includes a Kensington lock slot to prevent theft.

Applications:

  • Small networking environments
  • LAN 10/100BaseT infrastructure
  • SOHO Networking infrastructure component

Intelix INT-IPSW1108 Features:

  • PoE+ (IEEE 802.3af/at (Type 1)) on 8 downlink ports
  • Uplink port
  • 1.8 Gbps backplane bandwidth
  • 10/100 Mbps bandwidth per port (including uplink)
  • Isolation mode switch to direct distributed traffic

Intelix INT-IPSW1108 Specifications:

  • Input/Output Connections:
    • Ethernet Uplink: One (1) 8P8C-F
    • Ethernet Downlink: Eight (8) 8P8C-F
    • DC Power 48V-57V at 2.5A: One (1) Barrel (5.5 mm OD; 2.6 mm ID)
  • Ethernet Signal Characteristics:
    • Maximum Distance: 100m
    • Cable Requirements: Solid core Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
    • Ethernet Standards: IEEE 802.3/802.3u/802.3x/802.1p/802.1q
    • PoE Standards: IEEE 802.3af/at (Type 1)
    • Backplane Bandwidth: 1.8 Gbps
    • Packet Forwarding Rate: 1.34 Mbps
    • Packet Buffer: 768K
  • Chassis and Environmental:
    • Enclosure Material: Galvanized Steel
    • Enclosure Dimensions (H x W x D): 7.87" x 5.31" x 4.05" (27 mm x 200 mm x 104 mm)
    • Shipping Weight: 2.75 lbs (1.25 kg)
    • Operating Temperature: +32° to +131° F (0° to +55° C)
    • Operating Humidity: 10% to 90%, Non-condensing
    • Storage Temperature: -40° to +185° F (-40° to +85° C)
    • Storage Humidity: 10% to 85%, Non-condensing
  • Power and Regulatory:
    • Power Supply Input: 100-240V AC / 50-60 Hz @ 2 A
    • Power Supply Output: 54V DC at 1.1 A Double Check
    • Power Consumption: <5W, PoE output <120W
    • ESD Protection: ±15 kV
    • Product Regulatory: CE, FCC, RoHS
    • Power Supply Regulatory: CE, FCC, RoHS
  • Other:
    • Warranty: 2 years
    • Security: Kensington Slot
    • Diagnostic Indicators: Chassis: Power, Ethernet (2 ea), Isolate Mode; Uplink: Link Status (amber and green); Downlink: Link Status (green), PoE Status (Amber)
    • Included Accessories: Power supply, IEC power cable (US), Rubber feet (4 ea), Mounting brackets (2 ea) with screws

NOTE: Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches.
