Nexo GEOM620-PW
Full-Range Loudspeaker, White

OUR PART #:  GEOM620-PW

The NEXO GEO M620 is a full-range unit for stand-alone, curved array or line array application.
Learn More
Similar Products

The NEXO GEO M620 is a full-range unit for stand-alone, curved array or line array application. The NEXO GEOM620 is extremely compact in size, and the module punches well above its weight of less than 10 kgs. Using a NEXO-designed long-excursion high-efficiency 6.5" LF driver and a 1" throat driver on a BEA/FEA optimized HR Wavesource, the GEOM620 delivers a frequency response of 80Hz-19kHz ±3dB, with nominal peak SPL of 127dB.  HF dispersion is 80° or 120° horizontal, with 20° vertical coverage, 0° to 20° splay when arrayed. Using NEXO’s HRW patented waveguide for optimum HF coupling between elements, the GEOM620 performs in a variety of configurations, facilitated by a fully-integrated 3-point rigging system.

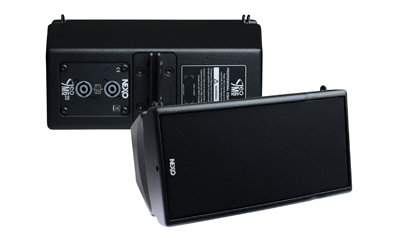

NOTE: Product image is of black version, this model is white.

NEXO GEO M620 Features:

  • Components:
    • LF: 1 x 6.5" 8oHms long excursion driver
    • RF: 1 x 1" throat driver on a BEA/FEA optimized HR Wavesource
  • Connectors: 2 x NL4 Speakon 4 poles
  • Construction: Lighweight Polyurethane composite
  • Fittings:
    • Acoustic Fabric fitted front grille
    • Front Finish
    • Handles
    • Side Handles
  • Height x Width x Depth: 191 mm x 373 mm x 260 mm
  • Speaker Cabling: 2+/2-
  • Weight (Net): 9.7kg

NEXO GEO M620 Specifications:

  • Crossover Frequencies: LF-HF: 2kHz Passive
  • Frequency Response: 80Hz - 19kHz -/+3dB
  • HF Dispersion: 80 or 120 degrees Horizontal (CCD)
  • Nominal Peak SPL @ 1m: 127dB
  • Nominal Impedance: 8 oHms
  • Recommended Amplifiers: 450W per box (3 boxes max in parallel on one channel amplifier)
  • Sensitivity 1W @ 1m: 95db SPL Nominal
  • Usable range @ -6db: 75 Hz - 20kHz

NOTE: Specifications are based on this speaker with NEXO TDController amplifier (sold separately) . The NEXO TD Controller's presets are precisely matched to the GEO M6 Series cabinets. Using GEO M6 Series cabinets without a properly connected NEXO TDController will result in poor sound quality and can damage components. Please contact your Sales Representative for more information.
