Nexo GEOM6B-PW
Bass Extension for Loudspeaker, White

OUR PART #:  GEOM6B-PW

The NEXO GEO M6B is a low and mid-frequency partner module to the GEO M620, for applications which demand more powerful reinforcement, such as live music.
Learn More

Call for price! Not available online.

Similar Products

The NEXO GEO M6B is a low and mid-frequency partner module to the GEO M620, for applications which demand more powerful reinforcement, such as live music. With one 6.5" 8O long-excursion driver, the M6B weighs just 7.6kgs and shares the same physical footprint as the M620. This allows the cabinets to be arrayed together in the same column. Featuring a flare-shaped port tube to increase low frequency efficiency and linearity at high power, the M6B offers a usable range @-6dB of 70Hz-1kHz.

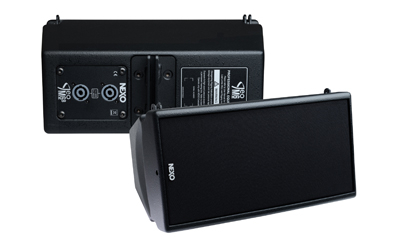

NOTE: Product image is of black version, this model is white.

NEXO GEO M6B Features:

  • Components: LF: 1 x 6.5" 8oHms long excursion driver
  • Connectors: 2 x NL4 Speakon 4 poles
  • Construction: Lightweight Polyurethane composite
  • Fittings:
    • Acoustic Fabric fitted front grille
    • Front Finish
    • Handles
    • Side Handles
  • Height x Width x Depth: 191 mm x 373mm x 260mm
  • Weight (Net): 7.6kg

NEXO GEO M6B Specifications:

  • Frequency Response: 75 Hz - 120Hz +/- 3dB (preset-dependent)
  • Nominal Peak SPL @ 1m: 125dB
  • Nominal Impedance: 8oHms
  • Recommended Amplifiers: 450W per box (3 boxes max inparallel on one channel amplifier)
  • Sensitivty 1W @ 1m: 94dB SPL Nominal
  • Speaker Cabling: 1+/1-
  • Usable Range @ -6dB: 70Hz - 1kHz

NOTE: Specifications are based on this bass extension with the NEXO TDController (sold separately). The NEXO TD Controller's presets are precisely matched to the GEO M6 Series cabinets. Using GEO M6 Series cabinets without a properly connected NEXO TDController will result in poor sound quality and can damage components. Please contact your Sales Representative for more information.
