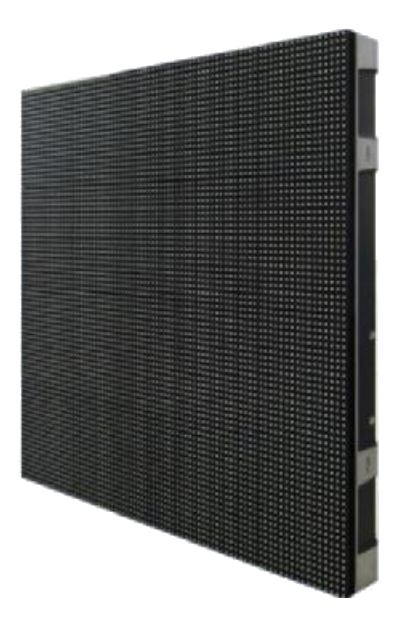

Vanguard LED Displays AO-P10.00-40
40 Panel Outdoor LED Video Display with 10mm Pixel Pitch

OUR PART #:  AO-P10.00-40

Call for price! Not available online.
List Price: $75,999.60

Similar Products

VANGUARD LED Displays offers the AO-P10.00-40 - a 40 Panel Outdoor Die-Cast Aluminum LED Screen System with a 10mm pixel pitch with a pixel configuration that is SMD 3-in-1. VANGUARD’s outdoor rental screens are water resistant at IP65 front and IP54 back while VANGUARD’s permanent outdoor LED screens are waterproof at IP 65 front and back. VANGUARD LED video screens feature Novastar controllers and receiving cards, and Meanwell Power supply units.

VANGUARD outdoor cabinets are constructed of die-cast aluminum, but certain outdoor permanent installation require iron cabinets. Hanging bars or permanent attachment points are available. VANGUARD includes software at no extra charge; and depending on your need VANGUARD can provide you with a media server that will make the entire system seamless.

In addition, VANGUARD LED Displays offers a full range of pixel pitches in its outdoor LED video displays selection from P6.25 P6.67, P7.81, P8, P8,925 and P10.

VANGUARD AO-P10.00-40 Includes:

  • 40 Display Panels
  • 40 Die-cast Aluminum Cabinets
  • 40 Silan LED Chip Models
  • 40 MBI5151 Driving IC Models
  • 40 5V60A UL Power Supply Units
  • 1 Novastar 660 Sending Card
  • 40 Novastar 300 Receiving Cards
  • 8 Hanging Bars
  • 6 Road Cases

VANGUARD AO-P10.00-40 Specifications:

  • Technical Parameters:
    • SMD 3-in-1 3020 Black:
      • Red LED:
        • Wave Length: 620-626nm
        • Viewing Angled (H/V): 140º/140º
        • Test Conditions: 25ºC, 20mA
      • Green LED:
        • Wave Length: 523-529nm
        • Viewing Angled (H/V): 140º/140º
        • Test Conditions: 25ºC, 20mA
      • Blue LED:
        • Wave Length: 467-473nm
        • Viewing Angled (H/V): 140º/140º
        • Test Conditions: 25ºC, 20mA
  • Module:
    • Pixel Pitch: 10 mm
    • Pixel Density: 15625 dots/m²
    • Pixel Configuration: 1R1G1B, SMD 3-in-1 3030 black face LED
    • Pixel Quantity (W x H): 32 x 16 pcs
    • Module Size: 12.6" x 6.3"
  • Cabinet:
    • Pixel Quantity (W x H): 64 x 64 pcs
    • Cabinet Size (W x H x D): 25.2" x 25.2" x 4.8"
    • Module Configuration (W x H): 2 x 4 pcs
    • Power Consumption:
      • 85W Average
      • 250W Max
    • Material: Die-casting Aluminum
    • Cabinet Weight: 27.6 lbs./pc
    • IP Rating: IP65 Front / IP65 Back
  • Screen:
    • Pixel Quantity (W x H): 512 x 320 pcs
    • Dimension (Ft.) (W x H): 16.8 x 10.5 ft.
    • Cabinet Configuration (W x H): 8 x 5 pcs
    • Brightness: > / = 5000 nits
    • Driving Method: 1/4 scan
    • Minimum Viewing Distance: 25 ft
    • Power Consumption:
        • 3400W Average
        • 10000: W Max
    • Input Voltage: AC220V/50Hz / AC110V/60Hz
    • Total Screen Weight: 1104 lbs.
    • Cascade Cabinet Quantity: 8 pcs
    • Hanging Cabinet Quantity: 15 pcs
    • Refresh Frequency: > / =2000Hz
    • Frame Frequency: 60Hz
    • Gray Scale: 14bits
    • Brightness Control:
        • 256 levels manually
        • 16 levels automatically
    • Dot Defects Rate: < / = 0.0001
    • Life Span: >100,000 hours
    • Operating Temperature: 14°F~122°F (-10°C~50°C)
    • Storage Temperature: -4°F~140°F (-20°C~60°C)
    • Operating Humidity: 20%~90% RH
    • Input Signal: DVI, HDMI
    • Communication Cable:
      • CAT5 (< / = 100m)
      • Optical Fiber (500m-15000m)
    • Certifications: ETL, CCC, CE
    • Receiving Card: Novastar 300
    • IC Driver: MBI5151
