Rosco Laboratories LitePad Vector Kit
3-Head LitePad Vector CCT Location Lighting Kit

OUR PART #  292030808120

Our Price: $3,656.25
List Price: $3,750.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

No matter if you're lighting corporate interviews, documentaries or reporting on the scene, shooters need the ability to quickly and professionally setup their lighting when they arrive at their location. The LitePad Vector Location Lighting Kit is designed to roll onto set and provide everything needed to establish a three-point lighting setup - anywhere you need it. This lighting kit (also known as 292030808120) contains three LitePad Vector CCT fixtures and three light stands in a rolling, hard-exterior, carrying case, which has empty slots inside for additional LitePad Vector accessories such as Cheeseplate Battery Holders. The sleek LitePad Vector Location Lighting Kit allows shooters to professionally wheel their lighting on set for a quick and efficient lighting setup on location.

Producing the same soft, even illumination LitePad is known for, LitePad Vector is the ideal lighting solution for cinematographers, gaers, videographers, lighting directors and photographers. The new 8”x8” LitePad Vector produces four times the output of its 12”x12” LitePad predecessors. The unit’s light-weight, compact form-factor, coupled with its on-board dimming and color temperature controls and its compatibility with standard Anton/Bauer or V-Mount battery packs, allow the LitePad Vector to easily go everywhere a flattering, soft, LED light is needed.

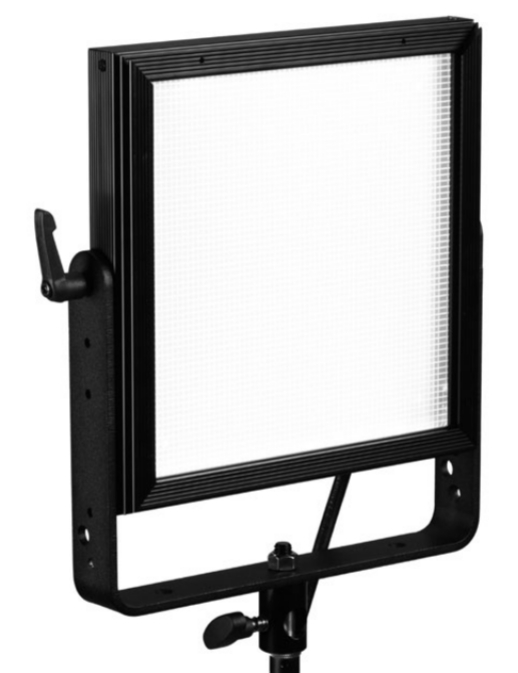

LitePad Vector is an edge-lit LED light source that generates a large volume of soft light for key, fill and backlighting needs. The high quality light output, and smooth, flicker-free dimming – coupled with its lightweight, compact form factor and optional battery operation – make LitePad Vector the ultimate portable light source.  Operational control using DMX 512 protocol makes LitePad Vector a versatile light source for studio environments. LitePad Vector is available in CCT (Variable White) and fixed Daylight models.

Rosco 3-Head LitePad Vector CCT Location Lighting Kit Includes:

  • (3) LitePad Vector CCT (Variable White) LED fixtures with yokes and power supplies
  • (1) Road case with rollers and handles
  • (3) 5/8" (16mm) Light Stand Receivers
  • (3) LitePad Light Stands
  • (3) LitePad Vector Honeycomb Eggcrates
  • (3) 8”x8” OPTI-FLECS LED Enhancement Filter Kits

Rosco LitePad Vector LED Features:

  • 1500 lux at one meter
  • Compact, light-weight form factor:
    • 8"x8" (200mm x 200mm)
    • Weighs under 4.5 lb (2 kg)
  • Available in two models:
    • LitePad Vector CCT: tunable white color temperatures ranging from 3000K to 6000K
    • LitePad Vector Daylight: fixed color temperature at 6000
  • Excellent color rendering – up to 93 CRI
  • On-board dimming and color temperature controls
  • DMX controllable via RJ45
  • 100-240 VAC power supply
  • Compatible with industry-standard Anton/Bauer orV-Mount battery packs
  • Accessory/gel slot on the front of the unit

Rosco 3-Head LitePad Vector CCT Location Lighting Kit Specifications:

LED Fixture Power

  • Input Voltage:
    • 12VDC
    • AC Power Transformer
  • Power Supply: Universal 100-240VAC input/12VDC-24VDC output
  • Power Consumption:
    • 65W
    • DC Operation via standard Anton/Bauer or V-Mount batteries (owner supplied)

LED Fixture Physical Characteristics

  • Dimensions: 8.25” x 8.25” x 2.82” (210 mm x 210 mm x72 mm) (excluding Yoke)
  • Dimensions: 9.7” x 12.5” x 2.82” (246 mm x 318 mm x72 mm) (including Yoke & Receiver)
  • Weight: 4.5 lb (2 kg) (including Power Supply, Yoke & Receiver)

LED Fixture Optical Characteristics

  • Color Temperature Range:
    • LitePad Vector CCT: 3000K – 6000K
    • LitePad Vector Daylight: 6000K
  • Data: DMX 512 - RJ45 In/Out
  • Approvals:
    • TUV/UL1573 and 8750
    • CE
    • RoHS
    • IP61 Rated

Kit Specifications

  • Weight: 45 lbs. (20.5 kg)
  • Dimensions: 29" x 18" x 11" (74 x 46 x 28cm)

Rosco Laboratories LitePad Vector Kit
3-Head LitePad Vector CCT Location Lighting Kit

OUR PART #  292030808120

Product Information:

No matter if you're lighting corporate interviews, documentaries or reporting on the scene, shooters need the ability to quickly and professionally setup their lighting when they arrive at their location. The LitePad Vector Location Lighting Kit is designed to roll onto set and provide everything needed to establish a three-point lighting setup - anywhere you need it. This lighting kit (also known as 292030808120) contains three LitePad Vector CCT fixtures and three light stands in a rolling, hard-exterior, carrying case, which has empty slots inside for additional LitePad Vector accessories such as Cheeseplate Battery Holders. The sleek LitePad Vector Location Lighting Kit allows shooters to professionally wheel their lighting on set for a quick and efficient lighting setup on location.

Producing the same soft, even illumination LitePad is known for, LitePad Vector is the ideal lighting solution for cinematographers, gaers, videographers, lighting directors and photographers. The new 8”x8” LitePad Vector produces four times the output of its 12”x12” LitePad predecessors. The unit’s light-weight, compact form-factor, coupled with its on-board dimming and color temperature controls and its compatibility with standard Anton/Bauer or V-Mount battery packs, allow the LitePad Vector to easily go everywhere a flattering, soft, LED light is needed.

LitePad Vector is an edge-lit LED light source that generates a large volume of soft light for key, fill and backlighting needs. The high quality light output, and smooth, flicker-free dimming – coupled with its lightweight, compact form factor and optional battery operation – make LitePad Vector the ultimate portable light source.  Operational control using DMX 512 protocol makes LitePad Vector a versatile light source for studio environments. LitePad Vector is available in CCT (Variable White) and fixed Daylight models.

Rosco 3-Head LitePad Vector CCT Location Lighting Kit Includes:

  • (3) LitePad Vector CCT (Variable White) LED fixtures with yokes and power supplies
  • (1) Road case with rollers and handles
  • (3) 5/8" (16mm) Light Stand Receivers
  • (3) LitePad Light Stands
  • (3) LitePad Vector Honeycomb Eggcrates
  • (3) 8”x8” OPTI-FLECS LED Enhancement Filter Kits

Rosco LitePad Vector LED Features:

  • 1500 lux at one meter
  • Compact, light-weight form factor:
    • 8"x8" (200mm x 200mm)
    • Weighs under 4.5 lb (2 kg)
  • Available in two models:
    • LitePad Vector CCT: tunable white color temperatures ranging from 3000K to 6000K
    • LitePad Vector Daylight: fixed color temperature at 6000
  • Excellent color rendering – up to 93 CRI
  • On-board dimming and color temperature controls
  • DMX controllable via RJ45
  • 100-240 VAC power supply
  • Compatible with industry-standard Anton/Bauer orV-Mount battery packs
  • Accessory/gel slot on the front of the unit

Rosco 3-Head LitePad Vector CCT Location Lighting Kit Specifications:

LED Fixture Power

  • Input Voltage:
    • 12VDC
    • AC Power Transformer
  • Power Supply: Universal 100-240VAC input/12VDC-24VDC output
  • Power Consumption:
    • 65W
    • DC Operation via standard Anton/Bauer or V-Mount batteries (owner supplied)

LED Fixture Physical Characteristics

  • Dimensions: 8.25” x 8.25” x 2.82” (210 mm x 210 mm x72 mm) (excluding Yoke)
  • Dimensions: 9.7” x 12.5” x 2.82” (246 mm x 318 mm x72 mm) (including Yoke & Receiver)
  • Weight: 4.5 lb (2 kg) (including Power Supply, Yoke & Receiver)

LED Fixture Optical Characteristics

  • Color Temperature Range:
    • LitePad Vector CCT: 3000K – 6000K
    • LitePad Vector Daylight: 6000K
  • Data: DMX 512 - RJ45 In/Out
  • Approvals:
    • TUV/UL1573 and 8750
    • CE
    • RoHS
    • IP61 Rated

Kit Specifications

  • Weight: 45 lbs. (20.5 kg)
  • Dimensions: 29" x 18" x 11" (74 x 46 x 28cm)
