Rosco Laboratories 292020808120
2-Head LitePad Vector CCT Backpack Kit

OUR PART #  292020808120

Our Price: $2,237.63
List Price: $2,295.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Whether it's on top of a mountain, deep inside an ice cave or an office building across town during rush hour, some locations are more remote than others - but they all need proper lighting. The LitePad Vector Backpack Kit from Rosco (also known as 292020808120) is the lighting solution for any location - wherever it may be. The kit contains two Vector CCT fixtures inside a durable, pro-grade backpack, which has empty slots for two Rosco LitePad light stands on either side. It also contains two Carabiner Bottle Holders that can be used as an innovative way to stabilize your lighting setup by clipping on your own filled water bottle to add weight to your light stands. This rugged LitePad Vector Backpack Kit allows shooters to sling two Vectors on their backs so that their lighting can trek with them, wherever their project takes them.

Producing the same soft, even illumination LitePad is known for, LitePad Vector is the ideal lighting solution for cinematographers, gaers, videographers, lighting directors and photographers. The new 8”x8” LitePad Vector produces four times the output of its 12”x12” LitePad predecessors. The unit’s light-weight, compact form-factor, coupled with its on-board dimming and color temperature controls and its compatibility with standard Anton/Bauer or V-Mount battery packs, allow the LitePad Vector to easily go everywhere a flattering, soft, LED light is needed.

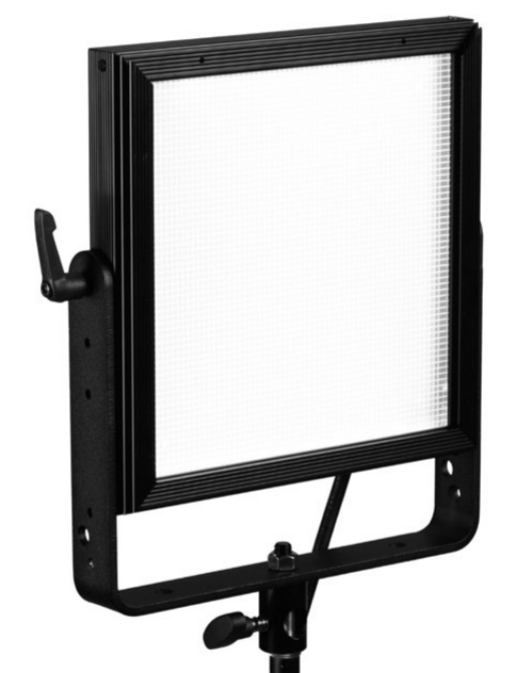

LitePad Vector is an edge-lit LED light source that generates a large volume of soft light for key, fill and backlighting needs. The high quality light output, and smooth, flicker-free dimming – coupled with its lightweight, compact form factor and optional battery operation – make LitePad Vector the ultimate portable light source.  Operational control using DMX 512 protocol makes LitePad Vector a versatile light source for studio environments. LitePad Vector is available in CCT (Variable White) and fixed Daylight models.

Rosco Laboratories Vector CCT Backpack Kit Includes:

  • Twp LitePad Vector CCT LED fixtures with yokes and100-240VAC power supplies
  • Pro-grade LitePad Vector Backpack
  • Two 5/8" (16mm) Light Stand Receivers
  • Two LitePad Vector Rain Covers
  • Two LitePad Carabiner Bottle Holders

Rosco Laboratories LitePad Vector LED Features:

  • 1500 lux at one meter
  • Compact, light-weight form factor:
    • 8"x8" (200mm x 200mm)
    • Weighs under 4.5 lb (2 kg)
  • Available in two models:
    • LitePad Vector CCT: tunable white color temperatures ranging from 3000K to 6000K
    • LitePad Vector Daylight: fixed color temperature at 6000
  • Excellent color rendering – up to 93 CRI
  • On-board dimming and color temperature controls
  • DMX controllable via RJ45
  • 100-240 VAC power supply
  • Compatible with industry-standard Anton/Bauer orV-Mount battery packs
  • Accessory/gel slot on the front of the unit

Rosco Laboratories Vector CCT Backpack Kit Specifications:

LED Fixture Power

  • Input Voltage:
    • 12VDC
    • AC Power Transformer
  • Power Supply: Universal 100-240VAC input/12VDC-24VDC output
  • Power Consumption:
    • 65W
    • DC Operation via standard Anton/Bauer or V-Mount batteries (owner supplied)

LED Fixture Physical Characteristics

  • Dimensions: 8.25” x 8.25” x 2.82” (210 mm x 210 mm x72 mm) (excluding Yoke)
  • Dimensions: 9.7” x 12.5” x 2.82” (246 mm x 318 mm x72 mm) (including Yoke & Receiver)
  • Weight: 4.5 lb (2 kg) (including Power Supply, Yoke & Receiver)

LED Fixture Optical Characteristics

  • Color Temperature Range:
    • LitePad Vector CCT: 3000K – 6000K
    • LitePad Vector Daylight: 6000K
  • Data: DMX 512 - RJ45 In/Out
  • Approvals:
    • TUV/UL1573 and 8750
    • CE
    • RoHS
    • IP61 Rated

Kit Specifications

  • Weight: 18 lbs. (8.2 kg)
  • Dimensions: 18.5" x 13" x 10" (47 x 33 x 25.4cm)
