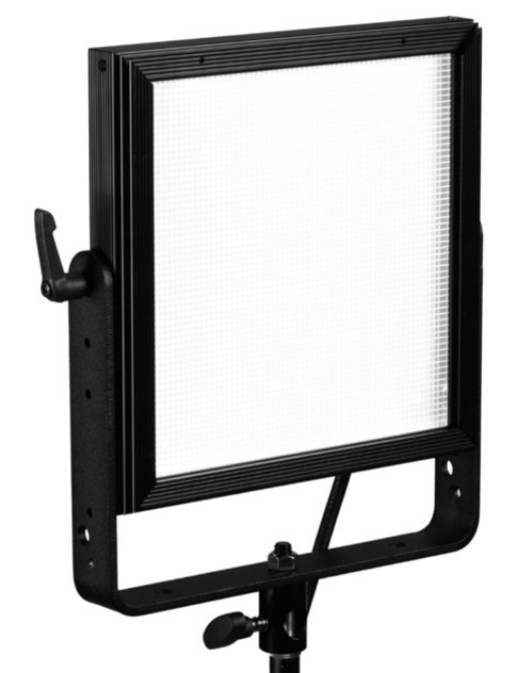

Rosco Laboratories LitePad Vector CCT LED Fixture
8"x8" Variable White LED in Black

OUR PART #  292000808120

Our Price: $1,067.63
List Price: $1,095.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Rosco's LitePad Vector™ is the light fixture designed for cinematographers, gaffers, videographers, lighting directors and photographers for on-location lighting. This version, the LitePad Vector CCT (also known as 292008080120) creates the same soft, even illumination that LitePad is known for, now with four times the output of its 12"x12" LitePad predecessors. With a tunable color temperature range of 3000K - 6000K, and its light-weight, compact form-factor LitePad Vector is the ideal lighting solution for location interviews, mobile documentaries and television/feature film productions. Thanks to its on-board dimming & color temperature controls, and its compatibility with standard Anton/Bauer or V-Mount battery packs, the LitePad Vector easily goes everywhere a flattering, soft light is needed.

Rosco LitePad Vector CCT LED Includes:

  • LitePad Vector CCT LED fixture with yoke and 100-240 VAC power supply
  • 5/8" (16mm) light stand receiver

Rosco LitePad Vector CCT LED Features:

  • 1500 lux at one meter @3000K
  • 1700 lux at one meter @ 6000K
  • Compact, light-weight form factor:
    • 8"x8" (200mm x 200mm)
    • Weighs under 4.5 lb (2 kg)
  • Available in two models:
    • LitePad Vector CCT: tunable white color temperatures ranging from 3000K to 6000K
    • Excellent color rendering – up to 93 CRI
  • On-board dimming and color temperature controls
  • DMX controllable via RJ45
  • 100-240 VAC power supply
  • Compatible with industry-standard Anton/Bauer or V-Mount battery packs
  • Accessory/gel slot on the front of the unit

Rosco LitePad Vector CCT LED Specifications:

  • Dimensions: 8.25” x 8.25” x 2.82” (210 mm x 210 mm x72 mm) (excluding Yoke)
  • Dimensions: 9.7” x 12.5” x 2.82” (246 mm x 318 mm x 72mm) (including Yoke & Receiver)
  • Weight: 4.5 lb (2 kg) (including Power Supply, Yoke & Receiver)


  • Input Voltage: 12VDC
  • Power Supply: Universal 100-240VAC input/12VDC-24VDC output
  • Power Consumption: 65W
  • Data: DMX 512 - RJ45 In/Out


  • Housing: Anodized Aluminum (Black)
  • Approvals:
    • TUV/UL1573 and 8750
    • CE
    • RoHS
    • IP61 Rated
