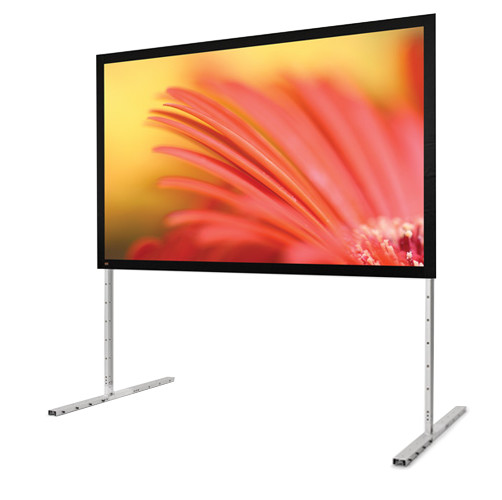

Draper 385050 81" x 144" FocalPoint Matt White Portable Projection Screen

The Draper 385050 is a HDTV-format FocalPoint® Portable Projection Screen with a Matt White viewing surface.

The FocalPoint® series is designed for standard and small venues, such as meeting rooms or breakout rooms. The FocalPoint® retains the modular frame construction that makes Draper’s StageScreen® so popular.

With small profile frame segments made of sturdy extruded aluminum, the FocalPoint is extremely rigid and durable, while remaining lightweight. With no hinges, the FocalPoint® is strong, and still features quick and easy assembly. All available sizes of FocalPoint are built from combinations of the same frame segments. Even the legs are constructed using these frame segments. The FocalPoint® ships complete with legs, frame, surface, carrying case and tarp.

AV rental dealers can improve their ROI while easily streamlining inventory with the FocalPoint. You can easily build multiple screen sizes from a common inventory of frame segments, only requiring you purchase separate viewing surfaces for different sizes.

The Draper M1300 viewing surface with a black backing for situations where ambient light behind the screen is an issue. Part of the Draper OptiFlex Family, it has a peak gain of 1.0., is easily cleaned with mild soap and water, and has achieved Greenguard® Gold certification.

OptiFlex surfaces are suitable for tensioning and are available on permanently tensioned screens, tab tensioned roller-operated screens, or both. Choose OptiFlex for the flattest front projection viewing surfaces.

Draper 385050 Features:

• Viewing surface attaches with Draper’s unique DuraLoop™ bungees and convenient nylon pull-tabs. The result is a perfectly flat self-centering viewing surface that attaches quickly and easily—with no snaps.
• Viewing surface includes a black border that extends past the edge of the frame, neatly hiding the DuraLoops and frame posts.
• Custom surfaces and sizes are available.
• Dress Kits are available (
• Dress Kits are available (sold separately), featuring Inherently Flame Retardant Velour. A FocalPoint Dress Kit consists of a skirt, valance, and a pair of side drapes. The skirt features simple attachment with convenient magnetic fasteners. Valance bars and drapery bars hook instantly onto the viewing surface posts, and drapes and valance attach with DuraLoops.
• Features Silver frame.
• Patent Pending.

Draper 385050 Specifications:

• Part number: 385050
• Surface material: Matt White XT1000VB
• Image Format: 16:9 HDTV
• Diagonal size: 165"
• Image/Viewable area: 81" x 144" (206cm x 366cm)
• Overall size: 92" x 152" (234cm x 386cm)
• Product weight: 130 lbs. (59 kg)
• Shipping weight: 161 lbs. (73 kg)

Optiflex Matt White XT1000VB Screen Surface Specifications:

• Tensioned Surface
• Flame Retardant: NFPA-701
• Composition: Flexible PVC
• Gain On Axis/0° Gain: 1
• Half Gain Angle: Material does not reach half gain
