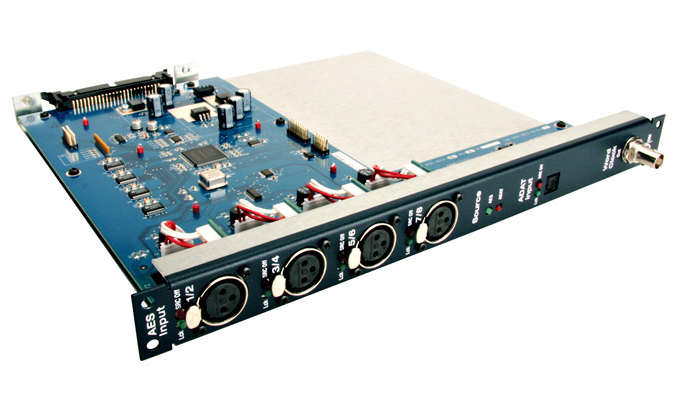

Avid DSI-192 Digital Input Card Digital Stage Input Card for VENUE Stage Rack with 8 Analog XLR Inputs

The DSI (Digital Stage Input) Card is an option for the Avid VENUE Stage Rack that adds eight channels of software-controlled and fully recallable digital inputs. Users get access to eight inputs either through the card's four two-channel AES/EBU XLR connectors or its ADAT TOSLINK optical connector. This allows for the expansion of either a D-Show or Profile System with additional digital inputs.

Users can install up to six DSI Cards into a single Stage Rack for a total of 48 digital input channels, or mix and match with other Stage Rack option cards to customize their input.

Avid DSI Card Features:

• Eight digital input channels through four two-channel AES/EBU XLR3-female connectors, or a single ADAT TOSLINK optical connector
• Word Clock Out connector for synchronizing external digital devices
• Automatic sample rate conversion (SRC) and detection on input
  • Manually defeatable for lowest possible input latency
• SRC status LEDs for both AES/EBU and ADAT connections
• Lock status LEDs for both AES/EBU and ADAT connections

Avid DSI Card Specifications:

• AES Digital Outputs
  • Connector (x4): XLR3-F
  • Format: AES 3 (AES/EBU)
  • Termination: 110 Ohm
  • Maximum Cable Length: 328 ft (100 m)
  • Word Length: 24-bit
  • Supported Sample Rate (with SRC): 323 kHz to 96 kHz per input pair (available globally for ADAT inputs)
• ADAT Digital Outputs
  • Connector: TOSLINK Optical
  • Format: ADAT, 8-channel
  • Word Length: 24-bit
  • Supported Sample Rate (with SRC): 44.1 kHz to 48 kHz (available globally)
  • Word Clock Out
  • Connector: BNC-F
  • Format: Word Clock Out
  • Source Impedance: 75 Ohm
  • Drive Level: 2.5V pk-pk into 75 Ohm load
