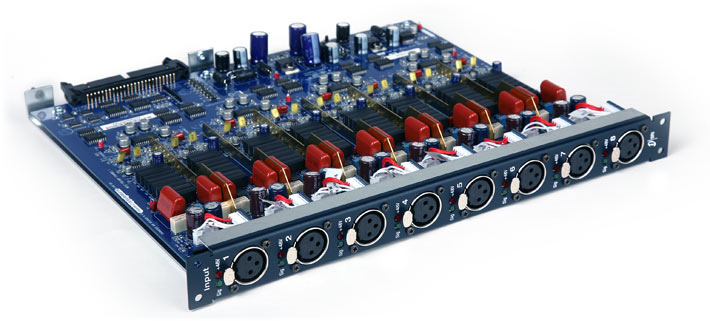

Avid SRI-192 Analog Input Card 8 Analog Mic/Line Inputs for VENUE Stage Rack

Expand your D-Show or Profile System with additional analog line intputs. The SRI (Stage Rack Input) Card is an option for the Stage Rack that adds eight channels of software-controlled, fully recallable analog mic/line inputs through XLR connectors.

You can install up to six SRI Cards into a single Stage Rack for a total of 48 analog line input channels, or mix and match with other Stage Rack option cards to customize your output.

The SRI (Stage Rack Input) Card is an option for the VENUE Stage Rack that provides eight channels of analog line outputs via XLR connectors for your Digidesign® VENUE system. You can install up to six SRI Cards into a single Stage Rack for a total of 48 analog line input channels, or mix and match with other Stage Rack option cards to customize your input.

Avid SRI Features:

• Eight channels of analog mic/line-level inputs through XLR3-female connectors
• 24-bit sigma-delta analog-to-digital (A/D) converters
• 20 dB pad (selectable per channel using VENUE software)
• 48V phantom power (selectable per chanel in VENUE software)
• Signal presence and phantom power LEDs
• Polarity invert (selectable per channel using VENUE software)

Avid SRI Specifications:

• Analog Mic/Line Intputs
  • Connector (x8): XLRF, balanced
  • Gain: +10 dB to +60 dB (6 dB analog steps, with 0.1 dB digital increments and crossfade at analog relay switch point)
  • Maximum Input Level: +34 dBu (pad ON)
  • Pad: 20 dB
  • Input Impedance: pad OFF: 10k Ohm balanced; pad ON; 4k Ohm balanced
  • Phantom Power: +48V
  • EIN: -126 dBu (maximum gain, 150 Ohm source, 22 Hz - 20 kHz BW, unweighted)
  • THD + N: 0.003% minimum gain, pad OFF, -1 dBFS output, 20 Hz - 20 kHz BW)
  • A/D Converter Latency: 0.25 ms (Fs = 48 kHz)

Note

NOTE: All measurements at Fs = 48 kHz, with 150 Ohm source impedance and 600 Ohm load impedance, unless otherwise specified. For more information on this and other products, please contact your Sales Representative.
