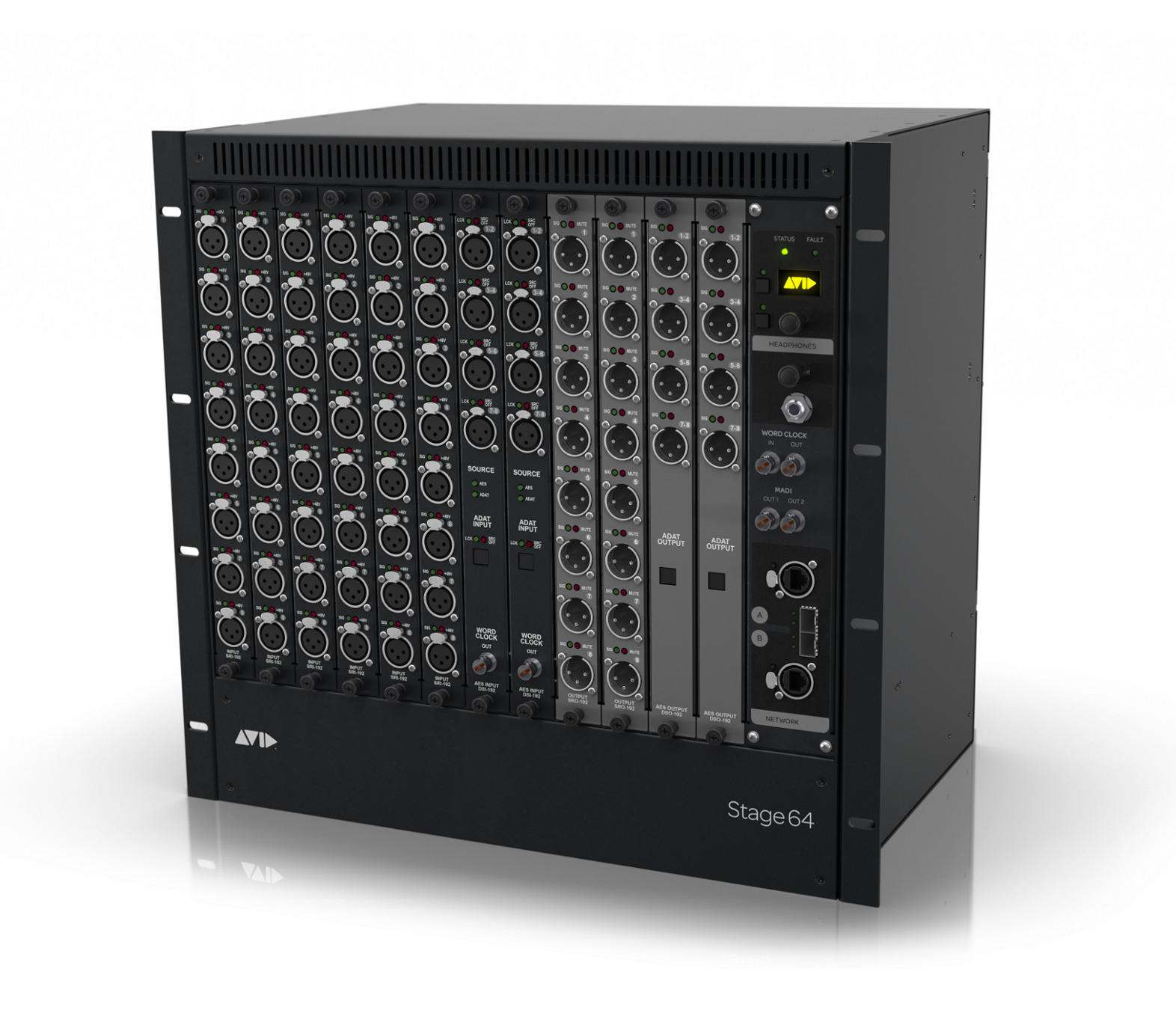

Avid VENUE Stage 64
Stage Box, 48x8

OUR PART #:  STAGE-64

Similar Products

Achieve pristine sound through high-performance I/O
Scale your system with as little or as much I/O as you need with Avid's VENUE Stage 64 rack, featuring a new high-performance preamp design that delivers the best possible sound quality throughout the signal path, with incredible clarity, warmth, and presence. Users can stock each Avid Stage 64 with up to 64 inputs and 32 outputs, selecting from a variety of analog and digital option cards. The Avid S6L control surface offers additional I/O, including 8x8 analog I/O, 8x8 AES I/O (4 pairs), two headphone outputs, and ancillary I/O such as MIDI and GPIO for added flexibility.

Configure your ideal system
With its modular, scalable system architecture, you can freely mix and match your choice of control surface, engine, and I/O to support practically any live sound application. Choose from three control surface configurations to meet your needs, and select the ideal E6L engine to support your channel count requirements. Ramp up your plug-in processing power by adding more HDX cards to your engine (up to a maximum of four), and go from a maximum 64 mic inputs with one Stage 64 rack up to hundreds of I/O channels by connecting additional boxes.

Stage 64 and I/O Options

Connect one or more Stage 64 racks - and even Stage 16 boxes - to meet your I/O needs. Each Stage 64 can be customized to support up to 64 inputs and 32 outputs, with a choice of the following options:

  • SRI-192 Analog Card: Provides analog mic/line inputs via XLR, with a new high-performance mic preamp design
  • SRO-192 Analog Output Card: Provides 8 analog line outputs via XLR
  • DSI-192 Digital Input Card: Provides 8 channels of digital AES/EBU or ADAT input
  • DSO-192 Digital Output Card: Provides 8 channels of digital AES/EBU and ADAT output
  • ANO A-Net Option Card: Provides 16 channels of Aviom integration (48 kHz operation only)
  • DNT-192 Dante Option Card:
    • Provides 16 channels of Dante networked audio, configurable as 16x0, 8x8, or 0x16
    • Supports 48/96/192 kHz operation
    • Offers redundant network connections

Avid Stage 64 Specifications:

  • Maximum I/O: 64 input channels, 32 output channels @ 48/96 kHz
  • I/O card slots: 12
  • Sample rates: 48/96 kHz
  • Ethernet AVB ports: 2, selectable as etherCON (copper) or SFP (fiber), with redundant ring topology
  • Maximumcable length:
    • Copper: 100 meters (328 feet)
    • Fiber: 500 meters (1,640 feet)
  • MADI: Dual MADI output offers direct split of all 64 inputs
  • Headphone confidence monitor:
    • 1/4" TRS stereo headphone jack with volume control
    • Display for channel selection
  • Word Clock I/O: BNC, 75 Ohm coaxial
  • Power supply: Dual redundant internal PSUs
  • Dimensions (H x W x D): 17.5 x 17 x 12.2 inches (445 x 432 x 310 mm)
  • Rack spaces: 10U
  • Weight: 86 lbs (39 kg)
