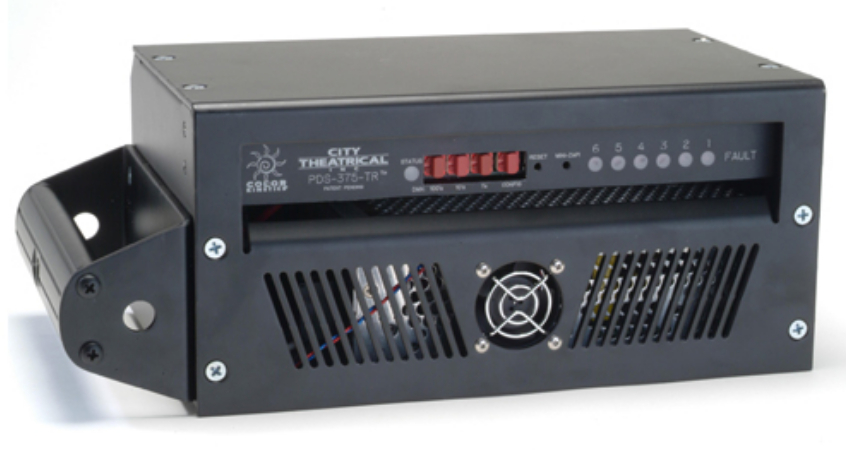

City Theatrical PDS-375 TR ColorBlast Power And Data Supply Image 1
City Theatrical PDS-375 TR ColorBlast Power And Data Supply
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

THE PDS-375-TR™ from City Theatrical is a Touring CB Power Supply that provides power and DMX control capability for up to 6 Color Kinetics ColorBlast 12® or 12 ColorBlast 6® luminaires (or other CK fixtures)*, while eliminating the need for field address programming with a Zapi™.

The PDS-375-TR™ is provided with standard entertainment industry hanging/mounting hardware configurations, and is ruggedly constructed and equipped for the temporary installations and harsh use conditions typical of standard entertainment industry rental applications.

City Theatrical PDS-375-TR Features:

  • A budget power/data supply
  • For up to six ColorBlast 12 or ColorBlast 12 TR, 12 ColorBlast 6
  • Industry standard four pin XLR connectors
  • Built-in Mini-Zapi function
  • Stand alone modes
  • DMX pass through mode
  • Carry handle/C-clamp mount

City Theatrical PDS-375-TR Specifications:

  • Catalog Number: 6250
  • Heavy Duty NEMA 1 Steel and Aluminum enclosure w/ built-in carrying handle
  • 100-240 VAC 50/60hz Mains Power (auto-ranging)
  • Mounting points for C-Clamp & Safety Cable
  • (6) 4P XLRF CK Data/24V Power output connectors for fixture connection
  • DMX 512 Interface (see below)
  • 1 x 600 Watt internal power supply
  • 24VDC 3A current limited per circuit output with LED Fault Indication
  • One-touch Mini-Zapi feature for reconfiguring fixtures with correct starting DMX Address
  • Includes 7 types of user-configurable fade and chase routines for stand-alone operation
  • In Stand-Alone Mode, selected routine is output to DMX Pass-Thru for synchronized Stand-Alone operation of many CB Supply systems
  • ETL/cETL Listed
  • CE Certified
  • RoHS Compliant
  • DMX 512 Interface:
    • DMX Input via 5P XLR Male
    • Isolated and repeated DMX Pass-Thru via 5P XLR Female
    • DMX Address interface utilizing 3 Rotary BCD Switches for DMX Addressconfiguration
  • CK Output Configuration:
    • 6 outputs providing Color Kinetics control protocol, +24VDC, and Ground
    • “CB Mode”: DMX converted to CK protocol and output selectively to each port as per BCD address setting (see below)
    • “Pass-Thru Mode”: All 512 DMX values converted to CK Protocol andoutput on all ports
  • Typical CB Operation:
    • 1. Pre-address all CB fixtures as DMX 001 (either as factory preset or using CB Supply’s Mini-Zapi feature, or CK Zapi)
    • 2. Plug up to 6 of those CB fixtures into outputs 1 – 6
    • 3. Connect the System to a DMX source via the DMX Input and connect power
    • 4. Set the system’s DMX Address to the desired starting address value AAA. The connected CB fixtures will respond as follows:
    • CB Fixture # 1 = DMX address AAA, AAA+1, AAA+2
    • CB Fixture # 2 = DMX address AAA+3, AAA+4, AAA+5 etc
  • Weight & Dimensions:
    • 8 Lbs., 13.00”W x 5.00”H x 6.75”D

NOTE:

*Fixtures Supported: ColorBlast 12, ColorBlast 6, ColorBurst 6®, ColorBurst 4®, iColor Cove® ColorSplash 2®
