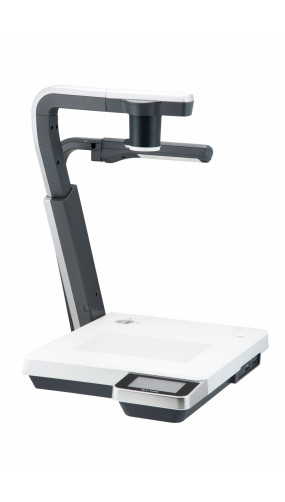

Elmo P100HD
HD Visual Presenter

OUR PART #:  P100HD

The ELMO P100HD Visual Presenter is more than just a document camera...
Learn More
Our Price: $4,432.00
List Price: $4,925.00
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Elmo P100HD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ELMO P100HD Visual Presenter is more than just a document camera, going further by featuring advanced technology such as a color touch panel and 1080p Full-HD as well as concepts to enhance a wide range of communications. The P100HD was designed with the goal of increasing the power to communicate and is the perfect presentation tool for all of your needs.  The P100HD is extremely versatile and designed for an extensive range of applications.

ELMO P100HD Features:

  • Quick Setup
    Quick setup facilitates a smooth start, enhancing the communication of your message. With only one action, the camera and light are ready, helping you to get your presentation off to a skilled, effortless start. You can also fold the P100HD up right away thanks to its compact size, allowing you to put it away, hassle-free, without interrupting your lesson or presentation.
  • Color Touch Panel Control
    ELMO's first document camera with a sleek, full color touch panel for smooth and total control. The P100HD's built-in touch screen LCD monitor means the presenter is always aware of what the audience can see and has the ability to accurately position their materials. What's more, the user friendly touch screen interface allows the key functions to be easily controlled at your fingertips.
  • Advanced 128x Zoom (16x Optical Zoom and 8x Digital Zoom) and Auto Focus
    Because the truly important things are often in the details, ELMO insisted on high magnification optical zoom in order to display all materials with maximum clarity. Our 128x zoom will become the industry standard. It will faithfully display, in high resolution, the details of a wide range of books and texts, as well as three-dimensional objects and special materials such as slide films. Moreover, it can display subjects of very small sizes without distorting their image. It can handle almost any kind of material without hassle. This paves the way to remarkable improvements in communication speed and understanding, thus broadening the reach of lessons and meetings. Of course, the P100HD is also equipped with One-Push Autofocus, which automatically, instantly, and smoothly determines and sets the right focus for a wide range of subjects.
  • CMOS Image Sensor
    With approximately 3,400,00 pixels, the CMOS Image Sensor, yields both high resolution and understanding, allowing you to provide convincing high image quality for your audience, many of whom have become accustomed to high-quality TV and PC display performance.
  • Save Presentations on External Memory
    Both video files (mp4) and still images (JPEG) can be saved on a USB flash drive or SD memory card for future use.  The saved image files can be displayed as individual files or as a slideshow without using a computer or other hardware.  The audio from the built-in microphone and the external audio input can be output from the audio lone output and the HDMI output.
  • Flexible Free-Arm Function
    With the flexible free-arm function, you can capture your subject from any angle. You can also project three-dimensional objects from effective angles, allowing you, for example, to display objects that are best viewed from the side, such as liquid-filled beakers. The flexible arm can even be positioned at lower points than other document cameras, allowing you to capture a much wider range of viewpoints than otherwise possible and broaden your repertoire of communication techniques.

  • Clear Text Mode
    Because many textual subjects are monochromatic manuscripts, the P100HD comes equipped with a text mode to accentuate the contrast between black and white and accent image quality. This facilitates clear reading of small text, as it enhances the capability to clearly reproduce letters.
  • High Definition Output- 1080p Full HD
    Explore the smallest details of 3D objects or enlarge fine print with unparalleled clarity and a total of 128x zoom. The P100HD also supports progressive scanning, which prevents on screen flickering and blurring for distraction free viewing.
  • Multi-Input Switcher
    The P100HD is equipped with two HDMI inputs and two RGB inputs for centralizing all technology to one convenient location and can be used as a switcher enabling the presenter to instantly change contents or even compare images from different devices. The audience can simultaneously view live images from the P100HD and a PC screen for more flexible presentations.
  • Send High-Resolution Images Via Networks
    The P100HD includes a LAN port to view live images using browser software. The FTP client feature enables still images to be stored on the FTP server, creating infinite possibilities and versatility for the visual presenter.
  • Flexible System Configuration
    The P100HD  is equipped with a built-in switcher function.  It can handle different image signals such as RGB and HDMI and control multiple devices.  By using the ELMO CRA-1 Wireless Tablet, you can annotate on live images captured by the P100HD, while the image is displayed on a large screen.  The CRA-1's wireless adapter can be plugged directly into the P100HD, allowing direct annotation on the live image from anywhere in the room without having to use a computer.
    *CRA-1 Wireless Tablet not included
  • Applications
    The P100HD can be used for a multitude of applications such as, a lecture or seminar, video conference, internal meeting, introducing products and demonstrations, inspection or quality control in production lines as well as a rental item for events and conferences.

Elmo P100HD Includes:

  • AC Adapter
  • AC Cord
  • RGB Cable
  • USB Cable (for connecting to PC)
  • Ethernet Cable
  • Remote Control with  AAA Batteries
  • Image Mate CD-ROM
  • Image Mate installation manual
  • Instruction Manual (CD-ROM)

Elmo P100HD Specifications:

Camera

  • Image pick-up device: 1/2.8" CMOS, Approx. 3,400,000 pixels
  • Total pixels: 2144 (H) x 1588 (V)
  • Effective pixels: SXGA output: 2096 (H) x 1561 (V)
  • Frame rate: 30 frames/sec.
  • Resolution - RGB output: 800 (H) x 800 (V) TV lines or more

Optics

  • Zoom: 16 x optical, 8x digital
  • Lens: F2.7, f=4.9 ~ 78.4 mm
  • Shooting area: SXGA: Max. 400 x 320mm
  • Focus: AUTO (Auto/Push/Trigger)/MANUAL
  • Iris: AUTO/MANUAL

Functions

  • White balance: Full-Auto/One-Push/Manual
  • Flicker Correction: Provided
  • 3D Noise Reduction: Provided
  • Output Resolution: 1080p FULL HD/720p/SXGA/WXGA/XGA
  • On Screen Display: Provided (Touch Panel Control)
  • Gamma/ Contrast/ Text: Provided
  • Image Save: Provided (SD memory Card/ SDHC Memory Card/ USB Flash Drive)
  • Movie Images Save: Provided (SD Memory Card/ SDHC Memory Card/ USB Flash Drive)
  • Rotation: Provided (180 degrees)
  • Pause: Provided
  • Positive/Negative Images: Provided
  • Color/Black and White: Provided
  • Scroll: Provided
  • Split Screen: Provided (Images from Camera/PC/Memory Stick)
  • Masking Feature: Provided
  • Highlight Feature: Provided
  • Annotation (PC Free): Provided (CRA-1 use)

Interface

  • Input Selection: Main/External x 4 (RGB x 2, HDMI x 2)
  • RGB Input Terminal: Mini D-sub 15-pin connector, female x 2
  • RGB Output Terminal: Mini D-sub 15-pin connector, female x 1
  • HDMI Output Terminal: Provided Type A x 1
  • HDMI Input Terminal: Provided Terminal Type A x 2
  • USB Device Terminal: USB Device (2.0 Compliant)
  • USB Host Terminal: Provided
  • Ethernet Terminal: Provided (Power On/Off Control)
  • Internet Microphone: Provided
  • Audio Input:
    • Mic In/Line In Terminal (shared) 3.5mm stereo minijack x 1
    • Line In Terminal 3.5mm stereo minijack x 2
  • Audio Output: Line Out terminal 3.5mm stereo minijack x 2
  • RS-232C: Provided (Power On/Off Control)
  • Upper Light: Provided White LED
  • Base Light: Provided White LED
  • Built in Monitor: Provided (Touch Panel Control)

Other

  • Power Consumption: 26.4W
  • Weight: 17 lbs.
