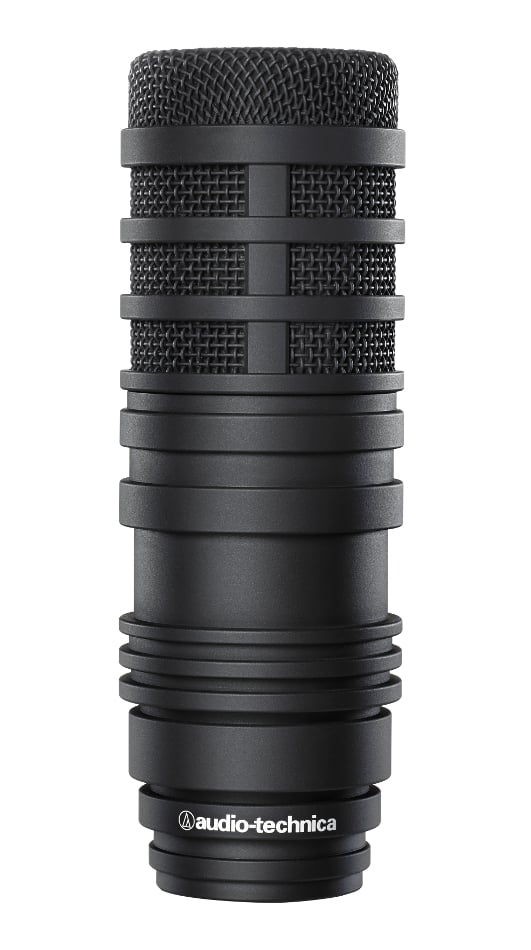

Audio-Technica BP40 Large-Diaphragm HyperCardioid Dynamic Broadcast Microphone

A large-diaphragm dynamic design offering condenser-like sound reproduction

Audio-Technica's BP40 is a broadcast vocal microphone that delivers a rich and natural, condenser-like sound emanating from a large-diaphragm dynamic design. This large diaphragm features patented floating-edge construction which maximizes diaphragm surface area and optimizes overall diaphragm performance, while the mic's humbucking voice coil prevents electromagnetic interference (EMI). Its Hypercardioid polar pattern provides maximum feedback rejection and isolation of the desired sound source.

Includes

• BP40 microphone
• T8483 mounting clamp for ⅝" 27-threaded stands
• ⅝"-27 to ⅜"-16 threaded adapter
• Soft protective pouch

Features

• Rich, natural, condenser-like sound
• Large-diameter diaphragm with patented floating-edge construction for optimal diaphragm performance
• Humbucking coil prevents EMI
• Hypercardioid polar pattern improves isolation
• Switchable 100Hz high-pass filter
• Superior off-axis rejection for maximum gain before feedback
• Optimized capsule placement for commanding vocal presence — even at a distance
• Multistage windscreen provides superior internal pop filtering
• Rugged, all-metal construction for dependable use in professional broadcast environments

Specifications

• Element: Dynamic
• Polar Pattern: Hypercardioid
• Frequency Response: 50Hz - 16kHz
• Open-Circuit Sensitivity: -48dB (3.9mV) re 1V @ 1Pa
• Impedance: 450Ω
• Switches: Flat, Roll-Off
• Weight: 22.3oz. (632g)
• Dimensions (L x Dia): 6.45" x 2.20" (164 x 56mm)
• Output Connector: Integral 3-pin XLRM-type
• Note: further information can be found within the items located under the "Documentation" tab above.
