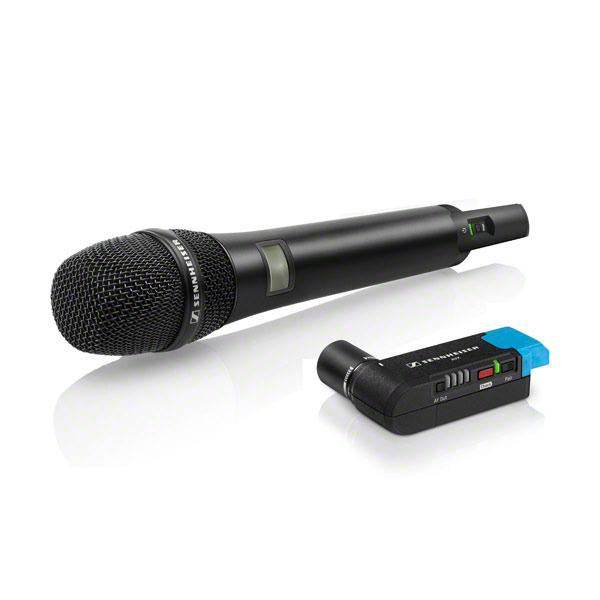

Sennheiser AVX-835 SET Wireless Handheld Microphone Transmitter and Plug On Receiver

Ideal for film projects and more, the plug-and-play AVX-835 SET from Sennheiser features a handheld mic transmitter unit with mute switch and included MMD835-1 dynamic cardioid capsule, the companion plug-on receiver, plus all accessories required to operate right out of the box with camcorders as well as DSLR cameras. Its self-configuring digital transmission eliminates time-consuming radio frequency setup. The ultra-compact receiver is designed to rotate around the XLR connector to avoid physical interference with other camera-mounted devices, and it automatically switches on and off with your camera, saving battery power. Additionally, AVX matches to your camera's input sensitivity with no need to adjust the microphone's audio level. For all your applications, the AVX just works - enabling you to concentrate on your creativity.

Applications

• Wedding videos
• Documentaries
• Street interviews
• Corporate videos
• More

Includes

• EKP AVX Plug-on receiver
• SKM AVX-S transmitter with mute switch + MMD 835-1 capsule (cardioid, dynamic)
• BA10 rechargeable battery
• BA20 rechargeable battery
• EKP AVX adapter
• NT5-10U power supply
• CI400 adapter cable
• Microphone stand clamp for handheld transmitter
• Pouch

Features

• Very fast setup
• Plugs directly into XLR audio input
• Ultra-compact receiver
• Switches on/off by P48V Phantom power
• Optimized dynamic range
• Auto frequency management
• AES256 encryption
• License-free
• Accessories included for DSLR use
• Metal housing
• Made in Germany

Specifications

• Audio Input: 3.5mm mini jack
• Audio Output: XLR
• Audio Output Level: -30dBu - 0dBu in 4 Steps
• Battery Specification: Li-Ion 3.7VDC
• Dynamic Range: > 120dB(A)
• Frequency Band: 1880 - 1930MHz (Country-specific)
• Frequency Response: 20Hz - 20kHz
• Modulation: GFSK
• Operating Temperature: -10°C to +55°C
• Operating Time:
  • > 4 hours (Receiver)
  • Up to 15 hours (Transmitter with Li-Ion energy pack)
• RF Output Power: Adaptive up to 250mW (peak) country-specific
• Sampling Rates: 24-bit / 48kHz
• Signal-to-Noise Ratio: > 90dB(A)
• Total Harmonic Distortion (THD): Typ. 0.1%
• Receiver Weight: 87g (including energy pack)
• Latency: 19ms
• Note: Further information can be found by referring to items located under the "Documentation" tab above.
