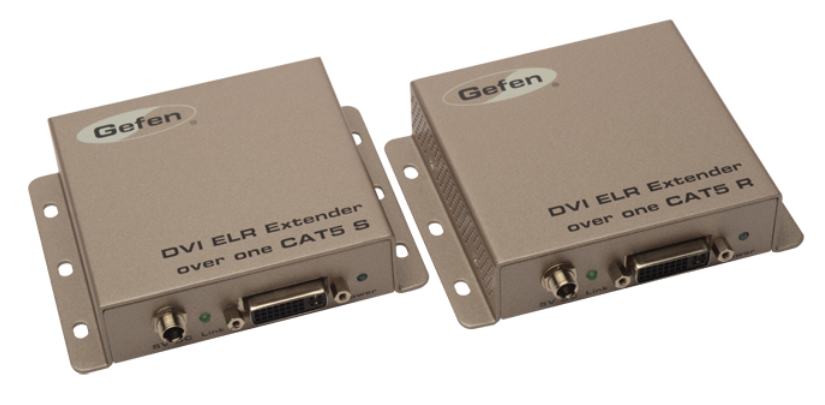

Gefen Inc EXT-DVI-1CAT5-ELR
DVI ELR Extender Over One CAT5

OUR PART #:  EXT-DVI-1CAT5-ELR

Gefen's DVI ELR Extender over one CAT5 allows the extension of a DVI source to a display, up to 495 feet (150 meters), using a single CAT-5e cable.
Learn More
Our Price: $823.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-DVI-1CAT5-ELR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Gefen's DVI ELR Extender over one CAT5 allows the extension of a DVI source to a display, up to 495 feet (150 meters), using a single CAT-5e cable. This product is capable of HDCP and HPD pass-through. It can also be configured by the installer via DIP switches for maximum range or maximum bandwidth, and for low power consumption (auto sleep mode) or always-on operation. The DVI Extender over one CAT5 uses Gefen's ELR implementation of HDBaseT™ technology, allowing the DVI signal to travel along a single CAT-5e or better cable, reducing cable costs and facilitating installation.

Gefen EXT-DVI-1CAT5-ELR Includes:

  • DVI ELR Extender over one CAT-5 (Sender)EXT-DVI-1CAT5-ELRS
  • DVI ELR Extender over one CAT-5 (Receiver)EXT-DVI-1CAT5-ELRR
  • Dual Link DVI Cable (CAB-DVIC-DLN-06MM)
  • Two 5V DC Locking Power Supplies (EXT-PS526AIP-LP)
  • Quick-Start Guide (QSG-EXT-DVI-1CAT5-ELR)

Gefen EXT-DVI-1CAT5-ELR Features:

  • Extends DVI up to 495 feet (150 meters) over one CAT-5e cable
  • Supports resolutions up to 1080p Full HD and 1920 x1200 (WUXGA)
  • EDID management for rapid integration of source and display
  • Enable/Disable switches for HPD pass-through
  • Power-Save (Green Mode) selector switch
  • 150m/100m range selector switch configures the extender for maximum range (150 meters) or maximum bandwidth
  • Locking power supplies
  • Surface-mountable

Gefen EXT-DVI-1CAT5-ELR Specifications:

  • Maximum Pixel Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI-I, 29-pin, female (digital only)
  • Video Output Connector (Receiver): (1) DVI-I, 29-pin, female (digital only)
  • Link Connector (Sender / Receiver): (1) RJ-45
  • Internal/External EDID Selector (Sender): (1) DIP switch
  • HPD Pass-Through Selector (Sender): (1) DIP switch
  • Power-Save Selector (Sender/Receiver): (1) DIP switch
  • 150m/100m Range Selector (Sender/Receiver): (1) DIP switch
  • Link Indicator (Sender/Receiver): (1) LED, green
  • Power Supply (Sender/Receiver): 5V DC
  • Power Consumption (Sender/Receiver): 10 W per unit maximum
  • Operating Temperature: 0 to +45°C
  • Operating Humidity: 0 to 90% RH, non-condensing
  • Dimensions (W x H x D): 4.3" x 1" x 3.4" (110mm x26mm x 86mm)
  • Shipping Weight: 3 lbs (1.4 kg)
