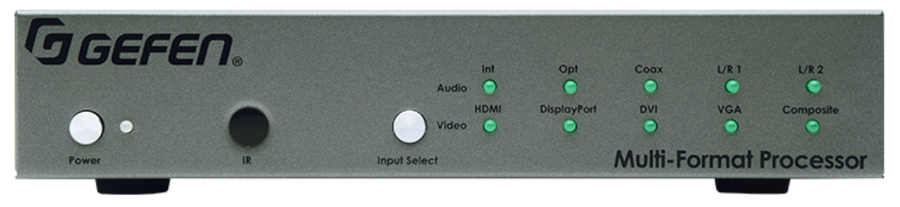

Gefen Inc EXT-MFP
Audio/Video Multi-Format Processor

OUR PART #:  EXT-MFP

The Gefen EXT-MFP Multi-Format Audio/Video Processor is a compact and powerful presentation switcher with cutting edge format conversion and scaling abilities.
Learn More
Our Price: $617.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-MFP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Gefen EXT-MFP Multi-Format Audio/Video Processor is a compact and powerful presentation switcher with cutting edge format conversion and scaling abilities. It supports input and output resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), with HDCP. Its unique features include an intuitive and elegant web server interface, an easy-to-use On Screen Display (OSD), IP (Telnet and UDP) control, RS-232 control, IR control, independently password-protected user and administrator access, advanced EDID management, a wide variety of video inputs including Mac and PC compatible DisplayPort, independent and configurable audio and video routing, input selection via contact closure, assignable input naming, and a compact form factor that can be surface or rack mounted, or placed on a shelf.

The EXT-MFP features full compatibility with the Gefen Syner-G™ software, including Discovery, Show-Me, and IP configuration. It is a complete and cost-effective solution for managing video and audio in classrooms, conference rooms, command centers, and as the backbone of any other high performance system that needs to interface with multiple sources, AV formats, and resolutions in a dynamic environment.

Includes:

  • (1) Multi-Format Processor (EXT-MFP)
  • (1) 6-pin Phoenix Plug (CON-PH-6P-M-GRN-AB)
  • (2) L- shaped Brackets for surface mounting
  • (4) Mounting Screws for L-shaped brackets
  • (2) Mounting Screws for EXT-RACK-1U-GRY
  • (4) Self-Adhesive Rubber Feet
  • (1) IR Remote Control (RMT-MFP)
  • (1) 12V DC Power Supply (EXT-PS121.5AIP-3P)
  • (1) Quick-Start Guide (QSG-EXT-MFP)

Gefen EXT-MFP Features:

  • Independent and configurable audio and video routing
  • Supports input and output resolutions up to 1080p Full HD & 1920 x 1200 (WUXGA)
  • HDCP compliant
  • HDMI, DisplayPort, DVI, VGA, and Composite Video inputs
  • DisplayPort input is compatible with Mac and PC computers
  • TOSLINK® optical digital, S/PDIF coaxial digital, and two analog L/R audio inputs
  • Each audio source can be independently assigned to any video source
  • Audio sources can be temporarily switched away from their assigned video sources
  • On-screen display (OSD) menu and web server interface allow easy set-up & control
  • IP control via Telnet, UDP, and web server interface
  • RS-232 Serial interface for use with an automation control system
  • Independent IR control of up to four units in proximity, using distinct command sets
  • Password-protected user and administrative access
  • Advanced EDID Management for rapid integration of sources and dispays
  • Assignable input naming
  • System Configuration Upload/Download function
  • Plug-and-Play installation with little to no set-up
  • Locking power supply connector
  • Rack-mountable using EXT-RACK-1U-GRY (available separately)
  • Surface-mountable using the included L-brackets

Gefen EXT-MFP Specifications:

  • Maximum Pixel Clock: 165 MHz
  • Maximum TMDS Clock: 225 MHz
  • Video Input Connectors:
  • (1) HDMI Type A 19-pin, female, locking
  • (1) DisplayPort, 20-pin, female
  • (1) DVI-I, 29-pin, female, digital only
  • (1) VGA HD-15, female
  • (1) Composite, RCA-type, female
  • Audio Input Connectors:
    • (2) 3.5mm mini-stereo jack
    • (1) TOSLINK® optical, female
    • (1) S/PDIF Coaxial, RCA-type, female
  • Video Output Connectors:
    • (1) HDMI Type A 19-pin, female, locking
    • (1) DVI-I, 29-pin, female, digital only
  • Audio Output Connectors: RCA x 2
  • USB Connector: (1) Mini-B (factory use only)
  • IR Sensor: (1) on front panel
  • IR Extender Port: (1) 3.5mm mini-stereo jack
  • IR Extender Type: EXT-RMT-EXTIRN
  • Input Selection Contact Closure Connector:
  • 6-pin Phoenix quick-disconnect
  • IP Port: (1) RJ-45 jack
  • RS-232 Port: (1) DB-9, female
  • Input Select Button: (1) tact-type
  • Power/Stand-by Button: (1) tact-type
  • Power/Standby Indicator: (1) bi-color LED, blue/red
  • Video Input Indicators: (5) LEDs, green
  • Audio Input Indictaors: (5) LEDs, green
  • Power Supply Connector: (1) 3-pin, locking
  • Power Supply: 12V DC
  • Power Consumption: 8.5W maximum
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 50000 hours
  • Dimensions (excluding buttons & connectors, W x H x D): 8.4" x 1.6" x 8.5" (213mm x 41mm x 216mm)
  • Net Unit Weight: 3.2 lbs (1.5 kg)
