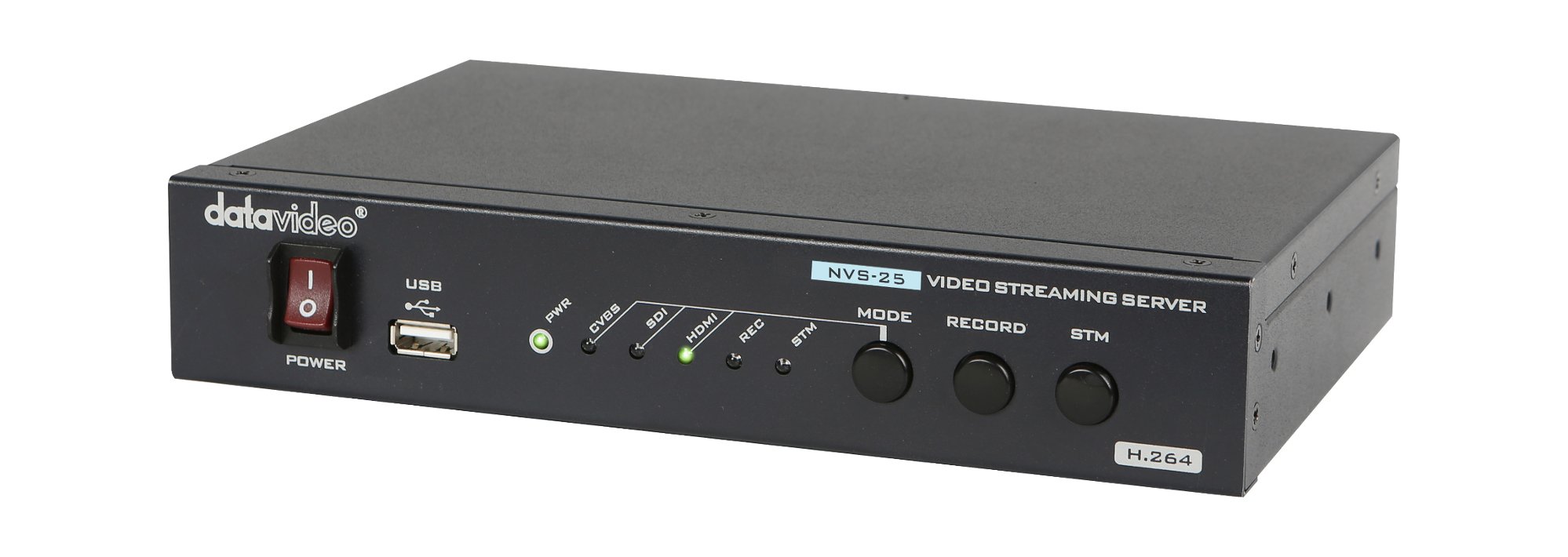

Datavideo Corporation NVS-25
H.264 Video Streaming Server / Recorder

OUR PART #:  NVS-25

Datavideo's NVS-25 is a small...
Learn More
Our Price: $799.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation NVS-25
Qty:
In Stock

Similar Products

Datavideo's NVS-25 is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing.

From any HDMI / SDI / CVBS input source such as a camera or switcher, NVS-25 generates an H.264-encoded stream compliant with RTSP / RTMP / HLS protocols. While encoding the video for live streaming, NVS-25 can simultaneously records a MP4 or .TS file to a USB storage device. The NVS-25 is remotely controlled using Windows / Apple PC or mobile device with a web browser. With its flexible mechanism design this model is ideal for desktop application or 1U rack mount application.

It's able to send live video directly to most major content delivery networks (CDNs), such as YouTube and UStream. These CDNs can then broadcast the video to computers, mobile devices, and smart TVs.

Datavideo NVS-25 Includes:

  • 1x NVS-25 unit
  • 1x AD Switch DC 12V
  • 1x NVS-25 CD (INCLUDING IP FINDER) with bag
  • 1x Thank You Card

Datavideo NVS-25 Features:

  • Broadcast quality HD / SD H.264 network streaming
  • H.264 / AVC video CODEC, up to High Profile Level 4.0
  • Input source: NVS-25 can accept SDI / HDMI / CVBS source input
  • Supports de-interlace video streaming for progressive output
  • Front panel control for recording and streaming
  • Audio inputs: select embedded or external audio source
  • Network feature: DHCP Client, RTSP over TCP/UDP/HTTP with MPEG TS. RTMP, HLS protocols (unicast only)
  • Flexible video scaler presets for streaming out
  • Supports 3 types of GOP structure: IBBP, IPPP and IBP
  • Web UI for system configuration and FW upgrade
  • Attach USB storage device (Up to 1TB storage device)

Datavideo NVS-25 Specifications:

  • I/O:
    • Video Inputs:
      • 1 x BNC for HD/SD-SDI (75 ohm)
      • 1 x BNC for CVBS (75 ohm)
      • 1 x HDMI (Ver 1.3)
    • Audio Inputs:
      • SDI embedded audio (2 channels)
      • 2 x XLR/RCA for Analog audio (2 channels)
      • HDMI embedded audio (2 channels)
    • Outputs:
      • 1x RJ-45 Female (10/100M Ethernet) 1x USB 2.0 Type A for file output to USB storage
  • Video Encode: H.264 / AVC video CODEC, up to High Profile Level 4.0 Configurable Bit-rate up to 6Mbps
  • Supported Video Resolution:
    • 1080 @ 50P / 59.94P / 60P
      (50P/59.94P/60P input, 25P/30P record/output)
    • 1080 @ 50i / 59.94i / 60i
    • 720 @ 50P / 59.94P / 60P
    • 576@ 50i, 480 @ 59.94i
  • Audio Encoding: AAC-LC audio CODEC Sample rate: 48KHz, 16-bit Configurable Bit-rate up to 384Kbps
  • Network Feature: DHCP Client Streaming feature: - HLS/RTSP/RTMP Server (One protocol at a time) - Supports up to 3 clients
  • Monitoring: 6 x LED (PWR/ CVBS/ SDI/ HDMI/ REC / Streaming)
  • Storage:
    • USB 2.0 Mass Storage File system: FAT32/MP4
  • Control: Web UI for system configuration and control
  • Update: Firmware upgradable by web UI
  • Power: Input AC 100 ~ 240V Switching Adapter
  • Environmental Conditions:
    • Operating temperature: 32° F ~ 122° F (0° C ~ 50° C)
    • Storage temperature: 14° F ~ 140° F (-10° C ~ 60° C
