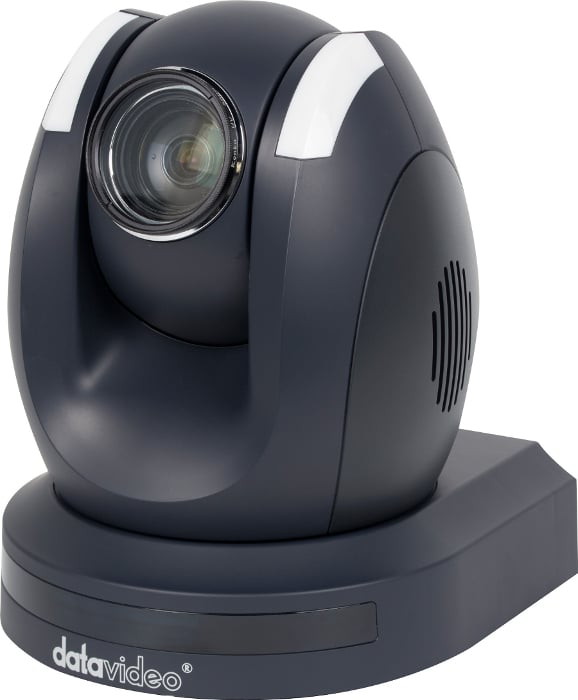

Datavideo Corporation PTC-150
HD/SD-SDI PTZ Video Camera - Black

OUR PART #:  PTC-150

Datavideo's PTC-150 HD PTZ video camera has a 22x optical zoom, can be mounted on a wall, ceiling, floor, or tabletop, and includes an IR remote control.
Learn More
Our Price: $2,499.00
Write the first review.
Datavideo Corporation PTC-150
In Stock
Related Products

Datavideo's PTC-150 HD PTZ video camera has a 22x optical zoom, can be mounted on a wall, ceiling, floor, or tabletop, and includes an IR remote control. This 1920 x 1080 resolution camera also features wide dynamic range with backlight compensation, and its image mirror and image rotation functions so you can electronically orient the image to adjust for the position in which the PTZ has been situated. It comes with 16 programmable position presets including pan, tilt and zoom positions, allowing the camera to quickly move between predetermined camera positions using the remote, or available PTZ controller. For multi-camera shoots, its onboard tally light can indicate when it is the active camera. In addition, it features a built-in IR cut filter for low light shooting, and supports real time position reporting by per frame, delivering useful information for virtual studio applications. It offers Sony VISCA protocol for PTZ control support, using RS-422 protocols via the unit's RJ-45 port.

Datavideo PTC-150 Features:

  • HD Resolution: 1/2.8" High Definition 2.0 MegaPixels progressive MOS sensor
  • 22x optical zoom (f=4.3 mm to 94.6 mm)
  • High definition formats supported: 1080/ 59.94p (4:1:1), 1080/ 50p (4:1:1), 1080/ 59.94i, 1080/ 29.97p, 1080/ 25p, 1080/ 50i, 720/ 59.94p, 720/ 50p
  • Standard definition formats supported: 480/ 59.94p, 480/ 59.94i, 576 / 50i
  • Dehazing technology allows the foggy or hazy images to be clear and sharp
  • Applied with Digital Noise Reduction Function (DNR) to reduce the noise and enable clearer image under low light conditions.
  • Position coordinate report by real time per frame
  • Video Output: HD-SDI + CVBS + HDMI synchronously
  • Tally LED Design (IR / RF Controller/ RS-422/ DVIP Operation)
  • Supports SONY VISCA Protocol Keyboard
  • Supports DVIP Control Protocol (F/W update to activate)

Datavideo PTC-150 Specifications:

  • Video format:
    • 1080p 60 /59.94 /50 /30 /29.97 /25 Hz
    • 1080i 60 /59.94 /50 Hz
    • 720p 60 /59.94 /50 Hz
    • 480i, 576i (on CVBS)
  • Image Sensor: 1/2.8 type MOS
  • Effective Pixels (approx.): 2 Megapixels
  • Minimum Illumination:
    • Color: 0.4 Lux
    • B/W: 0.03 Lux
  • Electronic Shutter: 1/1 ~ 1/16,000 sec
  • Zoom Ratio: 22x Optical zoom
  • Gamma: Yes, 4 modes
  • Iris Control: Auto / Manual
  • Digital Noise Reductions: Yes
  • White Balance: ATW / AWC / Manual (Adjustable R and B signals) Auto / Indoor / Outdoor / One-Push / Manual / Outdoor / Indoor / Fluorescent
  • AGC / Gain Control:
    • Low1 / Low2 / Low / Mid1 / Mid / High1 / High / OFF (Gain adjustable)
  • Mirror / Flip Image: Yes
  • Focus Mode: Auto / Manual / One-Push / STOP-AF
  • Panning/Tilting Range: Pan: 270° , Tilt: +90° to -20°
  • Panning/Tilting Speed: 1~150°/Sec
  • Preset: 50 Position
  • Field of View (Horzontal, Wide): 65.1°
  • Image Compensation: Dehazing, Day & Night function
  • Video Output:
    • 3G-SDI x 1
    • HDMI  x 1
    • CVBS x 1
  • Tally LED: Yes, dual color
  • Remote Control Interface: RS-422, DVIP (RJ45)
