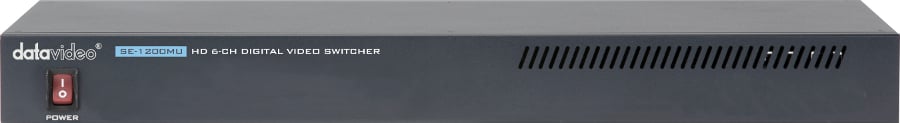

Datavideo Corporation SE-1200MU
6 Input Rackmount HD Digital Video Switcher

OUR PART #:  SE-1200MU

Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio...
Learn More
Our Price: $1,499.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation SE-1200MU
Qty:
In Stock

Similar Products

Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly. The SE-1200MU is a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.

The SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC and Android tablet / iPad / Mac with the included SE-1200 software control panel.

This model includes four SDI and two HDMI inputs with embedded audio and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations. Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.

Datavideo SE-1200MU Features:

  • 6 video inputs:
    • SDI x 4 + HDMI x 2
    • Frame Sync on each input
  • Flexible Mix/Effects Processor with:
    • 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
    • 2 DSK, supporting Linear & Luma Key Modes
    • 1 PIP (assignable to any of the 4 keyers
  • Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
  • Wipe, Mix & Cut Transitions
  • Full M/E Preview function
  • Any Input (1-6) can be used as a Frame store (Stills Store): Up to 24 images stored on SD Card
  • Assignable Outputs:
    • Each SDI output can be switched in the Menu as:
    • PROGRAM (w/ DSK)
    • Clean PROGRAM (w/o DSK)
    • Clean PREVIEW (w/o DSK)
    • MULTISCREEN
    • Input 1-6
  • XPT (Cross Point Assignment)
  • PC & Tablet control
  • Remote streaming of Multi view out using built-in Motion JPEG Streaming processor
  • Tally output
  • GPI output
  • 1U rack mount

Datavideo SE-1200MU Specifications:

  • Video Standard: HD
  • Video Format:
    • 1080i 50/59.94/60Hz
    • 720P 50/59.94/60H
  • Video Processing:
    • SDI: 4:2:2
    • HDMI: YUV 4:2:2, RGB 4:4:4
  • Input Routable / Crosspoint: Up to 6, not repeatable
  • Video Input:
    • 4x HD-SDI
    • 2x HDMI (RGB/YUV, 1080i/1080P/720P
  • Mix HD & SD source: N/A
  • Computer Graphic Interface: 2 via HDMI
  • Video output:
    • 2x HD-SDI
    • 2x HDMI
  • Assignable PGM(w/DSK 1&2), PGM(w/DSK 1), PGM Clean, PVW(w/o DSK), Multi-view, Input 1-6
  • Down-converted ouput: N/A
  • Built-in Multi-view monitoring out: HDMI & Ethernet (MJPEG)
  • Audio input: 2x Balanced XLR
  • Audio output: N/A
  • Embedded audio support: Both In & Out (SDI), up to 16 channels
  • Audio Delay Calibration: N/A
  • A+V switching: Yes
  • Chromakey: 2 Keyers
  • DSK: 2x DSK support Lumakey & Linear key (Key / Fill)
  • Picture in Picture: 1
  • Logo Insertion: Via DSK or Keyer
  • Still Store: 2
  • Effects: FTB, Cut, 32 Wipe with border
  • Transition Preview: Yes, Transition & Effect
  • Sync / Reference In/Out: N/A
