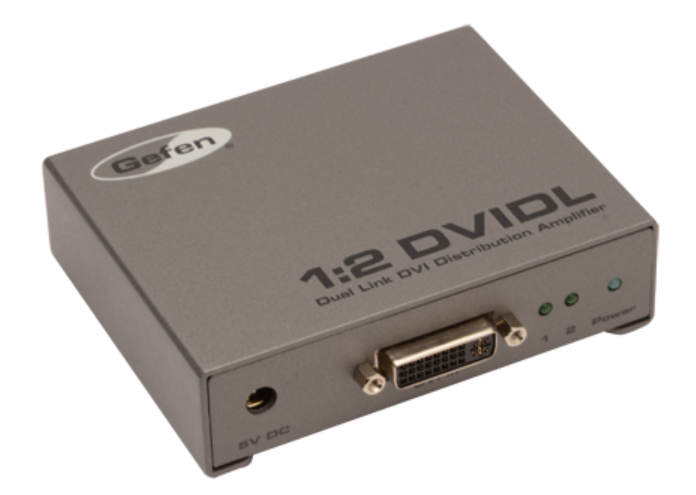

Gefen EXT-DVI-142DLN 1:2 Dual Link DVI Distribution Amplifier

The improved Dual Link 1:2 DVI DL Distribution Amplifier from Gefen splits video using a dual link DVI source such as a computer to two DVI dual link outputs such as monitors, without losing picture quality or the high resolution. Multiple 1:2 DVI DL units can be cascaded from one to the next to create a flexible Dual Link DVI distribution system that can connect to multiple displays.

Includes:

• (1) 1:2 Dual Link DVI Distribution Amplifier (EXT-DVI-142DLN)
• (1) 6 ft. Dual Link DVI Copper Cable (M - M) (CAB-DVIC-DL-06MM)
• (1) 5V DC Power Supply (EXT-PS526AIPN)
• (1) Quick-Start Guide (QSG-DVI-142DLN)

Gefen EXT-DVI-142DLN Features:

• Split a Dual Link DVI signal to two DVI Dual Link outputs
• Allows simultaneous display of source on two screens
• Supports Single Link DVI resolutions up to 1920 x 1200, and dual-link up to 3840 x 2400
• Auto EQ compensates for any imperfections in the image
• Power On indicator
• DVI Link indicators
• Supports DDWG standard for DVI-compliant monitors
• HDCP pass-through on output #1

Gefen EXT-DVI-142DLN Specifications:

• Maximum Pixel Clock: 2 x 165 MHz
• Video Input Connector: (1) DVI-D, 29-pin, female
• Video Output Connectors: (2) DVI-D, 29-pin, female
• Power On indicator: (1) LED, blue
• Link indicators: (2) LED, green
• Power Consumption: 5 W (max.)
• Power Supply: 5V DC
• Operating Temperature: 0 to +40°C
• Dimensions (W x H x D): 4" x 1.25" x 3.25" (102mm x 32mm x 83mm)
• Shipping Weight: 2 lbs (0.9 kg)
