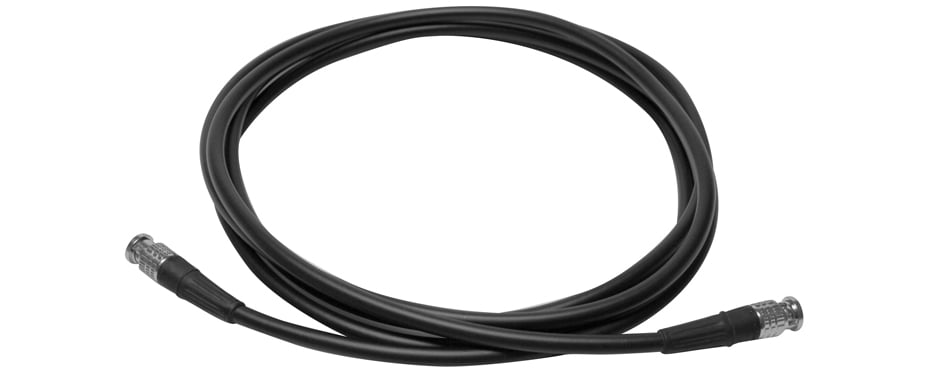

Canare HDSDI-003
3 ft HD-SDI Cable with L-5CFW Cable and BCP-B51F Connectors

OUR PART #:  HDSDI-003

This Canare HD-SDI cable is made from L-5CFW 75 Ohm flexible digital video coaxial cable and BCP-B51F 75 Ohm crimp plugs.
Learn More
Our Price: $18.36
List Price: $20.81
You save 12%!

5.0 / 5

★★★★★ 1 Review. Write Yours

Related Products

This Canare HD-SDI cable is made from L-5CFW 75 Ohm flexible digital video coaxial cable and BCP-B51F 75 Ohm crimp plugs.

Canare HDSDI-003 Features:

  • L-5CFW 75 Ohm Flexible Digital Video Coaxial Cable Features:
    • Solid Copper Center Conductor
    • Foam PE Dielectric
    • Dual Copper Braid for Flexibility
    • Precision Coax 100% Sweep Tested
  • BCP-B51F 75 Ohm Crimp Plug Features:
    • True 75 ohm construction Crimp Pin & Sleeve
    • High performance of 1.1 or less VSWR up to 3GHz.
    • Elongated Body for better finger grip
    • Position mark on body allows the connector fit to be checked easily.
    • Superior cable pull strength
    • Gold-plated center pins 'snap' into place
    • Connector Body has been die-cast, achieving a lower price with higher performance
    • Easy Assembly using Canare Strip & Crimp Tools

Canare HDSDI-003 Specifications:

  • L-5CFW Cable Mechanical Specifications:
    • Nominal O.D.: 0.303" (7.7 mm)
    • Conductor Material: Bare Copper
    • #18 AWG
    • Conductor O.D.: 0.041" (1.05 mm)
    • Dielectric Insulation Type*: Foam PE
      *Dielectric Strength = 1000V AC/1 min.
    • Insulation O.D.: 0.193" (4.9 mm)
    • Shield Material Coverage (mm/ends/carriers):
      • 0.12TA/7/24 (93% or more)
      • 0.12TA/9/24 (96% or more)
  • BCP-B51F Specifications:
    • Return Loss (0-3GHz): 26dB or greater
    • Pull Strength: 245N for L-4.5CHD, 1694A
    • Coupling Sleeve: Zinc Alloy Die Casting
    • Center Pin: Gold Plating
    • Weight: approx. 12.5g
